  Pioneer® Hyperformance™ 24,000 BTU 21
  SEER2 Ductless Mini Split Inverter++ Wi-Fi
  Enabled Air Conditioner Hyper Heat Pump
       Full Set 230V

Pioneer® Hyperformance™ 24,000 BTU 21 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V COMPLETE SET

The Pioneer® Hyperformance™ 24,000 BTU 21 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V brings unparalleled comfort to your home or office with superior cooling and heating capabilities. With its 24,000 BTU capacity and a high-efficiency 21 SEER2 rating, this system ensures exceptional performance year-round, offering powerful cooling in the summer and reliable heating during the colder months. Designed to keep your space at the perfect temperature, this system helps reduce energy consumption, saving you money on utility bills.

Equipped with advanced Inverter++ technology, the Hyperformance™ 24,000 BTU Mini Split adjusts its compressor speed to maintain an ideal climate while minimizing energy use. This system is also Wi-Fi enabled, giving you complete control over your home’s temperature from anywhere via your smartphone, making it easy to set up the perfect environment before you even walk in the door. The Hyper Heat Pump technology provides enhanced heating power, ensuring your space stays comfortable even in extreme winter conditions.

Energy-efficient and easy to install, the Pioneer® Hyperformance™ 24,000 BTU Mini Split is an ideal choice for those looking to upgrade their home or office with a modern, high-performance climate control system. With its full set, you’ll have everything you need to enjoy the benefits of energy savings and year-round comfort in one sleek, powerful package.

Features of Pioneer® Hyperformance™ 24,000 BTU 21 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V:

Technical Information

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity (BTU/hr): 24,000 (5,500 ~ 25,000)
  • Rated Power Input (Cooling): 1,920W
  • Rated Current (Cooling): 8.5A
  • Cooling SEER2: 21.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity (BTU/hr): 26,000 (6,000 ~ 27,000)
  • Rated Power Input (Heating): 2,500W
  • Rated Current (Heating): 11.2A
  • Heating HSPF2 (Region IV/V): 11.5 / 10.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.05 / 1.75 W/W
  • Refrigerant Type/Weight: R410A/2.1kg
  • Recommended Application Area: 500~1,000 Sq.Ft

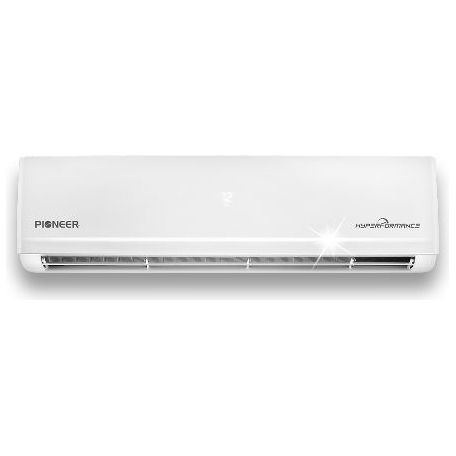

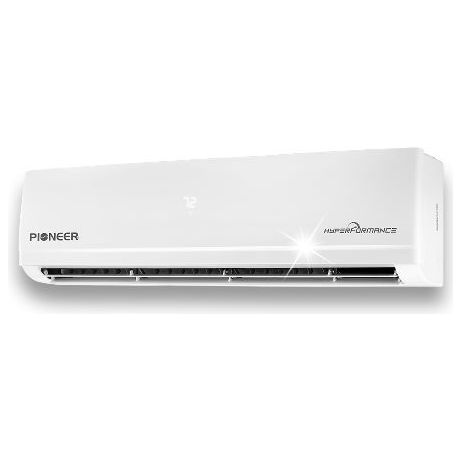

Indoor Unit DataPioneer® Hyperformance™ 24,000 BTU 21 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V SIDE VIEW

  • Part Number: WF024GHFI25HLH
  • Air Flow (Hi/Med/Lo): 706 / 647 / 559 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 53/50/47/45/42 dB(A)
  • Net Dimensions (WDH): 50-3/8 x 10-1/4 x 14-1/4 Inches
  • Carton Dimensions (WDH): 54-1/2 x 12-3/4 x 17-1/8 Inches
  • Net / Gross Weight: 40.1 / 50.3 Lbs

Outdoor Unit Data

  • Part Number: YN024GHFI25RPH
  • Sound Level: 61 dB(A)
  • Net Dimensions (WDH): 35-3/8 x 13-1/2 x 29-1/2 Inches
  • Carton Dimensions (WDH): 41-3/4 x 17-3/4 x 32-1/4 Inches
  • Net / Gross Weight: 132 / 140.8 lbs
  • Electrical Circuit Size: 20A (double-pole)

Manuals & Documents


  Pioneer® Hyperformance™ 24,000 BTU 21
  SEER2 Ductless Mini Split Inverter++ Wi-Fi
  Enabled Air Conditioner Hyper Heat Pump
         Full Set 230V

Summary

  • Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
  • Cooling capacity: 24,000 BTU/H (2 Ton) with 21 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 24,000 BTU/H (2 Ton) with 10.0 HSPF2 / 3.05 COP efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Hyper Heat Unit (Continues heating in -22°F weather)
  • Wireless Internet Access Included (Via Free Smartphone App)

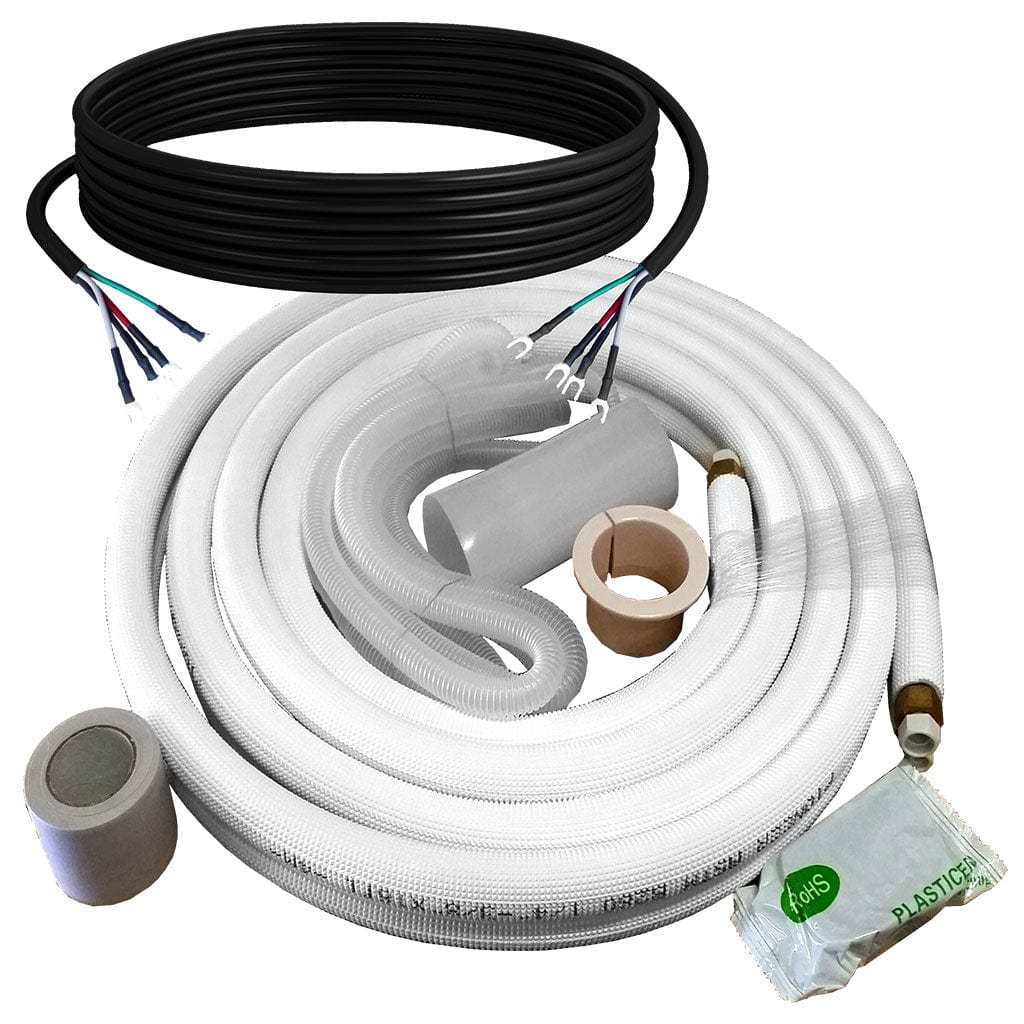

What's IncludedPioneer® Hyperformance™ 24,000 BTU 21 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V FRONT VIEW

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control (with wall holder and batteries)
  • Internet Control Module
  • Copper Lines*
  • Signal Cable Between Units*
  • Drain for Indoor/Outdoor*
  • Wall Passage Sleeve*
  • Putty for Wall Hole*
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

*If ordered with an installation kit

Our Guarantee

  • 5 years Warranty for Parts (Extendable to up to 7 years)
  • 5 years for Compressor (Extendable to up to 10 years)

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here
