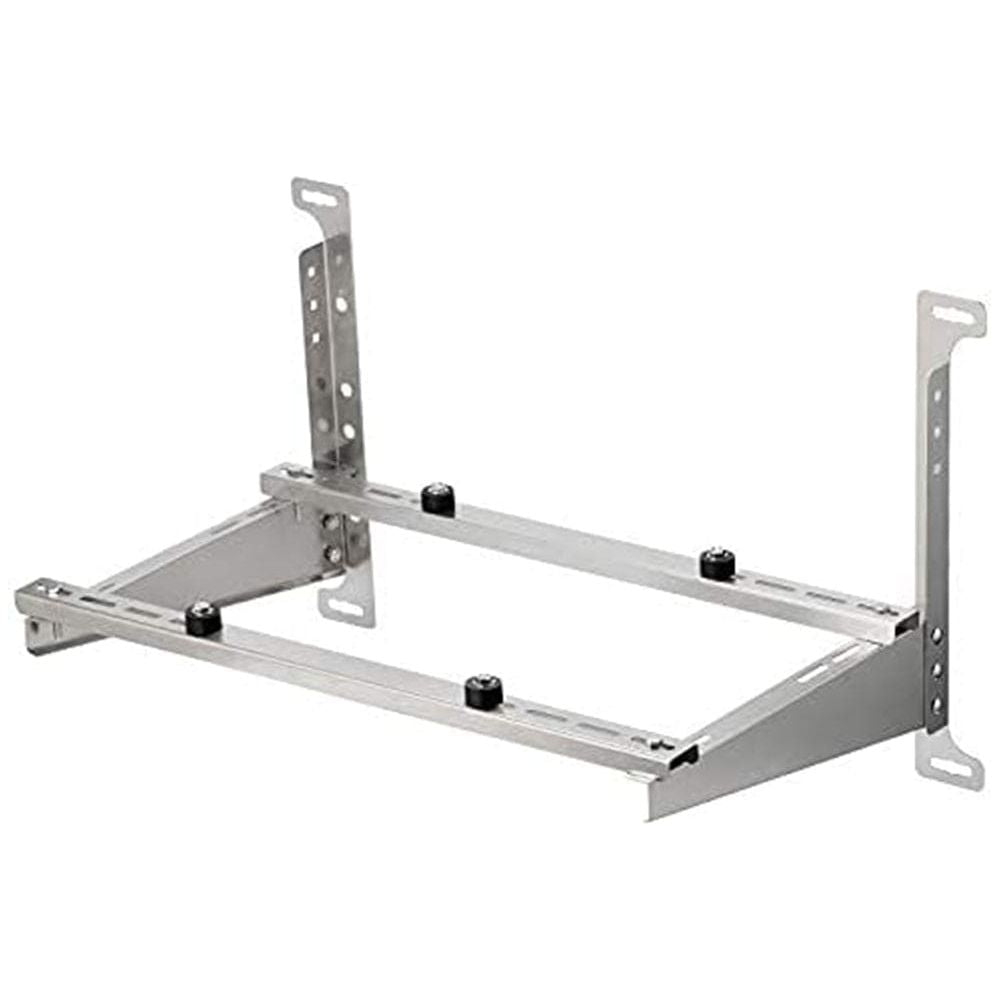

Wall Mounted Stainless Steel Bracket for Mini Spilt AC

by TURBRO
SKU
In stock, ready to ship now
$39.99

Notify me when back in stock

BUSINESS INFORMATION

We are available 9am-7pm EST, 7 days a week. You can reach us at 800 270 0086. We are also available via live chat, email support@ahomeselection.com

Location: 38 Niagara Falls Blvd, Buffalo New York 14214, United States

FREE EXPRESS SHIPPING

We process orders within 1 business day or less

Stress Free Returns

Quick & Easy Returns

price Beat Guarantee

We wont just match the price, well beat it!

2 Year Free Warranty

Free 2 Year warranty on all products

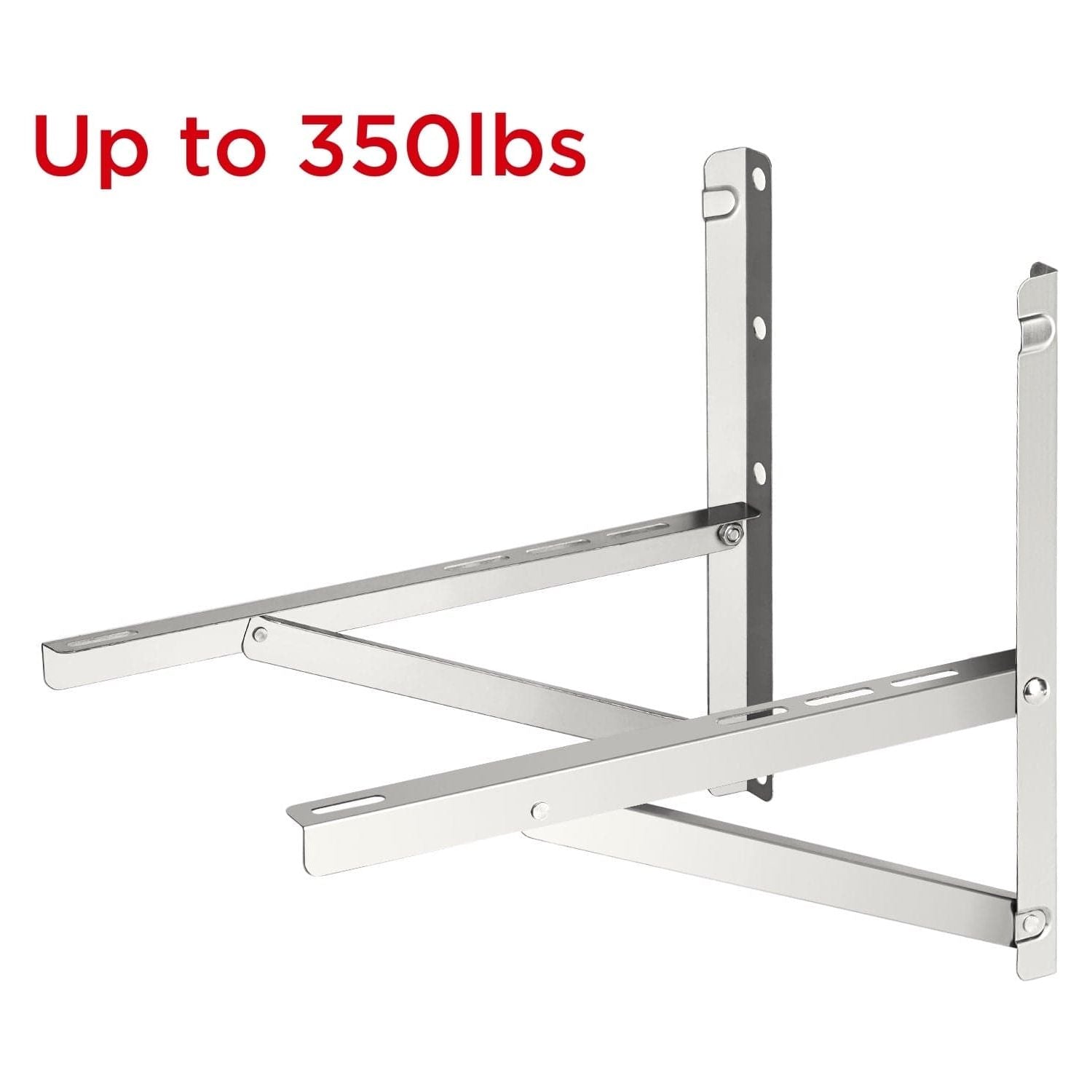

Up to 350 lbs

  • UNIVERSAL APPLICATION: The TURBRO wall mount bracket is adaptable for most outdoor mini split condenser units from 7,000-36,000 BTUs, with a weight limit of 350 pounds.

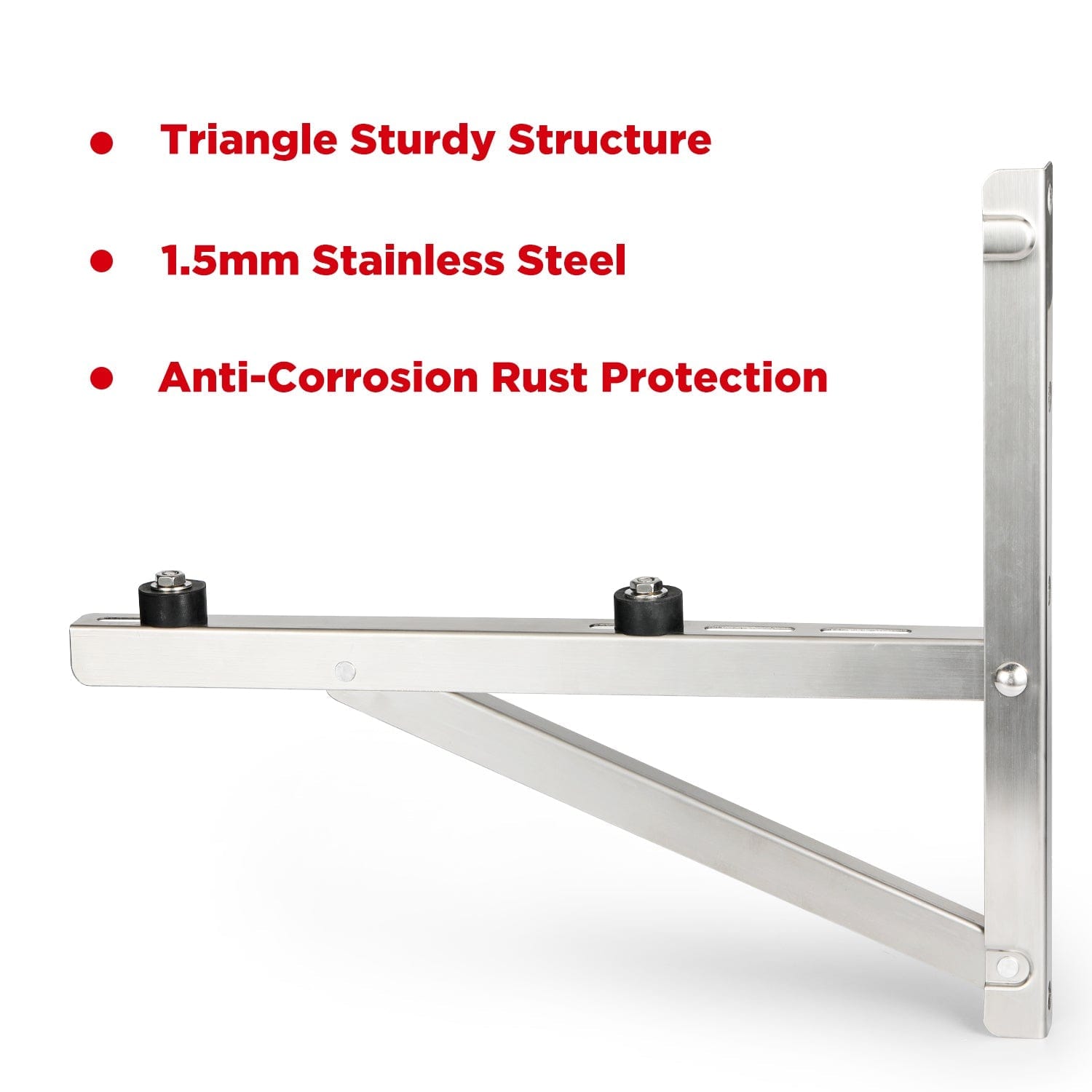

  • STURDY DESIGN: A specially-engineered triangle support structure increases the stability and sturdiness of the bracket so you never have to worry about your condenser falling and becoming damaged.
  • CONDENSER PROTECTION: A mini split condenser placed on the ground can be damaged by water, debris, or vandalism. Protect your condenser and keep your home cool by mounting your condenser off the ground with the TURBRO split AC wall-mounting bracket.

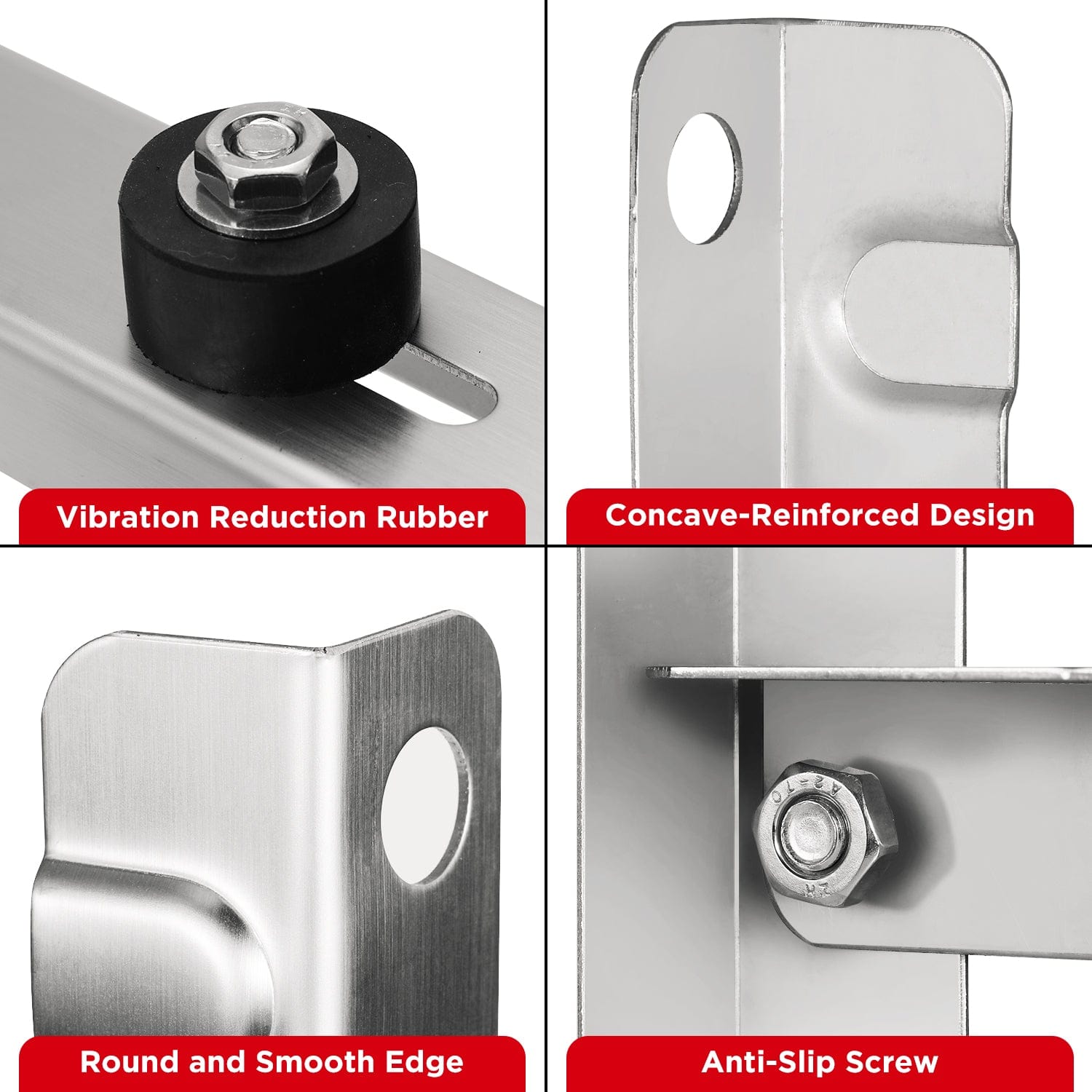

  • QUIETER OPERATION: We included 4 thick rubber pads to place under your condenser unit to reduce the vibration and noise from your mini split condenser. Simply place the pads below the condenser to instantly remove noise from your unit.

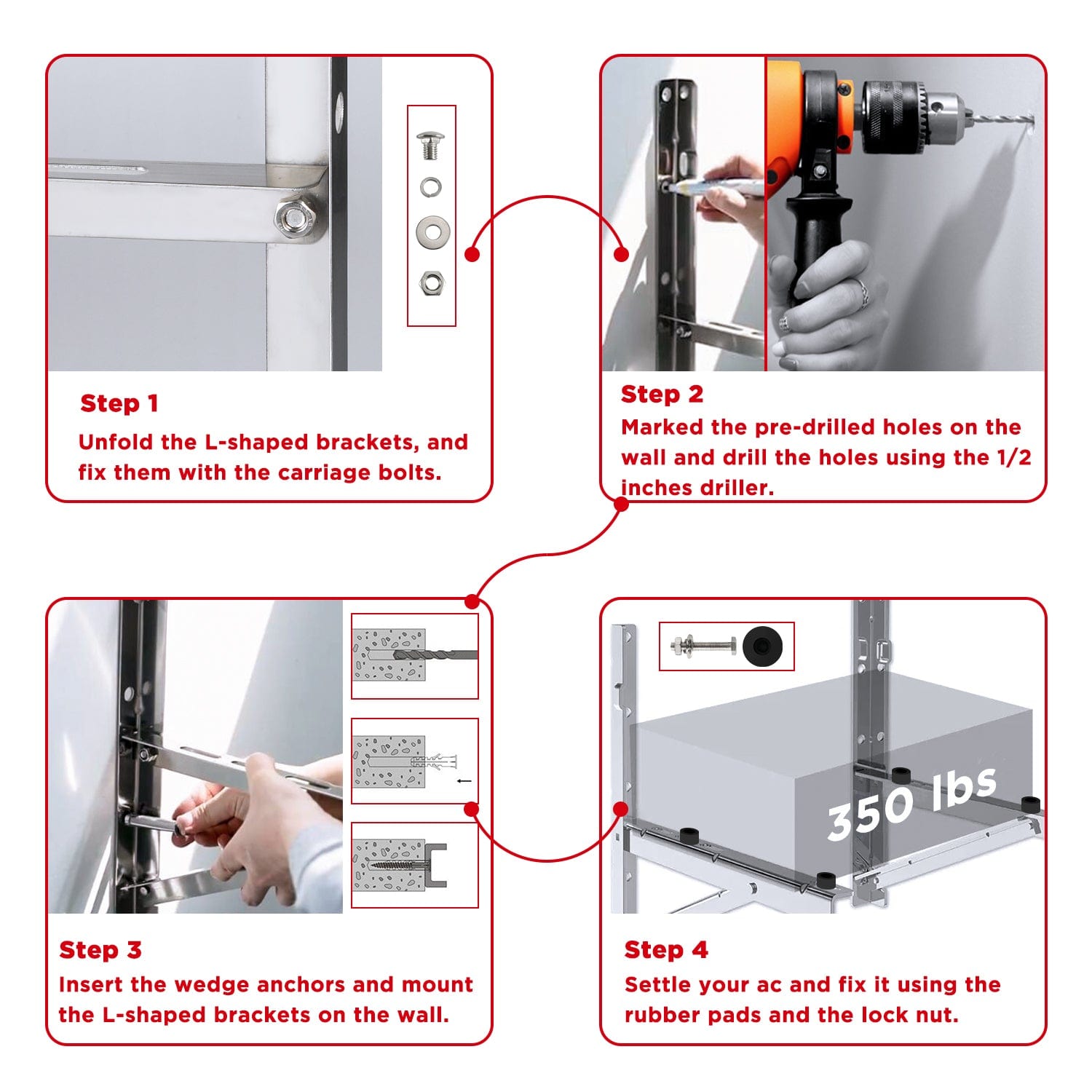

  • EASY INSTALL: All mounting and assembly hardware is included so you can get your bracket installed right away. If you have any questions about installation, please contact the TURBRO support team from the info listed in your package.

NOTE:

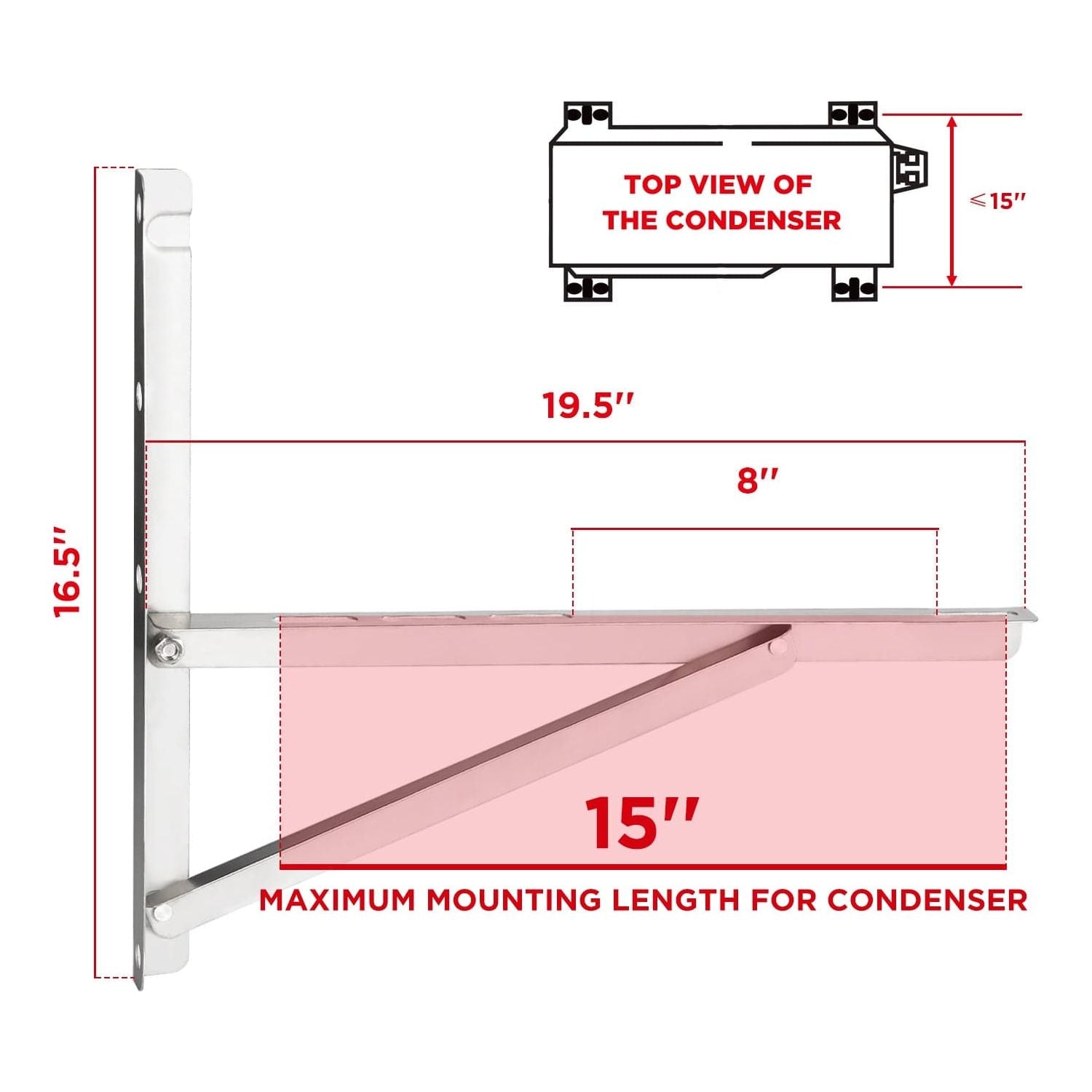

  • This bracket doesn't suitable for a heat pump with a width (from back to front) longer than 18''.

Specification:

  • Max. Load Weight: 350 lbs.
  • Support A/C BTU Ratings:24,000-36,000 BTU
  • Product Weight: 4.05 lbs.

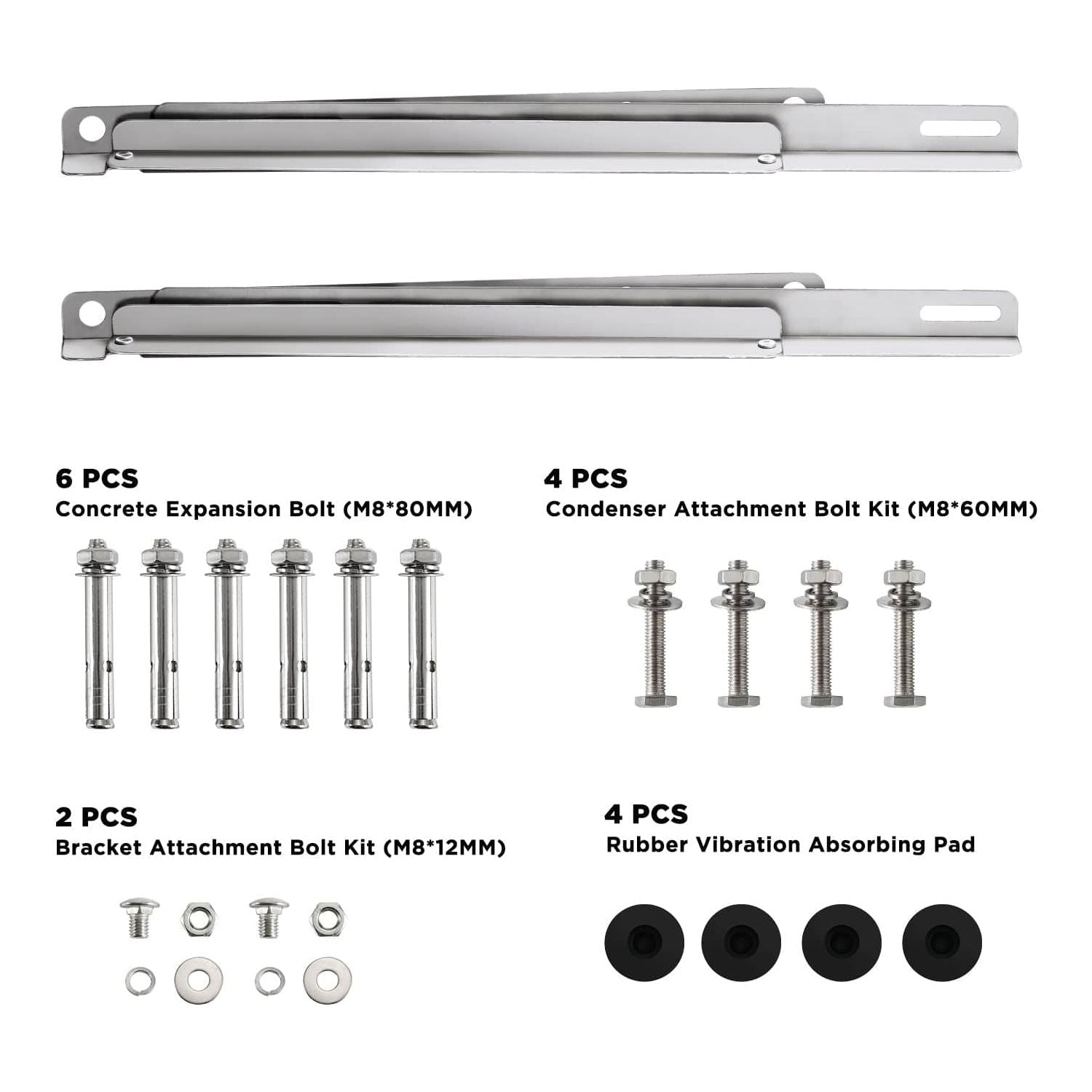

Package Includes:

  • U-shape WallBrackets (set of 2)
  • Triangle Side Panel(set of 2)
  • Cross-bars (set of 2)
  • Bracket Attachment Bolt Kits (set of 6)
  • Concrete Expansion Bolts (set of 6)
  • Condenser Attachment Bolt Kits (set of 8)
  • Rubber Vibration Absorbing Pads (set of 4)



Up to 550 lbs

  • UNIVERSAL APPLICATION: The TURBRO wall mount bracket is adaptable for most outdoor mini split condenser units from 7,000 - 36,000 BTUs, with a weight limit of 600 pounds.
  • STURDY DESIGN: A specially-engineered triangle support structure with dual cross-bars increases the stability and sturdiness of the bracket so you never have to worry about your condenser falling and becoming damaged.
  • CONDENSER PROTECTION: A mini split condenser placed on the ground can be damaged by water, debris, or vandalism. Protect your condenser and keep your home cool by mounting your condenser off the ground with the TURBRO split AC wall-mounting bracket.
  • QUIETER OPERATION: We included 4 thick rubber pads to place under your condenser unit to reduce the vibration and noise from your mini split condenser. Simply place the pads below the condenser to instantly remove noise from your unit.
  • EASY INSTALL: All mounting and assembly hardware is included so you can get your bracket installed right away. If you have any questions about installation, please contact the TURBRO support team from the info listed in your package.



NOTE:

  • This bracket does not suitable for a heat pump with a width (from back to front) longer than 18''.

Specification:

  • Max. Load Weight: 550 lbs.
  • Support A/C BTU Ratings:7,000-24,000 BTU
  • Product Weight: 10.36 lbs.

Package Includes:

  • U-shape Wall Brackets (set of 2)
  • Triangle Side Panel (set of 2)
  • Bracket Attachment Bolt Kits (set of 6)
  • Concrete Expansion Bolts (set of 6)
  • Condenser Attachment Bolt Kits (set of 8)
  • Rubber Vibration Absorbing Pads (set of 4)








ACS-550

ACS-460

ACS-740L

ACS-740L-A

Max. Load Weight

440 lbs

350 lbs

550 lbs

600 lbs

Support A/C BTU Ratings

7,000-24,000 BTU

7,000-18,000 BTU BTU

7,000-24,000 BTU

7,000-36,000 BTU

Fits for

Mini Split Ductless Air Conditioner Heat Pump System

Mini Split Ductless Air Conditioner Heat Pump System

Mini Split Ductless Air Conditioner Heat Pump System

Mini Split Ductless Air Conditioner Heat Pump System

Product Weight

4.00 lbs.

4.05 lbs.

10.36 lbs.

5.53 lbs.

Item Dimensions

21.6 x 15 x 9 inches

29.0 x 18.0 x 9.0 inches

29.6 x 5.6 x 2.2 inches

29.6 x 5.6 x 2.2 inches

Material

Aluminum

Stainless steel

Stainless steel

Aluminum
