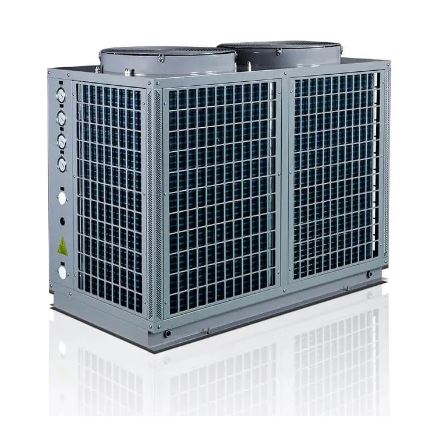

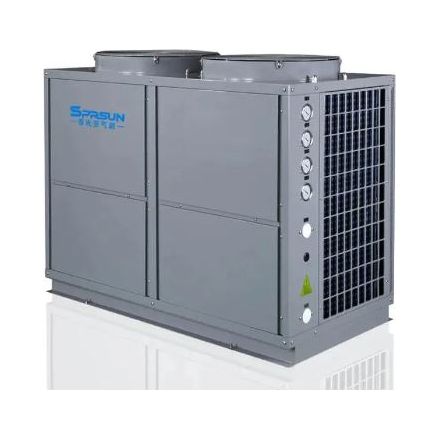

SPRSUN 40KW-60KW Commercial Air to Water Swimming Pool Heat pump for Pool Heating and Cooling
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/yongchi10P_1.webp?v=1724324690)
1. High Cop: 5.12/5.13 ![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/yongchi10P_2_1.webp?v=1724324690)
2. Max outlet water temperature: 40℃
3. Power Supply: 380V~415V/50Hz/3ph
4. Running temp: -10℃~45℃
5. Heating Capacity: 40KW/46KW/48KW/60KW
6. Cooling Capacity: 26KW/29.9KW/39KW
Features
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/yongchijilengnuanbanner860x580.webp?v=1724324961)
SPRSUN monoblock air source swimming pool heat pumps are designed for pool water heating and cooling with max outlet water temperature 40℃. They have the following important features:
-
Absorb heat from the air with high COP (up to 5.16);
-
Water heating and cooling mono-block type;
-
Constant pool water temperature (max 40℃);
-
Working air temperature range: -10℃ to 45℃;
-
Anti-corrosion with Titanium Tube-in-shell Heat Exchanger;
-
Automatic and forced defrosting function;
-
Guaranteed safety: water and electricity are isolated;
-
Save 65%-80% of the operating costs without pollution to the environment.
Specification
-
Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃, cool water temp: 27℃, hot water temp: 29℃.
Model |
|
CGY/D-36(HC) |
CGY/D-36(no cooling) |
CGY/D-42(HC) |
CGY/D-42(no cooling) |
CGY/D-52(HC) |
CGY/D-52(no cooling) |
Power Supply |
V |
380V~415V/50Hz/3ph |
Refrigerant |
|
R410A |
Heating Capacity(A24/W28) |
KW |
40.0 |
40.0 |
46.0 |
48 |
60.0 |
60.0 |
Input Power of Heating |
KW |
7.80 |
7.80 |
8.98 |
9.38 |
11.70 |
11.70 |
COP |
|
5.13 |
5.13 |
5.12 |
5.12 |
5.13 |
5.13 |
Cooling Capacity(A35/W28) |
KW |
26.0 |
/ |
29.9 |
/ |
39.0 |
/ |
Input Power of Cooling |
KW |
8.45 |
/ |
9.73 |
/ |
12.67 |
/ |
EER |
|
3.08 |
/ |
3.07 |
/ |
3.08 |
/ |
Rated Current |
A |
14.8 |
14.8 |
17.1 |
17.8 |
22.2 |
22.2 |
Max Current |
A |
20.7 |
250 |
23.9 |
250 |
31.1 |
800 |
Max Input Power |
KW |
10.9 |
/ |
12.6 |
/ |
16.4 |
/ |
Fan Motor Power |
W |
250 |
90 |
250 |
90 |
800 |
90 |
Fan Motor Quantity |
Piece |
2 |
2 |
2 |
2 |
2 |
2 |
Condenser |
|
Titanium Tube-in-shell Heat Exchanger |
|
Water Flow |
L/h |
13758 |
13758 |
15821 |
16509 |
20636 |
20636 |
Water Pressure Drop |
Kpa |
≤38 |
≤38 |
≤40 |
≤40 |
≤42 |
≤42 |
Net Weight |
kg |
250 |
250 |
286 |
286 |
325 |
325 |
Gross Weight |
kg |
268 |
268 |
306 |
306 |
345 |
345 |
Noise |
db |
65 |
65 |
66 |
66 |
68 |
68 |
Waterproof Classification |
|
IPX4 |
Electric Shock Proof Grade |
|
I |
Pipe Size (Internal Thread) |
mm |
63 |
63 |
63 |
63 |
75 |
75 |
Dimension |
mm |
1450*740*1150 |
1450*740*1150 |
1580*855*1200 |
1580*855*1200 |
1580*855*1200 |
1580*855*1200 |
Packing Dimension |
mm |
1540*820*1320 |
1540*820*1320 |
1700*950*1470 |
1700*950*1470 |
1700*950*1470 |
1700*950*1470 |
Compressor Model/Quantity |
|
ZW54KWP*2 |
ZW54KWP*2 |
ZW72KWP*2 |
ZW72KWP*2 |
Brand Component
Our air source swimming pool heat pumps use high quality components such as Copeland scroll compressor, Danfoss electronic expansion valve, SANHUA 4-way valve, etc.
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/shangyongyongchi_1.webp?v=1724323024)
Installation Diagram
It is easy to install SPRSUN air source swimming pool heat pump as below:
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/installati.webp?v=1724324164)
COP
SPRSUN air source swimming pool heat pump cop at different working conditions:
Air Temp ℃ |
Water Temp ℃ |
|
W28 |
-7 |
3.40 |
0 |
4.30 |
2 |
4.40 |
5 |
4.49 |
7 |
4.57 |
10 |
4.71 |
12 |
4.80 |
15 |
4.93 |
20 |
5.02 |
24 |
5.15 |
Workmanship
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/xijie_fube_2.webp?v=1724314313)
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/xijie_fube_3.webp?v=1724314313)
Economic Analysis
Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.
Item |
SPRSUN Heat Pump |
Solar Water Heater |
Gas Water Heater |
Electric Water Heater |
Heat source |
electicity |
solar+electricity |
natural gas |
liquefield gas |
electricity |
Heat Value |
860kcal/kw/h |
860kcal/kw/h |
9000kcal/m³ |
1080kcal/kg |
860kcal/kw/h |
Efficiency |
450% |
1/3 time use of electric heater |
90% |
85% |
90% |
Energy consumption per day |
2.07kw/h |
3.45kw/h |
0.99m³ |
0.87kg |
10.34kw/h |
Cost |
$0.11/kw.h |
$0.11/kw.h |
$0.42/m³ |
$1.1/kg |
$0.11/kw.h |
Cost per day |
$0.23 |
$0.38 |
$0.42 |
$0.96 |
$1.14 |
Annual cost |
$84 |
$139 |
$153 |
$350 |
$416 |
Model Series
Related models are as below:
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/yongchijixinghao_1.webp?v=1724324411)
