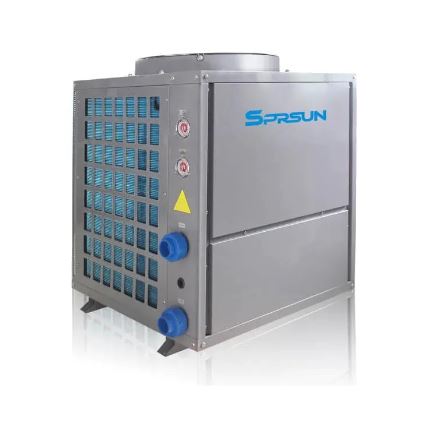

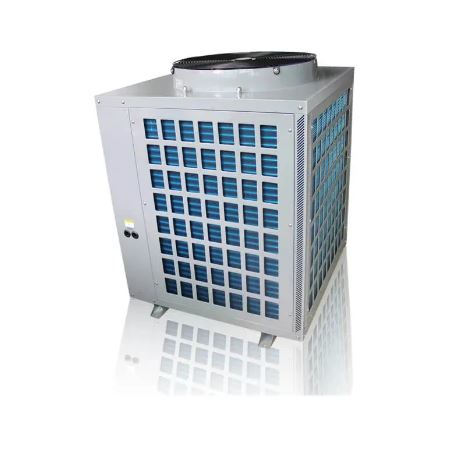

SPRSUN 10KW-26KW Monoblock Air Source Swimming Pool Heat pump for Water Heating and Cooling



1. High Cop: 5.10/5.11/5.12
2. Max Water Temp: 40℃
3. Power Supply: 220V-415V
4. Running temp: -10℃~45℃
5. Heating Capacity: 10KW/15KW/18.5KW/20KW/26KW
6. Cooling Capacity: 6.5KW/9.75KW/12.03KW/13KW/16.90







SPRSUN monoblock air source swimming pool heat pumps are designed for pool water heating and cooling with max outlet water temperature 40℃. They have the following important features:



  • Water heating and cooling mono-block type;

  • Constant pool water temperature (max 40℃);

  • Working air temperature range: -10℃ to 45℃;

  • Anti-corrosion with Titanium Tube-in-shell Heat Exchanger;

  • Automatic and forced defrosting function;

  • Multiple protections with timer function

Specifications

  • Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃, cool water temp: 27℃, hot water temp: 29℃.



Model
CGY/D-9(HC)
Hot & Cooling		 CGY/D-12(HC)
Hot & Cooling		 CGY/D-18(HC)
Hot & Cooling		 CGY/D-9
(No Cooling)		 CGY/D-12
(No Cooling)		 CGY/D-18
(No Cooling)		 CGY/D-12
(No Cooling)		 CGY/D-18
(No Cooling)		 CGY/D-22
(No Cooling)
Power Supply V 220V～240V/50Hz/1ph 220-240V/50Hz/1ph 380-415V/50Hz/3ph
Refrigerant
R410A
Heating Capacity（A24/W28） KW 10 15 18.5 10 15 18.5 15 20 26
Input Power of Heating KW 1.95 2.94 3.61 1.95 2.94 3.61 2.93 3.91 5.1
COP
5.12 5.11 5.12 5.12 5.11 5.12 5.12 5.11 5.1
Cooling Capacity（A35/W28） KW 6.5 9.75 12.03 / / / / / /
Input Power of Cooling KW 2.12 3.18 3.91 / / / / / /
EER
3.07 3.07 3.07 / / / / / /
Rated Current A 9.3 14 17.3 9.3 14 17.3 5.6 7.4 9.7
Max Current A 13.1 19.7 24.2 13.1 19.7 24.2 7.8 10.4 13.6
Max Input Power KW 2.7 4.1 5.1





Fan Motor Power W 90 90 90 90 90 90 90 90 90
Fan Motor Quantity Piece 1 1 1 1 1 1 1 1 1
Condenser
Titanium Tube-in-shell Heat Exchanger
Water Flow L/h 3439 5159 6363 3439 5159 6363 5159 6879 8942
Water Pressure Drop Kpa ≤20 ≤23 ≤25 ≤20 ≤23 ≤25 ≤28 ≤35 ≤36
Net Weight kg 95 100 140 95 100 140 100 140 148
Gross Weight kg 101 106 150 101 106 150 106 150 158
Noise db 54 54 58 54 54 58 54 58 58
Waterproof Classification
IPX4
Electric Shock Proof Grade
I
Pipe Size (Internal Thread) mm 50 50 50 50 50 50 50 50 50
Dimension mm 710*710*925 710*710*925 810*810*1055 710*710*925 810*810*1055 710*710*925 810*810*1055
Packing Dimension mm 780*780*1075 780*780*1075 890*890*1205 780*780*1075 890*890*1205 780*780*1075 890*890*1205
Compressor Model/Quantity
ZW28KWP*1 ZW42KWP*1 ZW51KWP*1





  The information in this document is just for reference. Since the continuous improvement and control in the production process, the information contained in this document may be subject to change. Please refer to the nameplate on the machine for model specifications.

Brand Component

Our air source swimming pool heat pumps use high quality components such as Copeland scroll compressor, Danfoss electronic expansion valve, SANHUA 4-way valve, etc.

Installation Diagram

It is easy to install SPRSUN air source swimming pool heat pump as below:

COP

SPRSUN air source swimming pool heat pump cop at different working conditions:



Air Temp ℃                                                 Water Temp ℃

W28
-7 3.40
0 4.30
2 4.40
5 4.49
7 4.57
10 4.71
12 4.80
15 4.93
20 5.02
24 5.15



Workmanship

We care every detail on what you need!



Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve welding protection

Energy Saving: 30mm thickness for insulation to prevent energy lost

User-friendly Design: Ram design using machine wire

Reliability of the Connection: Adopt automatic stamping machine from Taiwan

Economic Analysis

Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.

Item SPRSUN Heat Pump Solar Water Heater          Gas Water Heater Electric Water Heater
Heat source electicity solar+electricity natural gas liquefield gas electricity
Heat Value 860kcal/kw/h 860kcal/kw/h 9000kcal/m³ 1080kcal/kg 860kcal/kw/h
Efficiency 450% 1/3 time use of electric heater 90% 85% 90%
Energy consumption per day 2.07kw/h 3.45kw/h 0.99m³ 0.87kg 10.34kw/h
Cost $0.11/kw.h $0.11/kw.h $0.42/m³ $1.1/kg $0.11/kw.h
Cost per day $0.23 $0.38 $0.42 $0.96 $1.14
Annual cost $84 $139 $153 $350 $416



Model Series

Related models are as below:
