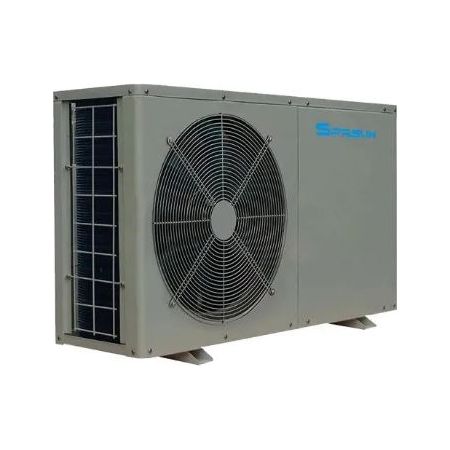

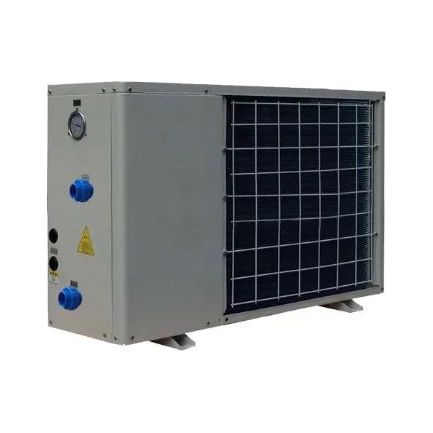

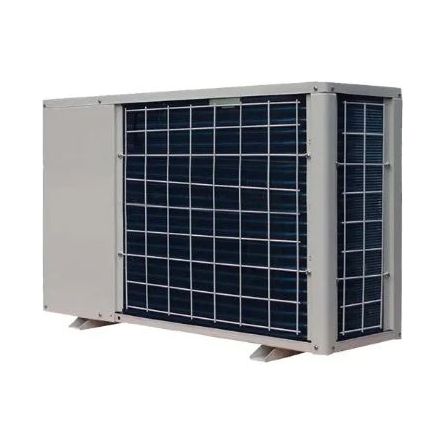

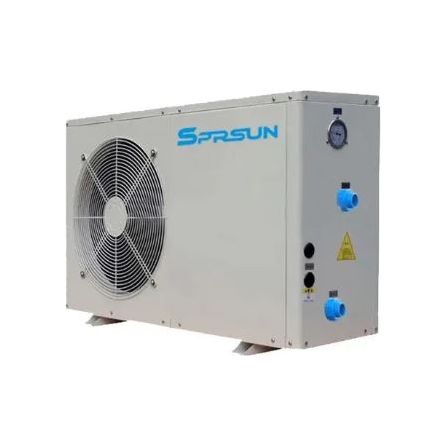

SPRSUN 4.2-9.5KW Air Source Swimming Pool Heat Pump Water Heater
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/housepoolheater2.webp?v=1724333762)
1. COP: 5.08/5.09/5.10; ![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/housepoolheater1.webp?v=1724333765)
2. Working air temperature: -10℃ to 45℃;
3. Max outlet water temperature: 45℃;
4. Heating capacity: 4.2/5.5/8.2/9.5KW;
5. Refrigerant: R410A
Features
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/01.webp?v=1724333891)
SPRSUN Side Discharge Swimming Pool Air Source Heat Pumps are designed for household pool water heating. They have the following important features:
-
Constant pool water temperature;
-
Absorb heat from the air with high COP (up to 5.10);
-
Automatic control of pool water temperature;
-
Guaranteed safety: water and electricity are isolated;
- Save 65%-80% of the operating costs without pollution to the environment.
Specification
Model |
|
CGY/C-3.5 |
CGY/C-5.5 |
CGY/C-7 |
CGY/C-9 |
Power Supply |
V |
220-240V/50Hz/1ph |
Refrigerant |
|
R410A |
Heating Capacity |
KW |
4.2 |
5.5 |
8.2 |
9.5 |
Input Power |
KW |
0.8 |
1.1 |
1.6 |
1.9 |
COP |
|
5.10 |
5.08 |
5.09 |
5.08 |
Rated Current |
A |
3.9 |
5.2 |
7.7 |
8.9 |
Fan Motor Power |
W |
30 |
30 |
40 |
50 |
Fan Motor Quantity |
Piece |
1 |
1 |
1 |
1 |
Condenser |
|
Titanium Tube in Shell Heat Exchanger |
Water Flow |
L/h |
1445 |
1892 |
2820 |
3267 |
Water Pressure Drop |
Kpa |
≤25
|
≤27 |
≤28 |
≤30 |
Net Weight |
kg |
43 |
48 |
53 |
60 |
Gross Weight |
kg |
45 |
50 |
55 |
58 |
Noise |
db |
45 |
45 |
48 |
49 |
Waterproof Grade |
|
IPX4 |
Electric Shock Proof Grade |
|
I |
Pipe Size (Internal Thread) |
mm |
50 |
50 |
50 |
50 |
Dimension |
mm |
970*300*550 |
1006*350*618 |
Packing Dimension |
mm |
1040*330*580 |
1050*390*640 |
Brand Component
Our heat pumps use high quality components, such as Copeland scroll compressor, Danfoss Electronic expansion valve and Eaton AC contactor and thermal relay, etc.
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/high-mater.webp?v=1724236773)
Installation Diagram
It is easy to install SPRSUN swimming pool heat pump as shown by the following diagram:
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/installati_1.webp?v=1724333891)
Workmanship
We care every detail on what you need!
-
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
-
Anti-corrosion: Aluminum edging
-
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/xijie_fube_2.webp?v=1724314313)
-
Energy Saving: 30mm thickness for insulation to prevent energy lost
-
User-friendly Design: Ram design using machine wire
-
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/xijie_fube_3.webp?v=1724314313)
Model Series
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/yongchijixinghao_1.webp?v=1724324411)
