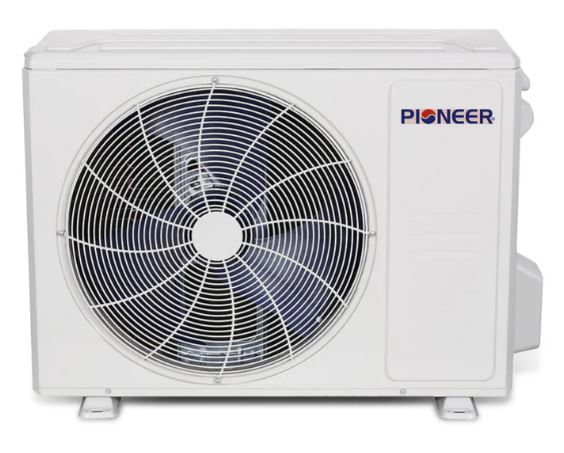

Pioneer® Dual (2) Zone Quantum Series Outdoor Section 21 SEER2 Multi Split Inverter++ Energy-Star Air Conditioner & Heat Pump 230V

SKU YN020GMFI22M2E
In stock | ETA: to
Save $272.00
Original Price $1,630.00
Current Price $1,358.00

Notify me when back in stock

FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

Pioneer® Dual (2) Zone Quantum Series Outdoor Section 21 SEER2 Multi Split Inverter++ Energy-Star Air Conditioner & Heat Pump 230V


Overview




This Pioneer® Dual (2) Zone Quantum Series Outdoor Section Air Conditioner and Heat Pump provides efficient cooling and heating for your home. With a high SEER2 rating and Energy-Star certification, it will save you money on energy costs. Plus, its multi-split inverter technology allows for customizable temperature control in two separate zones. Upgrade your outdoor comfort with Pioneer's Quantum series today.


Summary

  • OUTDOOR SECTION ONLY for Dual (2) Zone Quantum Free-Match Series
  • Ultra High Efficiency DC Inverter++ version with ultra low-ambient heating
  • Cooling capacity: 18,000 BTU/H Nominal (Range: 4,950 MIN ~ 23,000 MAX) with 21 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 19,000 BTU/H Nominal (Range: 4,900 MIN ~ 23,000 MAX) with 10.2 HSPF2 / 3.67 C.O.P. efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Factory charged for up to 25’ line set per circuit (or 50' total combined attached)
  • Energy-Star Certified
  • Whisper Quiet Operation

[[REFRIGERANT]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Communication Protocol: Current Loop
  • Min-Max Load Attached: 12,000~24,000 BTU/h
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 4,950~23,000 BTU/h
  • Cooling SEER2 (Ductless): 21 BTU/W.h
  • Cooling EER2 (Ductless): 12.5 BTU/W.h
  • Heating Rated Capacity: 19,000 BTU/h
  • Heating Capacity Range: 4,950~23,000 BTU/h
  • Heating HSPF2 (Ductless): 10.2 BTU/W.h
  • Refrigerant Type: R410a
  • Suitable Area: 600~800 Sq.F
  • Sound Level: 59.5 dB(A)
  • Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
  • Carton Dimensions (WDH): 40.5 x 17.25 x 29.5 Inches
  • Net / Gross Weight: 100 / 109 Lbs



Matching Indoor Models

Dual Zone Combinations

Rating Two Units
Wall: 9 + 9 9 + 9
Ducted: 9 + 9 9 + 12
  12 + 12

9,000 BTU Compatible Units

12,000 BTU Compatible Units

    Min. / Max. Loading

    12,000 / 24,000 BTU/h.

    Notes

    Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.

    With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.

    For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.
