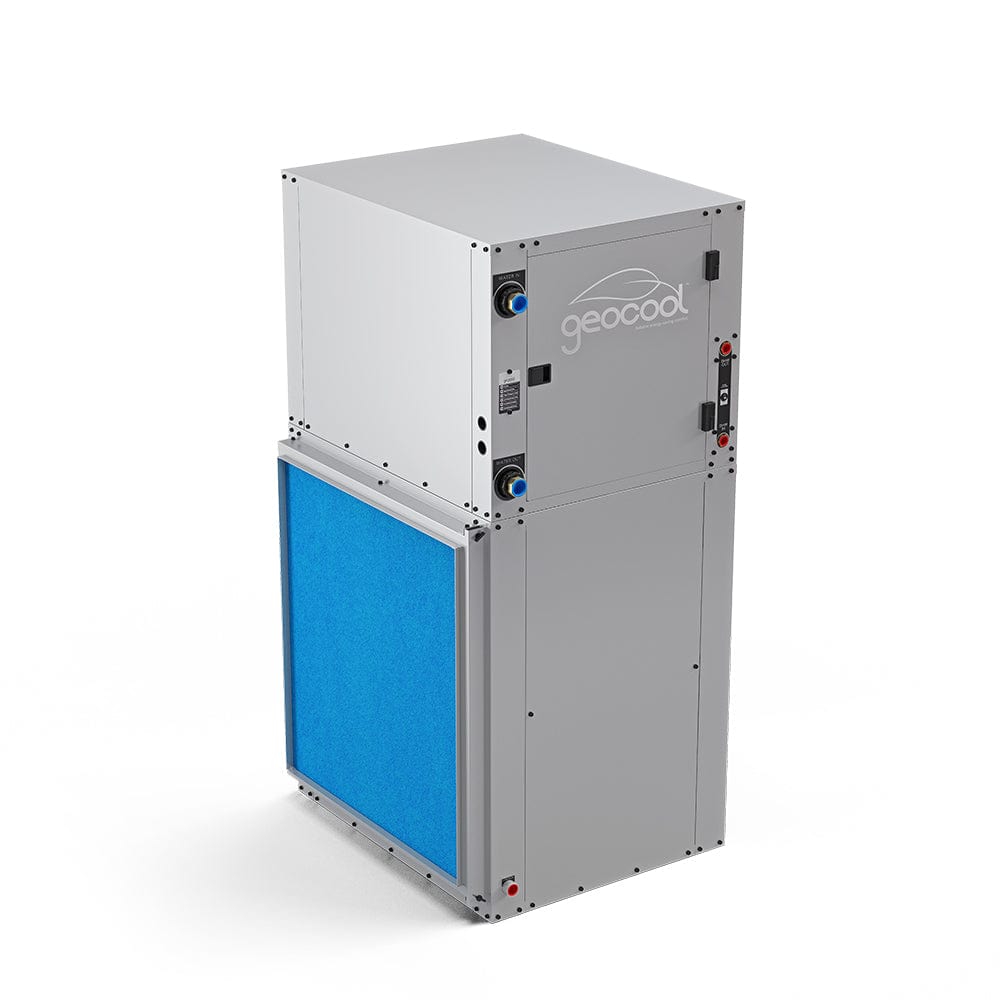

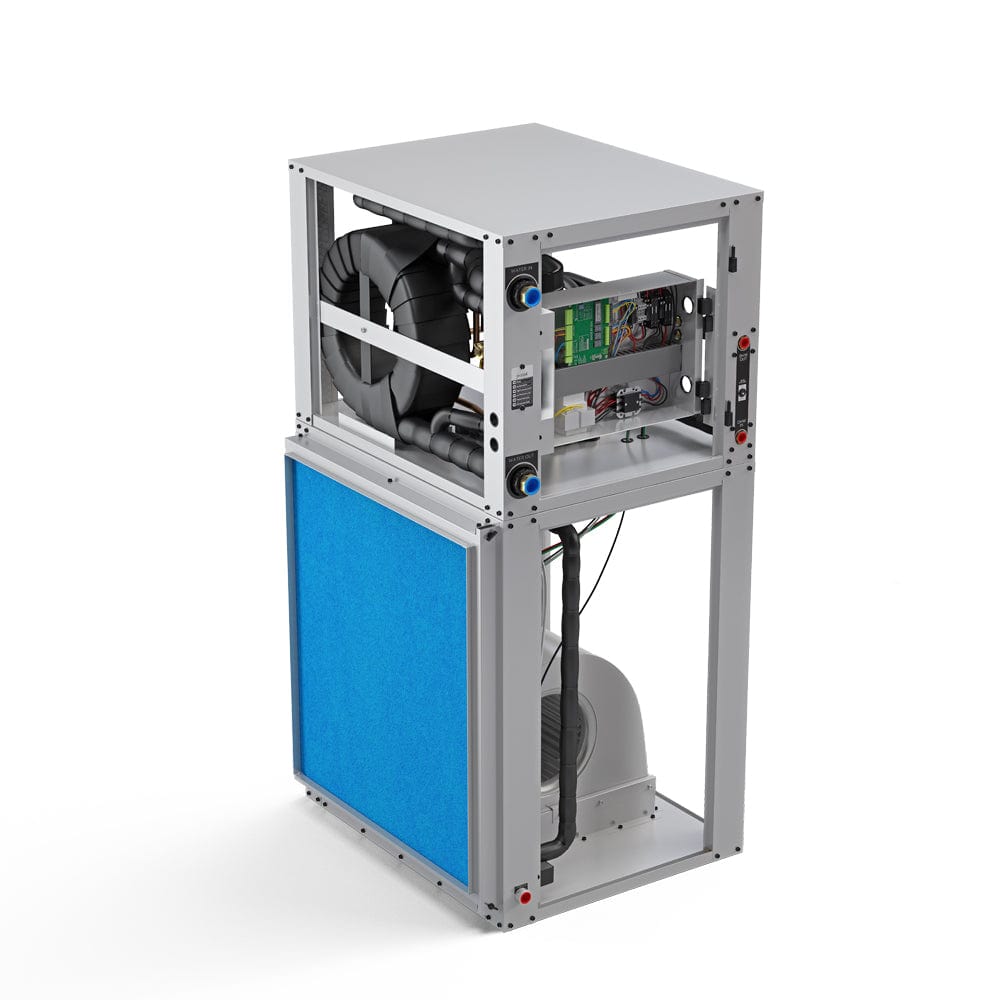

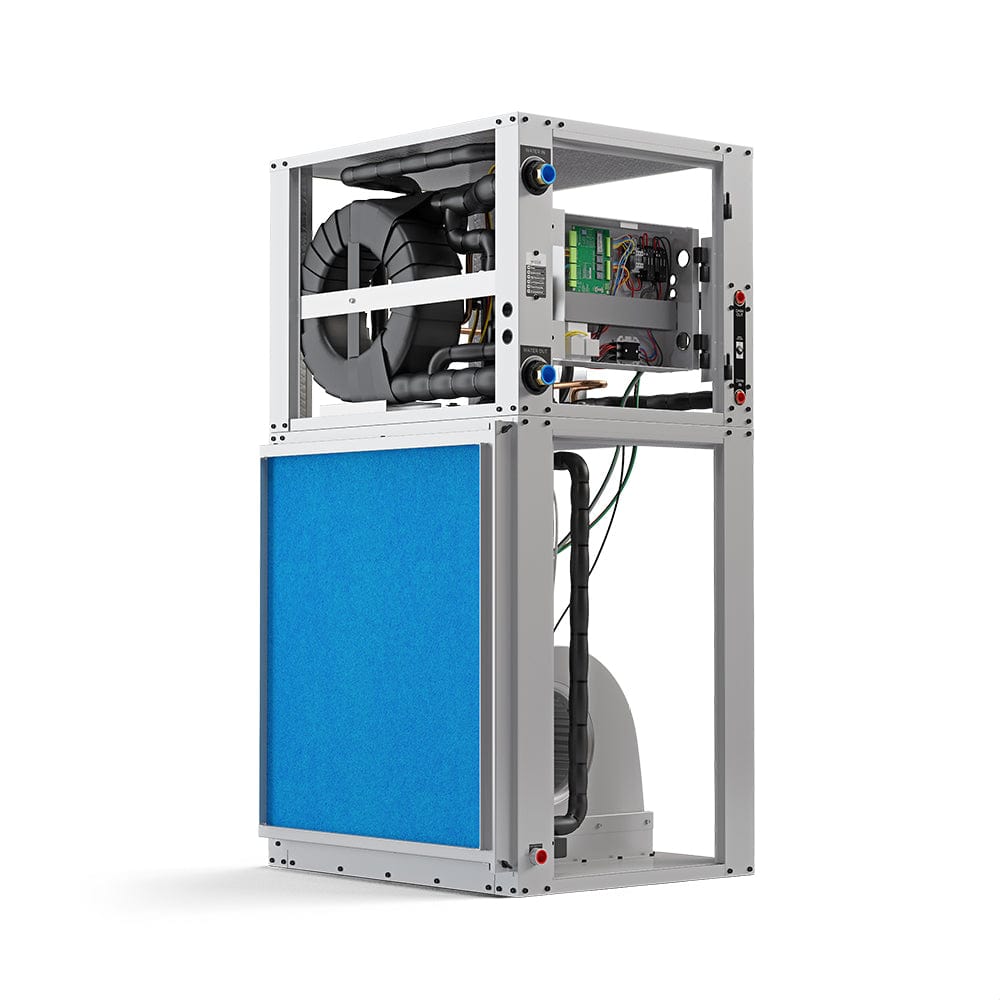

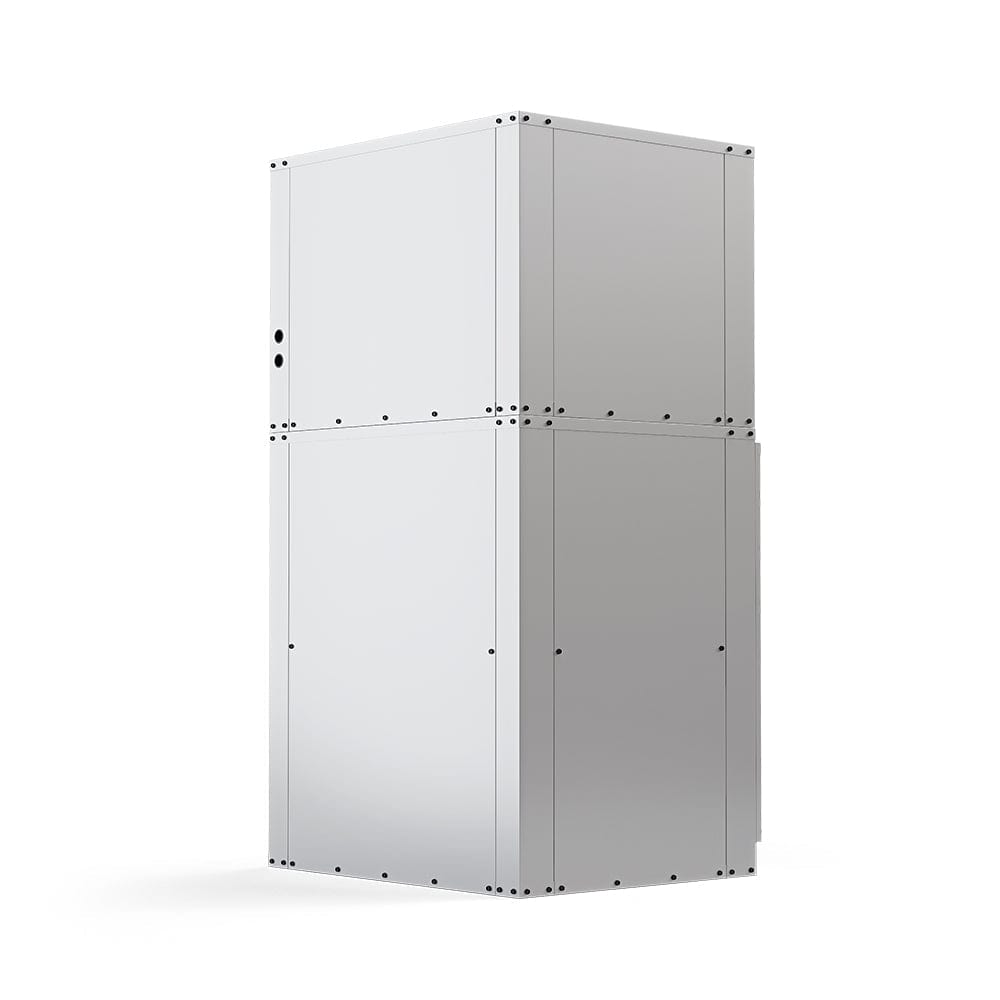

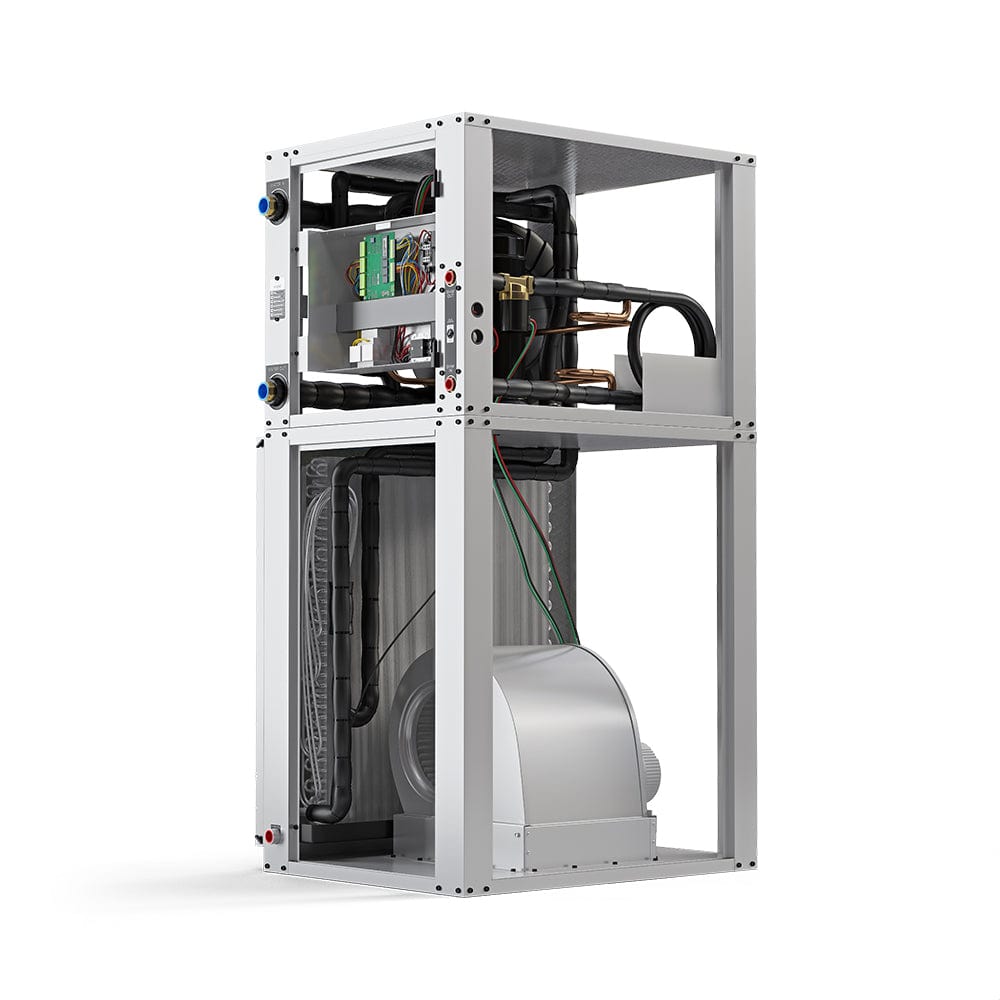

MRCOOL 36K BTU Downflow Two-Stage CuNi Coil -Left Return,
GCHPD036TGTANXL

Elevate your home's comfort and efficiency with the MRCOOL 36K BTU Downflow Two-Stage CuNi Coil - Left Return (GCHPD036TGTANXL). This advanced unit is engineered to deliver the highest energy efficiency in its class while providing reliable heating and cooling for your space. Imagine enjoying peace of mind knowing that your HVAC system qualifies for federal tax credits and other incentives, making it a smart financial choice as well as a comfort solution.

The MRCOOL 36K BTU Coil features cutting-edge sinusoidal eon motor control technology for quiet operation and enhanced efficiency. Safety is paramount, with built-in high and low-pressure switches ensuring safe and reliable performance. The insulated sloped stainless steel drain pan helps to prevent moisture buildup, while the advanced unit control board includes diagnostic LEDs for easy monitoring and maintenance.

Designed with ease of service in mind, this unit includes double O-ring water connections and easy service access for hassle-free upkeep. Plus, the optional domestic water pre-heating feature adds versatility to your heating options. Proudly made in the USA and backed by a 10-year compressor warranty, the MRCOOL Downflow Two-Stage CuNi Coil is a dependable choice for enhancing your home's comfort and energy efficiency.

Features of GCHPD036TGTANXL:

Qualifies for federal tax credit, and other incentives

Highest energy efficiency in its class

Safety high and low-pressure switches

Quiet operation

Full-featured sinusoidal eon motor control technology

Insulated sloped stainless steel drain pan

Advanced unit control board with diagnostic LEDs

Double O-ring water connections

Easy service access

Optional domestic water pre-heating

Made in the USA

10-year compressor warranty

GCHPD036TGTANXL Specifications:

Product Dimensions

25.75"W x 32"D x 56"H

Product Weight

325 lbs

EER

Ground Water (FULL) 27.20 / Ground Loop (FULL)17.86

EER Part Load

Ground Water (PART) 35.70 / Ground Loop (PART) 25.84

COP 47

Ground Water (FULL) 5.30 / Ground Loop 4.40 (FULL)

COP 47 Part Load

Ground Water (PART) 5.60 / Ground Loop 4.80 (PART)

HSPF

Ground Water Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)

AFUE

Ground Loop Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)

CFM

COOLING (PART) 1150 - 1350 (FULL) / HEATING (PART) 1100 - 1100 (FULL)

Tonnage

Cooling Capacity

Ground Water (PART) 33000 - 43000 (FULL) / Ground Loop (PART) 30300 - 39000 (FULL)

Heating Capacity

Ground Water (PART) 27500 - 38000 (FULL) / Ground Loop (PART) 24000 - 26900 (FULL)

Voltage

230V/60Hz/42A

Phase

Cycle

Stage

Two-Stage

Max Fuse Breaker

34.0(W/O Desupe

Min Circuit Ampacity

21.9

Configuration

Left Return Downflow

Color

Gray

Max Coverage Area

1,500 square feet

Refrigerant Type

R-410A

Compressor Motor Type

Scroll

Blower Motor Type

Axial Flux (No Shaft) BLA

Blower Motor HP

3/4

Filter Type

Replaceable

Contains

Electronics
Chemicals
Aerosol
Compressed Gas

Proposition 65 Warning

Yes

Certifications

ETL Listed
Energy Star
AHRI

Warranty

Registered 10 Year Parts Warranty

GCHPD036TGTANXL Manual

Mr cool 36K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Left Return

MRCOOL 36K BTU Downflow Two-Stage CuNi Coil - Left Return, GCHPD036TGTANXL

Name: MRCOOL 36K BTU Downflow Two-Stage CuNi Coil - Left Return, GCHPD036TGTANXL
Brand: MRCOOL
SKU: GCHPD036TGTANXL
Price: 5903.0 USD
Availability: InStock
