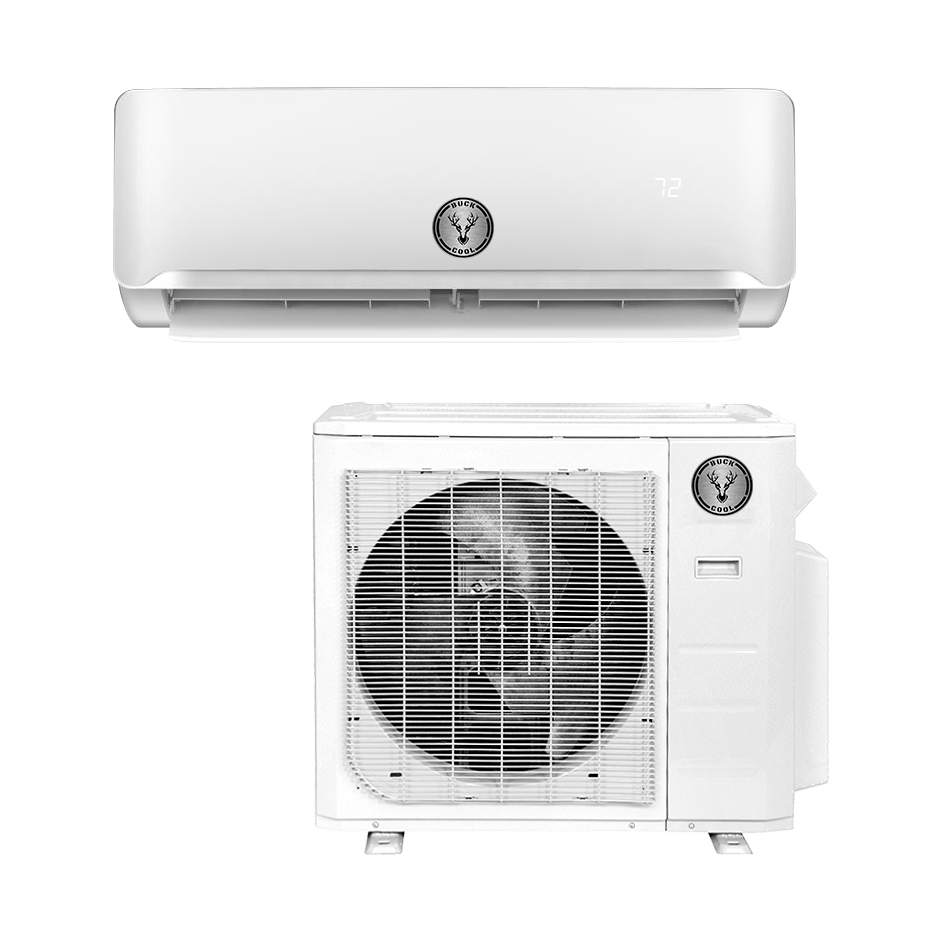

Buck Cool 36K BTU, 16 SEER EZ Connect Ductless Mini Split Heat Pump Complete System (UB1MSHQCW36)

Our EZ connect systems put you in control of your own install. Skip the expensive installation bills and waiting on a technician - install your own mini split system in around 4 hours!

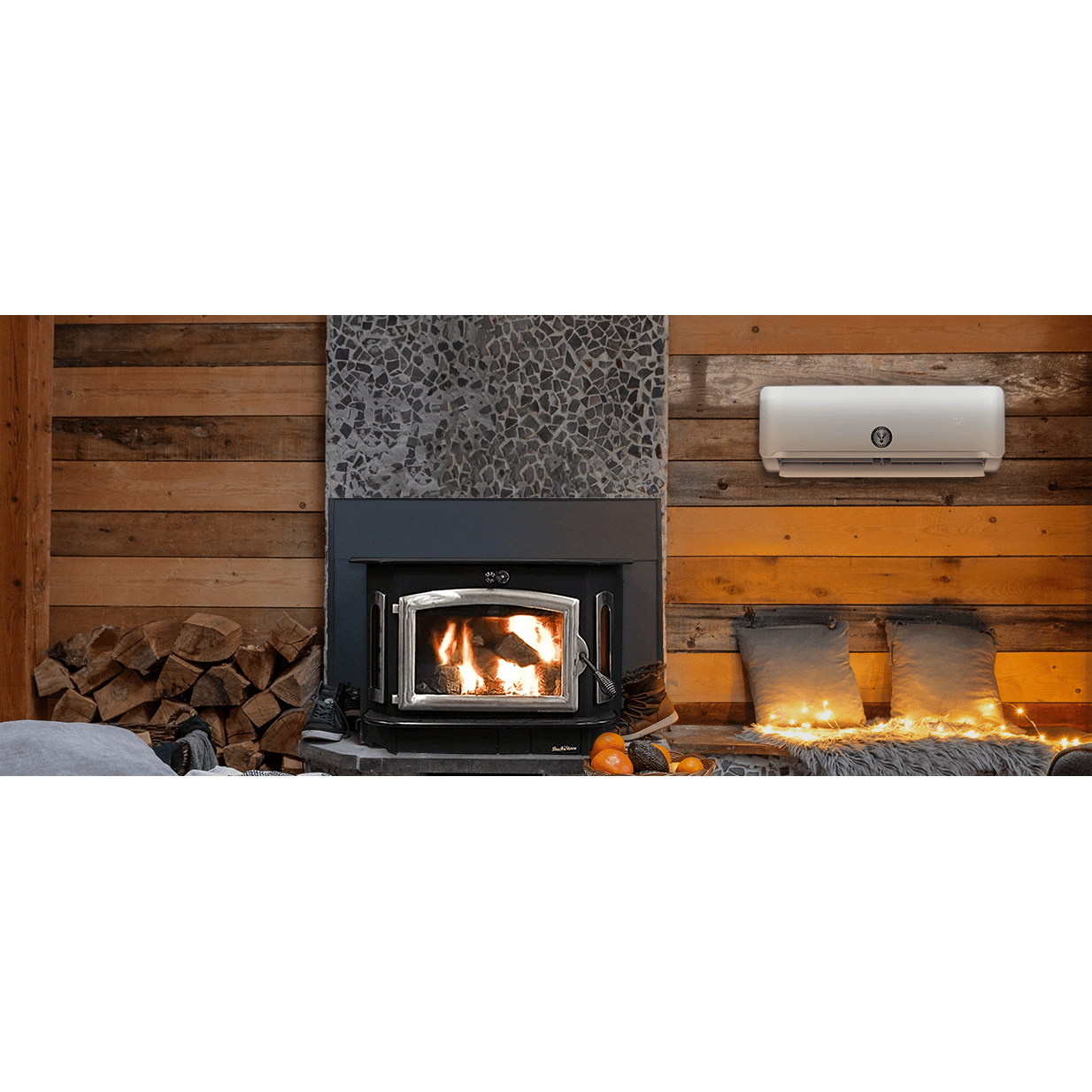

Heat and Cool Any Space (Garage, In-Law Suite, Pool House, Workshop). An extra source to supplement or back up a heating stove or fireplace. All hanging hardware, tubing, tape, lines, insulation, and remote are included. You simply provide the tools. That's it!

Features

  • The pre-charged EZ connect line sets allow for a simple installation process without the need for an HVAC technician
  • Everything you need is included in your EZ Connect kit, all you need to provide are the tools
  • Easily connect your unit to your phone with the included Wifi adapter
  • Our systems utilize high efficiency rotary compressors and dc inverter driven motors
  • The included remote is equipped with multiple modes to choose from and an LCD screen for ease of use

Condenser Dimensions 42 9/10" W x 19 9/10" D x 36 4/5" H
SEER 16
EER
8.2
HSPF 8.9
Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Electrical Requirements

208-230V/60HZ/24-40A.
Double Pole 40-AMP Breaker

Phase 1
Cycle 60 Hz
Max Fuse Breaker 40 A
Min Circuit Ampacity 24 A
Color White
Connection Wiring  8 AWG
Max Coverage Area Up to 1,500 sq ft
Zone Capacity 1
Decibel Rating 52/45/35
Decibel Rating Low 35 dBA
Decibel Rating High 52 dBA
Inverter Yes
Min Ambient Cool -5°F - 122°F
Min Ambient Heat -5°F - 57°F
Line Set Length 25ft - Included
Compressor Motor Type Rotary
Auxiliary Heater Available No
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android

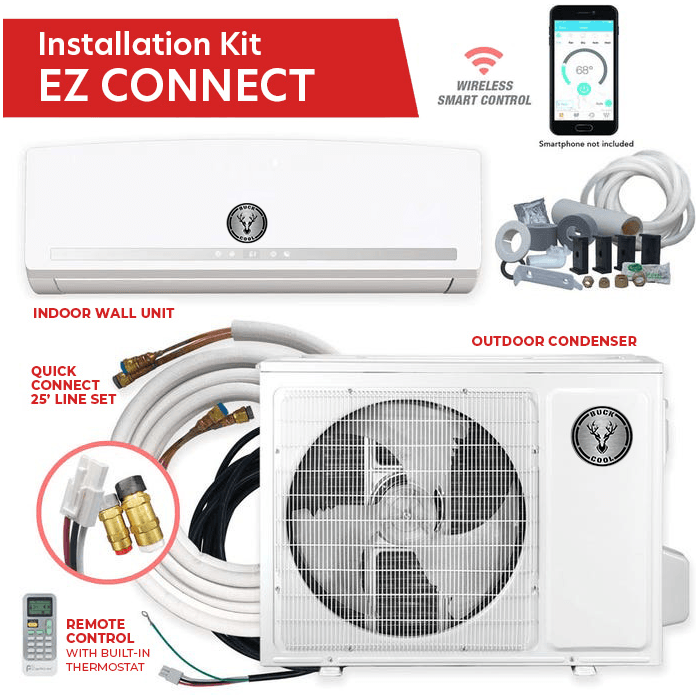

Includes
  • Remote Control and batteries
  • NetHome Plus Wi-Fi Adapter
  • Remote Wall Bracket for Remote
  • Mounting Hardware - Screws and Wall Anchors for Indoor Unit
  • Drain Joint
  • Foam Insulation
  • Tar Tape
  • 25' Lineset with Refrigerant
  • Vibration Pads
  • Drain Tubing
  • Wall Sleeve
  • Beauty Cap
  • UV Tape
Certifications Energy Star
AHRI
Warranty 12 Years Compressor/ 5 Years Parts
Restricted States GU;PR;VI





Installation Guide & Owner's Manual
Brochure
