Buck Cool Buck Cool 24K BTU, 20 SEER EZ Connect Ductless Mini Split Heat Pump Complete System (UB1MSHQCW24) Mini Split UB1MSHQCW24

Buck Cool 24K BTU, 20 SEER EZ Connect Ductless Mini Split Heat Pump Complete System (UB1MSHQCW24)

by Buck Cool
SKU UB1MSHQCW24
In stock | ETA: to
Save $87.00
$3,099.00
$3,012.00

Notify me when back in stock

FREE EXPRESS SHIPPING Process orders in 1 business day
STRESS FREE RETURNS 2 Year Returns
Primum Quality Top Tier Products, Even Better Customer Care
5 Year Warranty We Believe In Our Products & Our Team
Professional Services Get service quotes the same day
Product Image
Buck Cool 24K BTU, 20 SEER EZ Connect Ductless Mini Split Heat Pump Complete System (UB1MSHQCW24)
$3,099.00 $3,012.00

CUSTOMER SPOTLIGHT

BUSINESS INFORMATION

We are available 9am-10pm EST, 5 days a week. You can reach us at 800 270 0086. We are also available via live chat, email support@ahomeselection.com

Location: 38 Niagara Falls Blvd, Buffalo New York 14214, United States

FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

Buck Cool 24K BTU, 20 SEER EZ Connect Ductless Mini Split Heat Pump Complete System (UB1MSHQCW24)

Our EZ connect systems put you in control of your own install. Skip the expensive installation bills and waiting on a technician - install your own mini split system in around 4 hours!

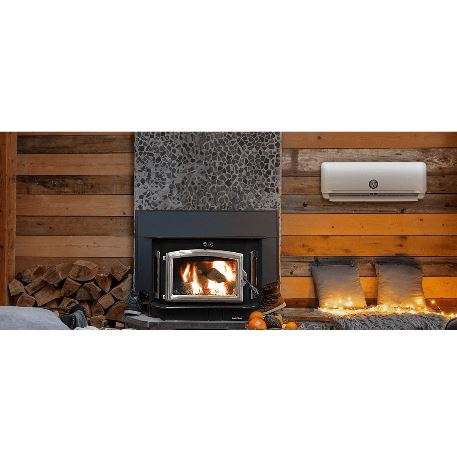

Heat and Cool Any Space (Garage, In-Law Suite, Pool House, Workshop). An extra source to supplement or back up a heating stove or fireplace. All hanging hardware, tubing, tape, lines, insulation, and remote are included. You simply provide the tools. That's it!

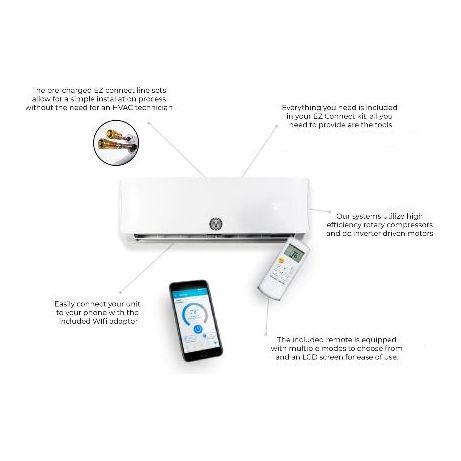

Features

  • The pre-charged EZ connect line sets allow for a simple installation process without the need for an HVAC technician
  • Everything you need is included in your EZ Connect kit, all you need to provide are the tools
  • Easily connect your unit to your phone with the included Wifi adapter
  • Our systems utilize high efficiency rotary compressors and dc inverter driven motors
  • The included remote is equipped with multiple modes to choose from and an LCD screen for ease of use

 

Condenser Dimensions 42 9/10" W x 19 9/10" D x 36 4/5" H
SEER 20
EER
 12.5
HSPF 10
Cooling Capacity 24,000 BTU
Heating Capacity 24,000 BTU
Electrical Requirements 208-230V/60HZ/18-30A.
Double Pole 30-AMP Breaker.
Phase 1
Cycle 60 Hz
Max Fuse Breaker 30 A
Min Circuit Ampacity 18 A
Color White
Connection Wiring  10 AWG
Max Coverage Area Up to 1,000 sq ft
Zone Capacity 1
Decibel Rating 47/42/33.5
Decibel Rating Low 33.5 dBA
Decibel Rating High 47 dBA
Inverter Yes
Min Ambient Cool -5°F - 122°F
Min Ambient Heat -5°F - 57°F
Line Set Length 25ft - Included
Compressor Motor Type Rotary
Auxiliary Heater Available No
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android

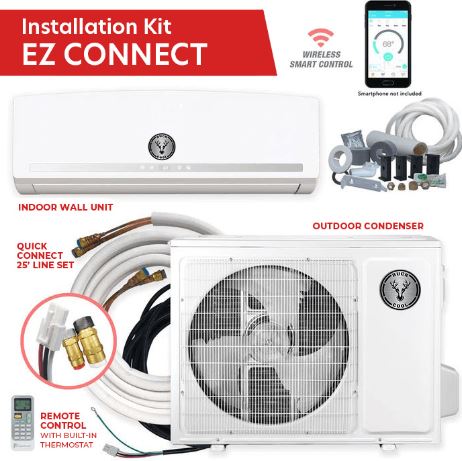

Includes
  • Remote Control and batteries
  • NetHome Plus Wi-Fi Adapter
  • Remote Wall Bracket for Remote
  • Mounting Hardware - Screws and Wall Anchors for Indoor Unit
  • Drain Joint
  • Foam Insulation
  • Tar Tape
  • 25' Lineset with Refrigerant
  • Vibration Pads
  • Drain Tubing
  • Wall Sleeve
  • Beauty Cap
  • UV Tape
Certifications Energy Star
AHRI
Warranty 12 Years Compressor/ 5 Years Parts
Restricted States GU;PR;VI



Installation Guide & Owner's Manual
Brochure



Free Express Shipping on All orders within the USA

30 Day Free Returns on all orders
