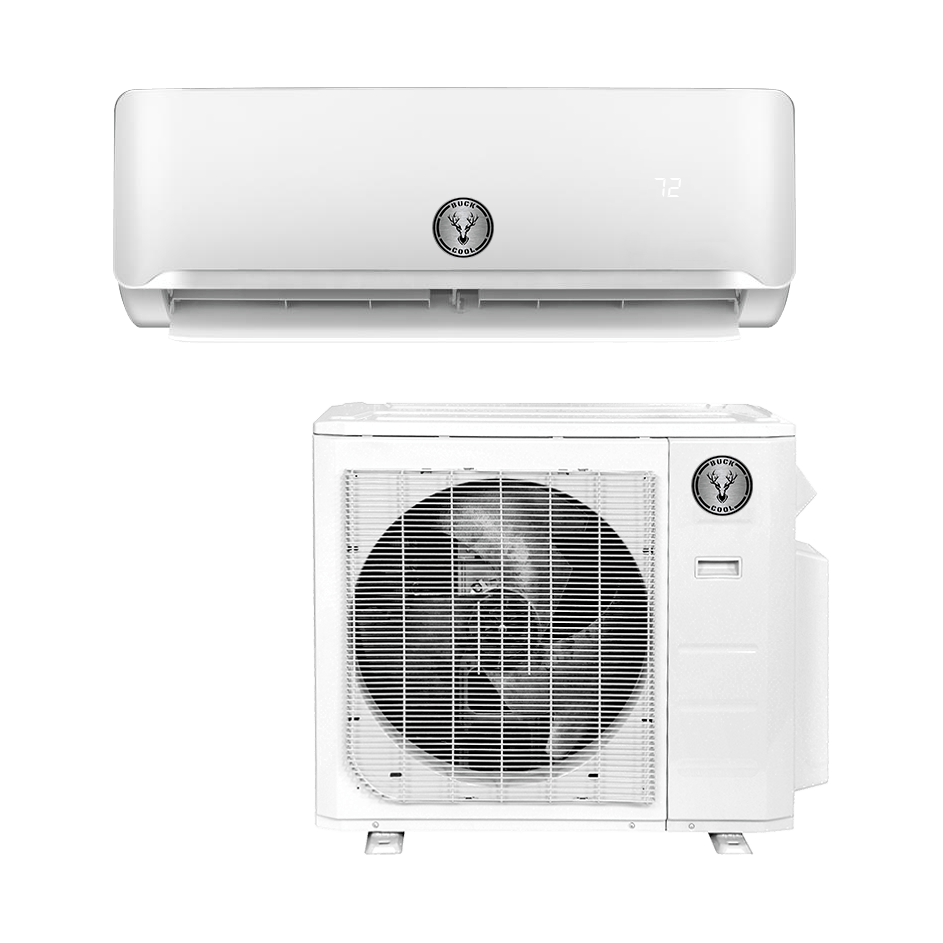

Buck Cool 12K BTU, 22 SEER EZ Connect Ductless Mini Split Heat Pump System with Lineset (UB1MSHQCW12)
Our EZ connect systems put you in control of your own install. Skip the expensive installation bills and waiting on a technician - install your own mini split system in around 4 hours!

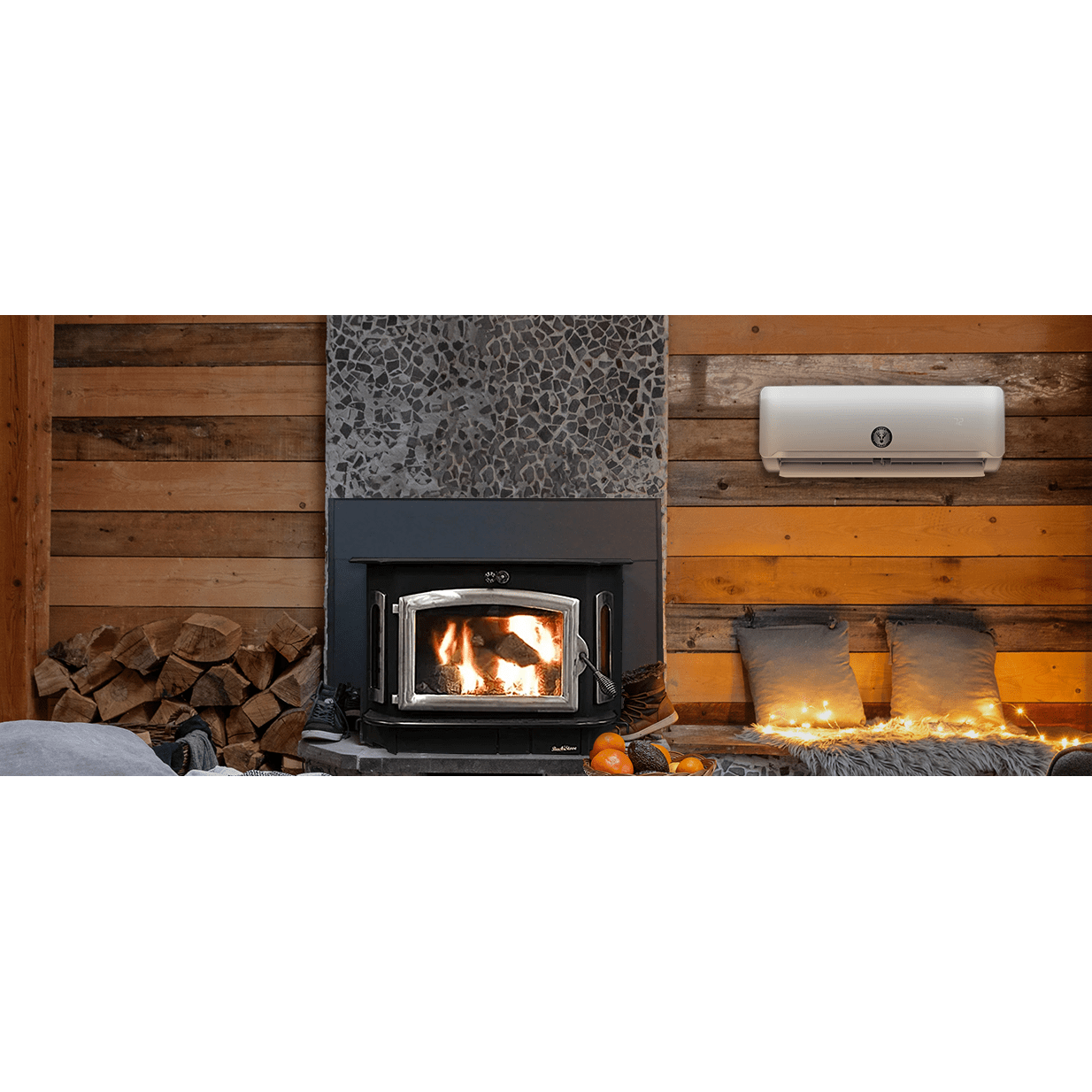

Heat and Cool Any Space (Garage, In-Law Suite, Pool House, Workshop). An extra source to supplement or back up a heating stove or fireplace. All hanging hardware, tubing, tape, lines, insulation, and remote are included. You simply provide the tools. That's it!

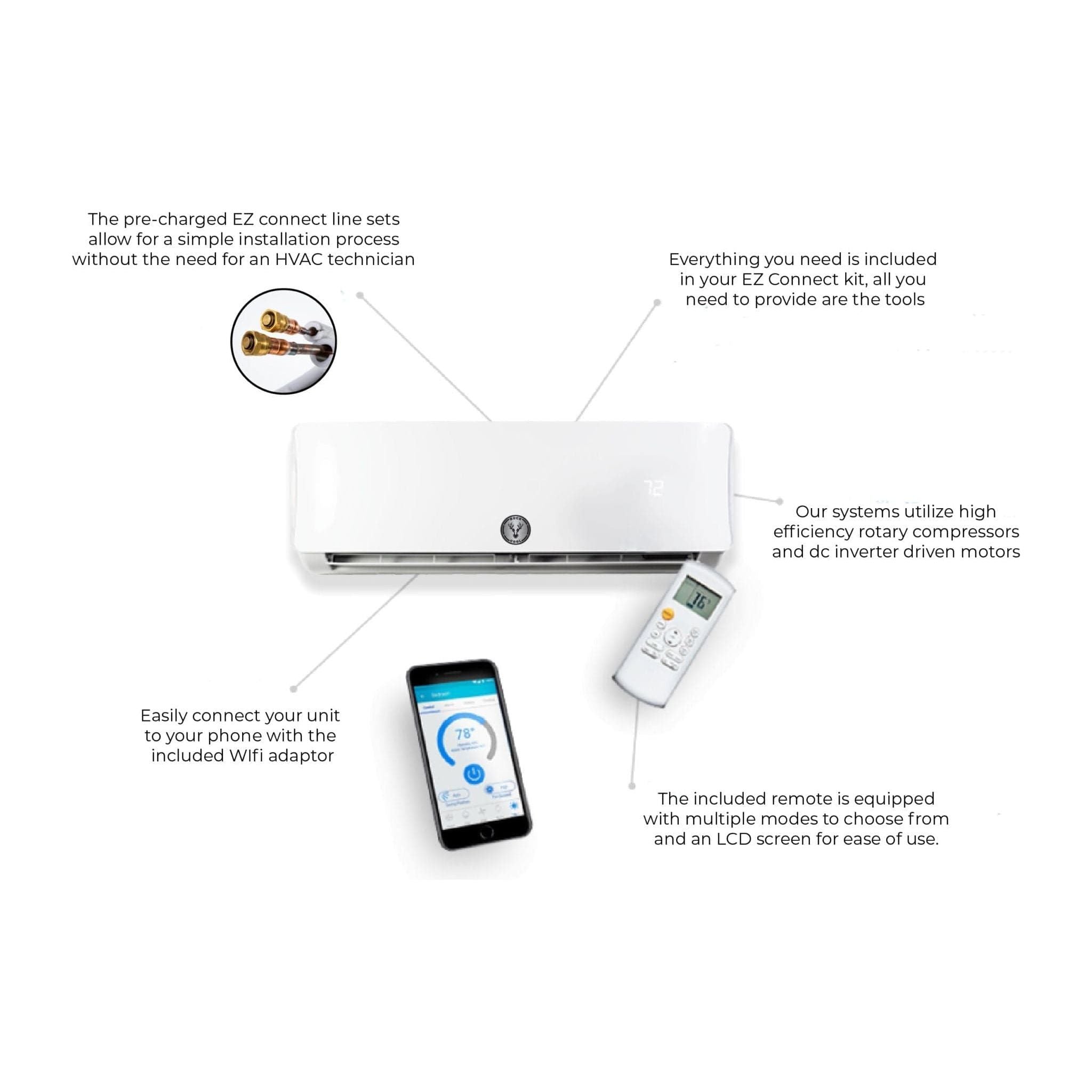

Features
The pre-charged EZ connect line sets allow for a simple installation process without the need for an HVAC technician
Everything you need is included in your EZ Connect kit, all you need to provide are the tools
Easily connect your unit to your phone with the included Wifi adapter
Our systems utilize high efficiency rotary compressors and dc inverter driven motors
The included remote is equipped with multiple modes to choose from and an LCD screen for ease of use
Condenser Dimensions
37" W x 17 3/10" D x 27" H
SEER
22
EER
12.7
HSPF
10
Cooling Capacity
12,000 BTU
Heating Capacity
12,000 BTU
Electrical Requirements
Minimum of 115V/60HZ/15-20A. 15-AMP Breaker. (please check your home meets this electrical requirement prior to purchase)
Phase
1
Cycle
60 Hz
Max Fuse Breaker
20 A
Min Circuit Ampacity
15 A
Color
White
Connection Wiring
14 AWG
Max Coverage Area
Up to 500 sq ft
Zone Capacity
1
Decibel Rating
38/31/23.5
Decibel Rating Low
23.5 dBA
Decibel Rating High
38 dBA
Inverter
Yes
Min Ambient Cool
-5°F - 122°F
Min Ambient Heat
-5°F - 75°F
Line Set Length
25ft - Included
Compressor Motor Type
Rotary
Auxiliary Heater Available
No
Wifi Compatibility
Yes
App Compatibility
Yes
Compatible with
IOS Android
Includes
Remote Control and batteries
NetHome Plus Wi-Fi Adapter
Remote Wall Bracket for Remote
Mounting Hardware - Screws and Wall Anchors for Indoor Unit
