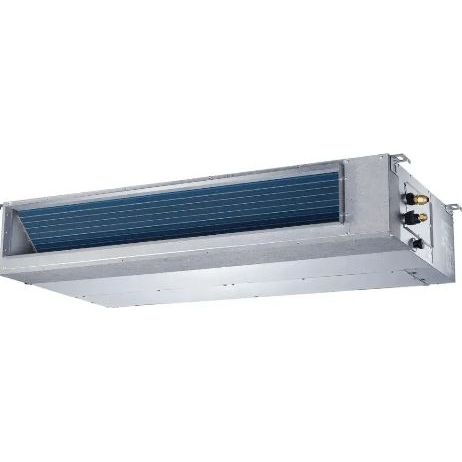

ACiQ 18,000 BTU Concealed Duct Mini-Split Air Handler ACIQ-18CD-HH-MB
The ACiQ 18,000 BTU Concealed Duct Mini-Split Air Handler model ACIQ-18CD-HH-MB is a highly efficient and versatile air conditioning unit designed to provide optimal cooling and comfort in various indoor spaces. This particular model boasts a powerful cooling capacity of 18,000 British Thermal Units (BTU), making it suitable for larger rooms and areas that require effective temperature control. The concealed duct design allows for seamless integration into your existing decor, ensuring that the unit operates quietly and unobtrusively while delivering consistent airflow throughout the space.
With advanced features and technology, this mini-split air handler is an excellent choice for anyone looking to enhance their indoor climate control solutions.
The layout is super easy - the back of the unit brings in return air and out the front, cooled or heated air is pushed through an almost inaudible squirrel cage fan. You can either connect a pre-made manifold takeoff or create your own plenums using ductboard. With common materials, the options for customization are limitless.
Installation Considerations
For optimal installation of concealed duct systems, proper planning is necessary, similar to a standard home HVAC setup. These systems are ideal for new constructions or additions. Along with the equipment components, installation will also require flex ducting, register vents, plenums, and necessary installation supplies. The concealed duct units are equipped with a factory-installed pump for lifting condensation, followed by the construction of a PVC drain system to a safe wastewater location.
FEATURES
- 18,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a medium room in most climates
- Wall mounted thermostat included
Concealed Duct
With concealed duct air handlers, enjoy the benefits of a multi zone mini split without any visible units on your walls or ceilings. These versatile units can be easily hidden above the ceiling, below the floor, in a closet ceiling, hallway ceiling, or behind a soffit. Simply use flex ducting from the concealed duct air handler to register on the ceiling or walls in your desired spot. With common supplies like ductboard, duct takeoffs, and flex ducting, create a cost-effective and adaptable solution for various applications.
Specs
SKU |
ACIQ-18CD-HH-MB |
Weight (in lbs) |
67.000000 |
Brand/Manufacturer |
ACiQ |
Cooling BTU |
18,000 BTU |
Heating BTU |
18,000 BTU |
Maximum CFM |
529.41 |
Decibel Level (dBA) |
As low as 35 |
Electric Heat |
Heat Pump |
Refrigerant |
R410A |
Liquid Line |
1/4" |
Suction Line |
1/2" |
Electrical |
208/230V 1 Phase 60Hz |
Phase |
Single Phase |
Max Breaker Size |
25 |
Min. Breaker Size |
20 |
BTU/Tonnage |
18,000 BTU/1.5 Ton |
Mini-Split Type |
Concealed Duct |
Zone Compatibility |
Multi Zone |
Height |
8.27" |
Width |
34.65" |
Depth |
26.54" |
Warranty |
12 year compressor, 7 year parts with online registration |
