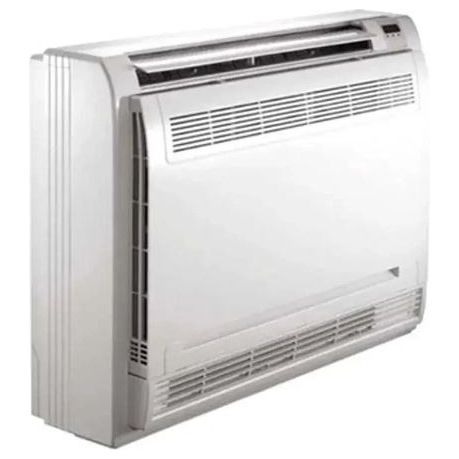

ACiQ 12,000 BTU Floor Mounted Mini-Split Air Handler ACIQ-12FM-HH-MB

ACiQ Floor Mounted air handlers are an excellent choice for various spaces such as sun porches and attic rooms that unfortunately lack sufficient room for the installation of a standard high wall unit. These versatile units, which are sometimes referred to as heat console type air handlers, are designed to be mounted directly on or very close to the wall, making them particularly ideal for low wall surfaces or floor spaces where conventional units simply won't fit.

They have a design that is slightly wider, taller, and shallower in shape when compared to standard high wall units, allowing them to blend seamlessly into the environment. This makes them a fantastic option for sun porches that have limited wall space beneath windows, as well as for attic renovations featuring knee-walls that may not accommodate tall vertical high walls. Their unique design ensures that they provide efficient heating and cooling without compromising on aesthetics or functionality.

Optimized for Heat

As a wall-mounted unit would, these units intake return air from the top and circulate it from the bottom. This makes it perfect for heating, as it prevents stratification caused by heat rising. When switched to cooling mode, the airflow direction is reversed to ensure better air circulation throughout the room.

FEATURES

12,000 BTU of Heating or Cooling

Dry and Fan modes also available

Good for a small room in most climates

Remote control thermostat included

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

Specifications

12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler

SKU

ACIQ-12FM-HH-MB

Weight (in lbs)

41.450000

Brand/Manufacturer

ACiQ

Controller

Wireless Included

Cooling BTU

12,000 BTU

Heating BTU

12,000 BTU

Maximum CFM

441

Decibel Level (dBA)

As low as 25

Electric Heat

Heat Pump

Energy Star

Yes

Refrigerant

R410A

Liquid Line

1/4"

Suction Line

1/2"

Electrical

208/230V 1 Phase 60Hz

Phase

Single Phase

Max Breaker Size

Min. Breaker Size

BTU/Tonnage

12,000 BTU/1 Ton

Mini-Split Type

Floor Mounted

Zone Compatibility

Multi Zone

Height

24.45"

Width

31.26

Depth

7.87

Warranty

12 year compressor, 7 year parts with online registration

Resources

Safety Information

PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
