ACiQ 12,000 BTU Concealed Duct Mini-Split Air Handler ACIQ-12CD-HH-MB
$750.00
Product successfully added to your cart!

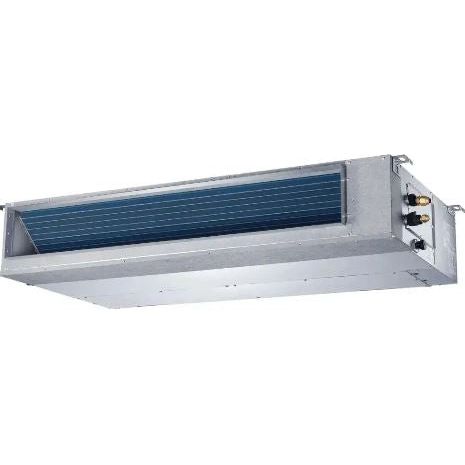

ACiQ 12,000 BTU Concealed Duct Mini-Split Air Handler ACIQ-12CD-HH-MB



Concealed duct air handlers provide an array of advantages similar to those of a multi-zone mini split system, all while ensuring that there are no visible units disrupting the aesthetic appeal of your walls or ceilings. These incredibly versatile units can be discreetly installed above the ceiling, below the floor, or even tucked away in a closet, hallway, or soffit, allowing for maximum flexibility in design and functionality. To install these units, you simply need to connect up to four flex duct runs from the air handler to ceiling or wall registers located in your chosen spaces. This makes them particularly ideal for use in small bedrooms or an expansive master suite, where maintaining a clean and unobtrusive look is often a priority. The concealed nature of these air handlers not only enhances the interior decor but also ensures that you enjoy comfortable climate control without compromising on style.



The design of this product is straightforward: the return air is taken in from the back, while the cooled or heated air is pushed out from the front by a nearly silent squirrel cage fan. You can easily attach a pre-made manifold takeoff or create your own plenums using ductboard. With a wide range of supplies available, the customization options are endless.

Installation Considerations

When installing a concealed duct system, careful planning is necessary, similar to a standard home HVAC installation. These types of systems work best for new construction or additions. Installation also requires flex ducting, register vents, plenums, and other supplies, in addition to the equipment components. These units already have a built-in pump to lift the condensation, and a PVC drain system must be installed to safely remove the wastewater.

FEATURES

  • 12,000 btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a smaller room in most climates
  • Wall mounted thermostat included

Specifications

SKU ACIQ-12CD-HH-MB
Weight (in lbs) 48.500000
Brand/Manufacturer ACiQ
Cooling BTU 12,000 BTU
Heating BTU 12,000 BTU
Maximum CFM 352.94
Decibel Level (dBA) As low as 26.5
Electric Heat Heat Pump
Refrigerant R410A
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz
Phase Single Phase
Max Breaker Size 15
Min. Breaker Size 15
BTU/Tonnage 12,000 BTU/1 Ton
Mini-Split Type Concealed Duct
Zone Compatibility Multi Zone
Height 7.87"
Width 27.56"
Depth 19.92"
Warranty 12 year compressor, 7 year parts with online registration
