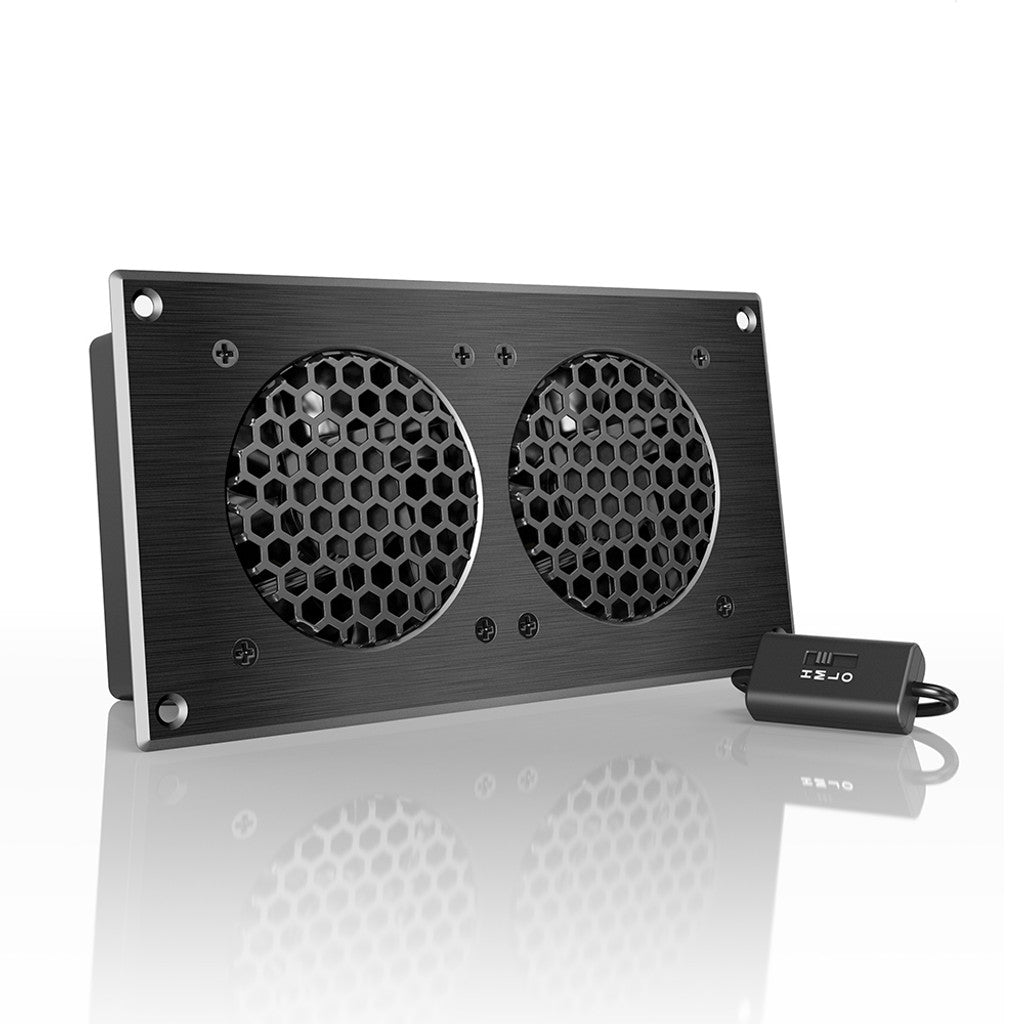

AC Infinity AIRPLATE S5, Home Theater and AV Quiet Cabinet Cooling Fan System, 8 Inch

Product Description

The ultra-quiet fan system from AC Infinity has been meticulously crafted to provide cooling for home theaters, entertainment centers, and audio-video cabinets. It features a speed controller and a 6-foot power cord. The included fans are equipped with a custom-engineered motor that minimizes noise during speed fluctuations and hold CE and RoHS certifications. This system incorporates AC Infinity axial fans ACX-FD8025(B)05W5, which comply with UL-507 safety standards under Underwriters Laboratories certificate E503903. The unit is designed with dual ball bearings rated for 67,000 hours, allowing it to be installed in any orientation. It boasts a CNC machined aluminum frame finished in a modern brushed black. The fans are configured to exhaust air out of the frame; however, this can be reversed to intake air using a screwdriver. All necessary hardware is included for the convenient mounting of the unit onto a cabinet, as well as the option to power it via a USB port or standard wall outlet.

Speed Controller and Boost Adapter

The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments. The included Boost Adapter not only allows the fan to be powered through a wall outlet, but increases its performance by up to 25%.

Connecting Additional Units

For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. All setups with more than four daisy-chained fans must have their inline speed controller set to high to prevent overload, e.g. two AIRPLATE S9 units daisy-chained together.

Applications AC Infinity AIRPLATE S5, Home Theater and AV Quiet Cabinet Cooling Fan System, 8 Inch DETAILS

AC Infinity ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise.

Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.

Contains a CNC machined aluminum frame with a modern brushed black finish.

Dimensions: 8.5 x 4.4 x 1.3 in | Total Airflow: 52 CFM | Total Noise: 18 dBA | Bearings: Dual Ball

Product Identification

Manufacturer

AC Infinity Inc.

Product Name

AIRPLATE S5

Product Model

AI-CFD80BA

UPC Code

854759004105

Product and Mounting Dimensions - Fan Unit

Total Dimensions

8.46 x 4.41 x 1.3 in. (21.5 x 11.2 X 3.3 cm)

Backside Enclosure Dimensions

6.93 x 3.74 in. (17.6 x 9.5 cm)

Required Mounting Hole

7.00 x 3.82 in. (17.8 x 9.7 cm)

Hole to Hole Distance

7.80 x 3.74 in. (19.8 x 9.5 cm)

Screw Hole Size

Ø 0.197 in. (Ø 0.5 cm)

Cord Length

72 in. (6 feet)

Mounting Template

PDF

Product Performance and Technical Specs

Total Airflow

52 CFM

Total Noise

18 dBA

Static Pressure

1.6 mm-H2O

Operating Voltage

3 to 7V DC

Power

1.9 W

Current

0.38 A

Wall Adapter Input

100 to 240V AC

Operating Humidity

35 to 85% RH

Operating Temperature

0 to 158°F

Fan Bearings

Dual Ball

Mounting Positions

Horizontal or Vertical

L10 Life Expectancy

67,000 Hours

Fan Quality Approvals

UL, CE, RoHS

UL Certification (Fans Only)

PDF

CE Certification (Whole Product)

PDF

RoHS Cert. (Whole Product)

PDF

Product Manuals

Fan Unit Manual

PDF
