AC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16, Speed Controller FRONT SIDE

AC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16", Speed Controller

by ac infinity
SKU AC-ALS20
In stock | ETA: to
$219.00

Notify me when back in stock

FREE EXPRESS SHIPPING Process orders in 1 business day
STRESS FREE RETURNS 2 Year Returns
Primum Quality Top Tier Products, Even Better Customer Care
5 Year Warranty We Believe In Our Products & Our Team
Professional Services Get service quotes the same day
FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

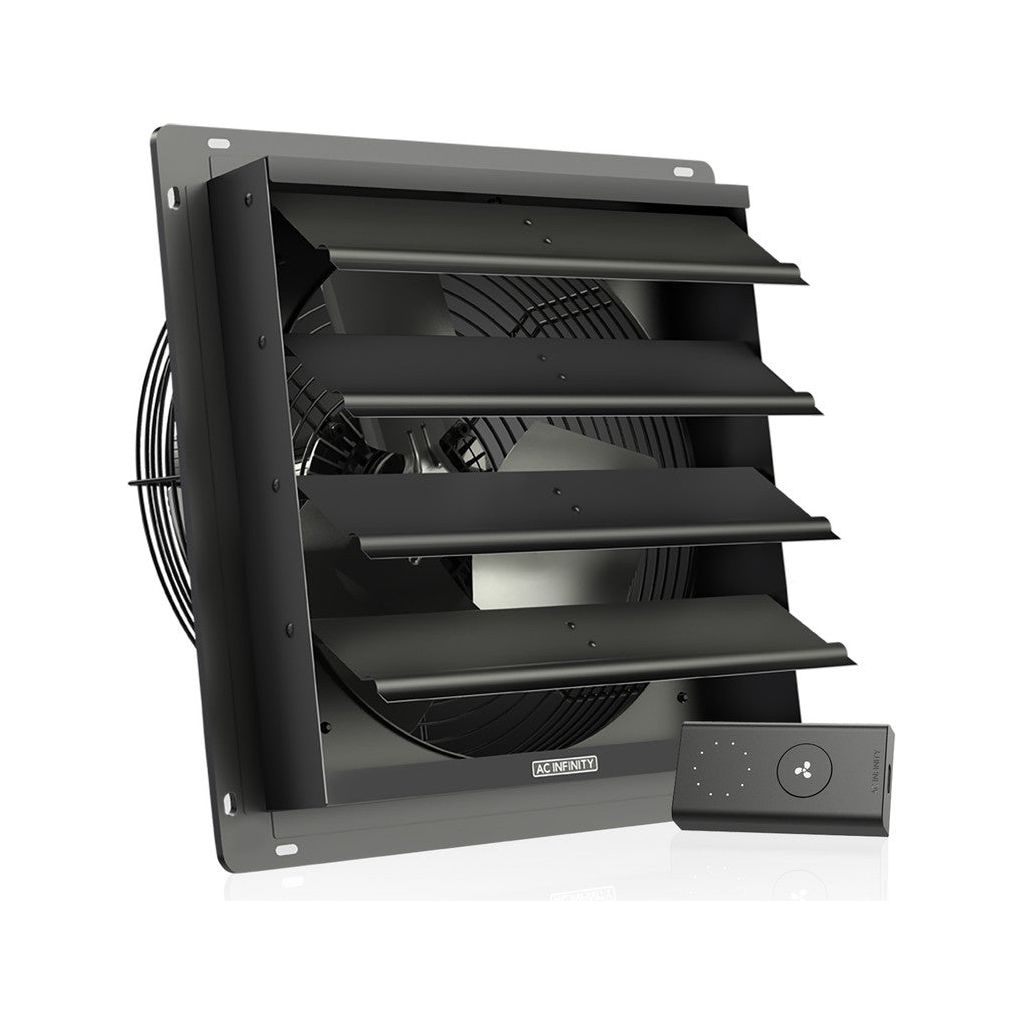

AC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16", Speed Controller

AC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16, Speed Controller FRONT SIDE

AC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16, Speed Controller SIDE VIEWProduct Description

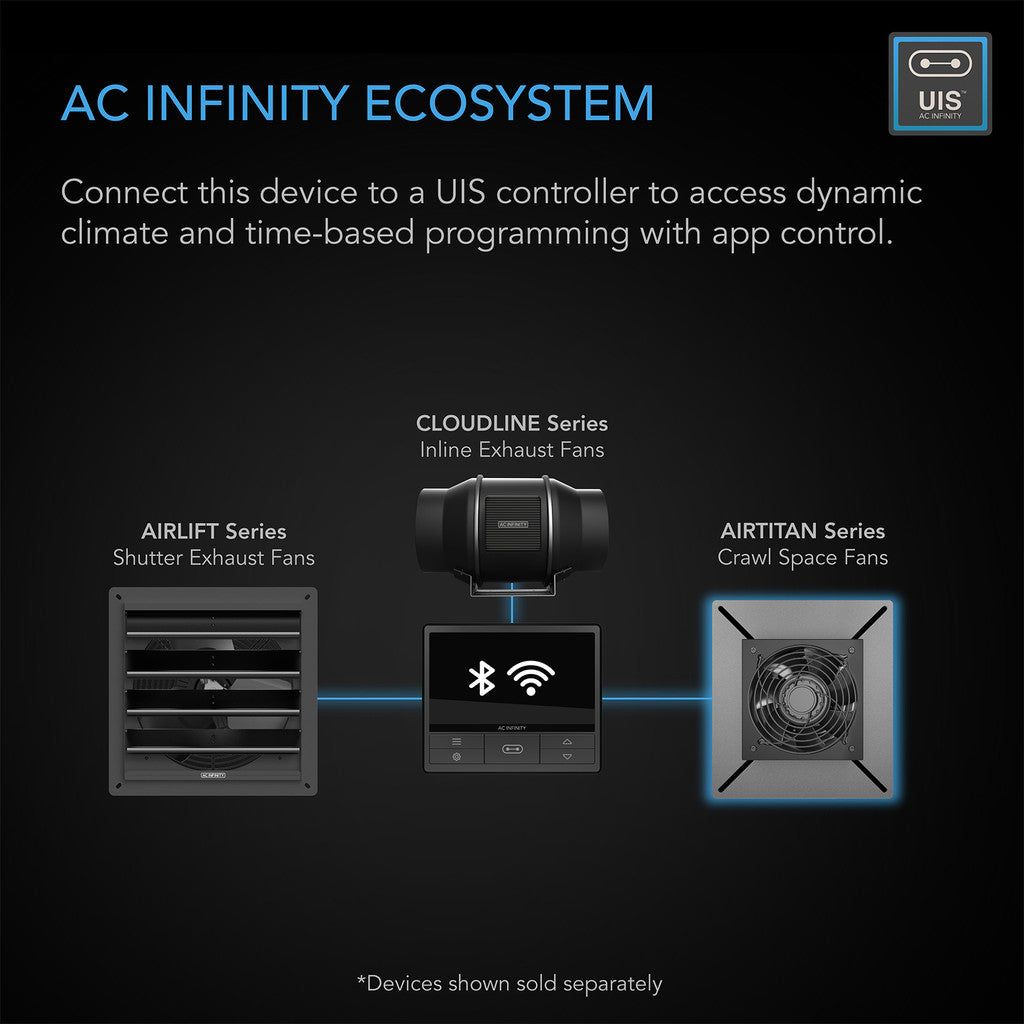

Enhance the ventilation of your workspace with AC Infinity shutter exhaust fan, which is particularly suitable for expansive areas such as warehouses, greenhouses, garages, and workshops. The installation of this fan allows for the regulation of heat, moisture, and odors, thereby fostering a more comfortable and refreshing atmosphere. It is equipped with a PWM-controlled EC motor that ensures energy efficiency and facilitates precise control over fan speed. Additionally, it includes a speed controller that provides up to 10 distinct fan speed levels. Its durable construction features aluminum fan blades, steel wire guards, and lightweight steel shutters, making it an excellent addition to the UIS™ line of devices and controllers aimed at creating an optimal environment.

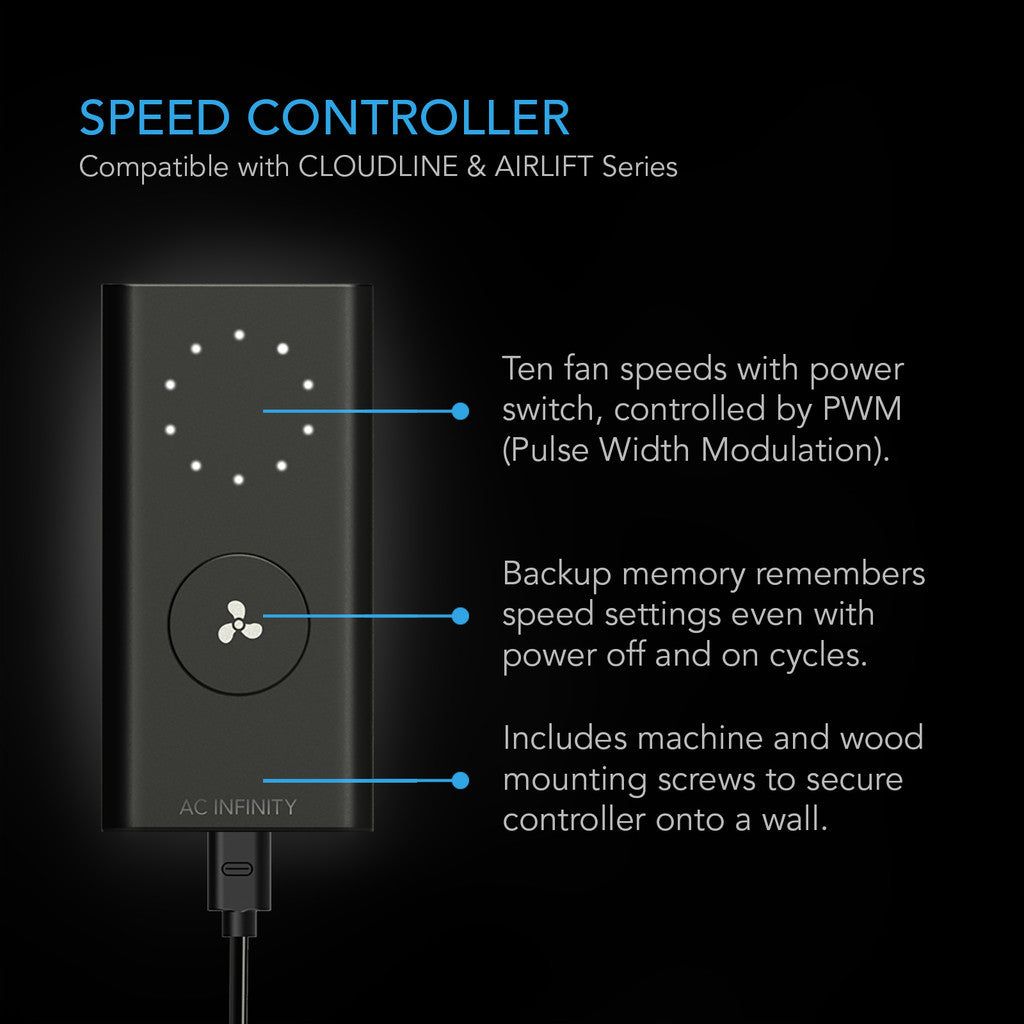

Precision Fan Speed Control

Optimize noise and airflow levels in any environment with this shutter fan's speed controller. Its EC motor, controlled by PWM (Pulse Width Modulation), runs smoothly at low RPM speeds without motor noise. Includes 10 speed options, power switch, and backup memory..

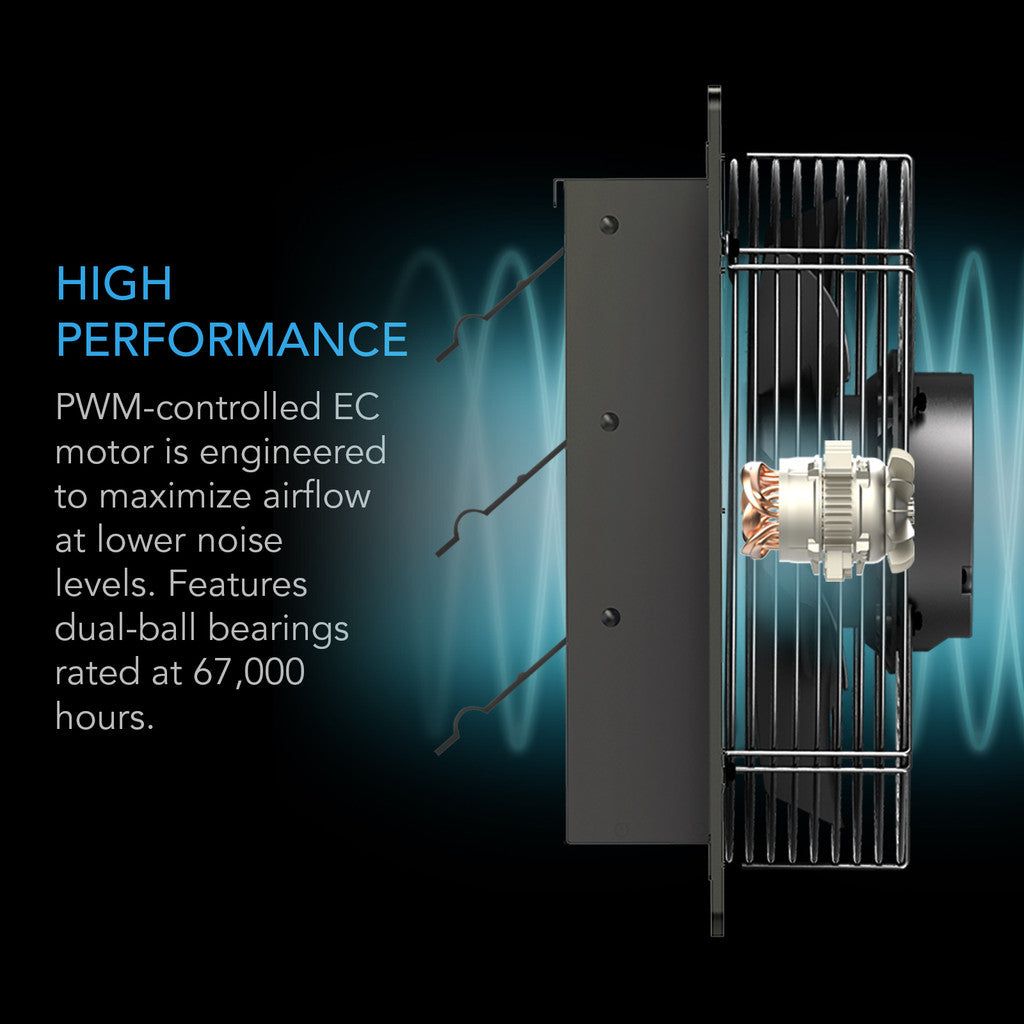

Heavy-Duty Performance

Features steel shutters that are weather and corrosion-resistant, automatically closing when not in use toAC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16, Speed Controller DETAILS prevent dust, debris, and moisture from entering your space. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully enclosed AC Infinity motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.
  • A high-airflow shutter fan designed to remove stale air and ventilate greenhouses, garages, and more.
  • Features a 10-level fan speed controller that utilizes PWM technology to generate precise airflow.
  • Innovative EC motor with PWM control maximizes airflow while reducing energy consumption and noise level.
  • IP44-rated frame features steel shutters and fan blades that block debris while resisting moisture and dust.
  • Fan Size: 16” | Dimensions: 19.09 x 19.09 x 7.72 in. | Airflow: 2560 CFM | Noise: 70 dBA | Bearings: Dual Ball
Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    AIRLIFT S16
   Product Model    AC-ALS16
   UPC Code    819137021464

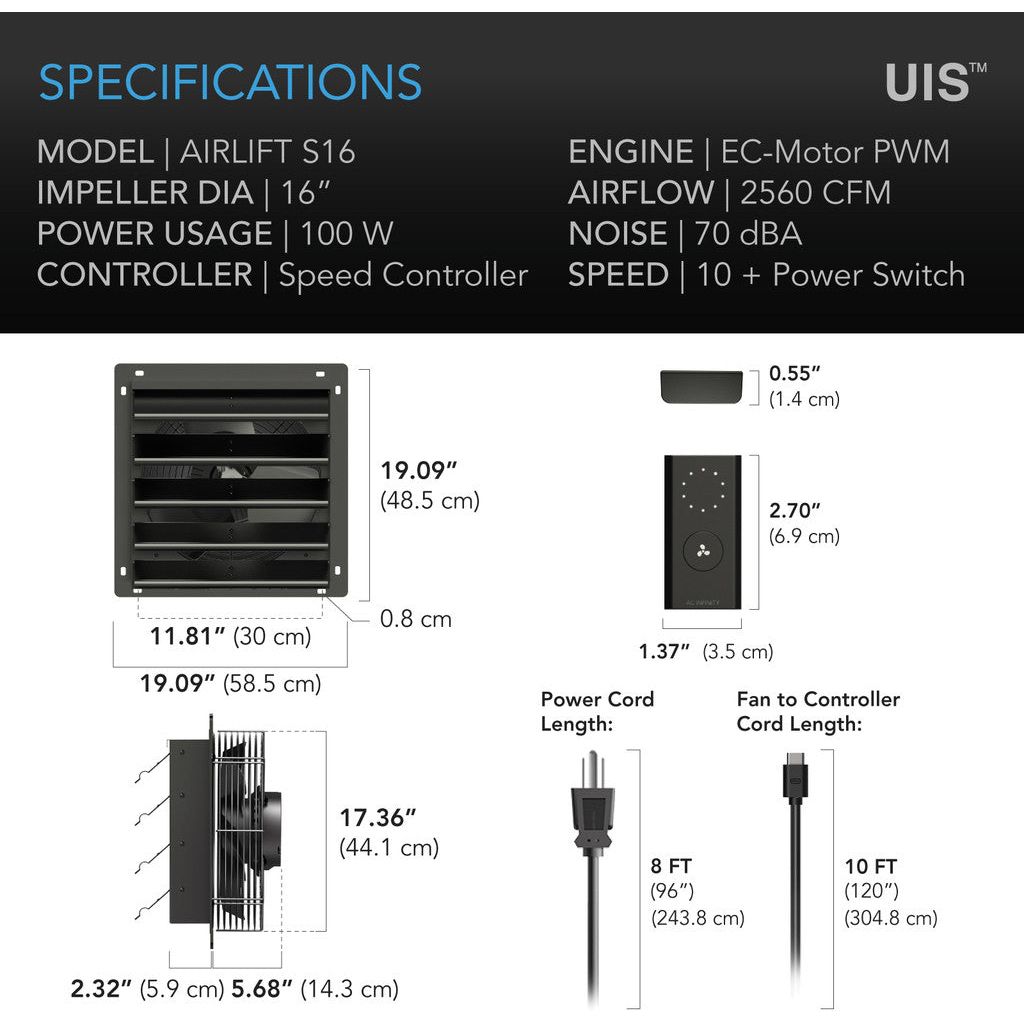

   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    19.09 x 19.09 x 7.72 in (48.5 x 48.5 x 19.6 cm)
   Frontside Enclosure Dimensions    16.77 x 16.77 in (42.6 x 42.6 cm)
   Required Mounting Hole    16.92 x 16.92 in (43.0 x 43.0 cm)
   Hole to Hole Distance    18.11 x 18.11 in (46.0 x 46.0 cm)
   Screw Hole Size    Ø 0.27 in (Ø 0.7 cm)
   Cord Length to Controller    120 in (10 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
   Required Mounting Area    2.95 x 0.51 in. (3.6 x 1.3 cm)
   Hole to Hole Distance    2.87 in. (7.3 cm)
   Screw Hole Size    Ø 0.157 in. (Ø 0.4 cm)
   Cord Length to Plug    96 in. (8 feet)
   Product Performance and Technical Specs
   Total Airflow    2560 CFM
   Total Noise    67 dBA
   Static Pressure    25.9mm-H2O
   Operating Voltage    100-240V AC
   Power    100W
   Current    1.5A
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Fan Bearings    Dual Ball
   L10 Life Expectancy    67,000 Hours
   CE Certification (Whole Product)
    CE Certification (Whole Product) PDF
   Product Manual
   Product Manual
    Installation Manual PDF
