AC Infinity Air Filtration Kit PRO 6", Inline Fan with Smart Controller, Carbon Filter & Ducting Combo

Product Description

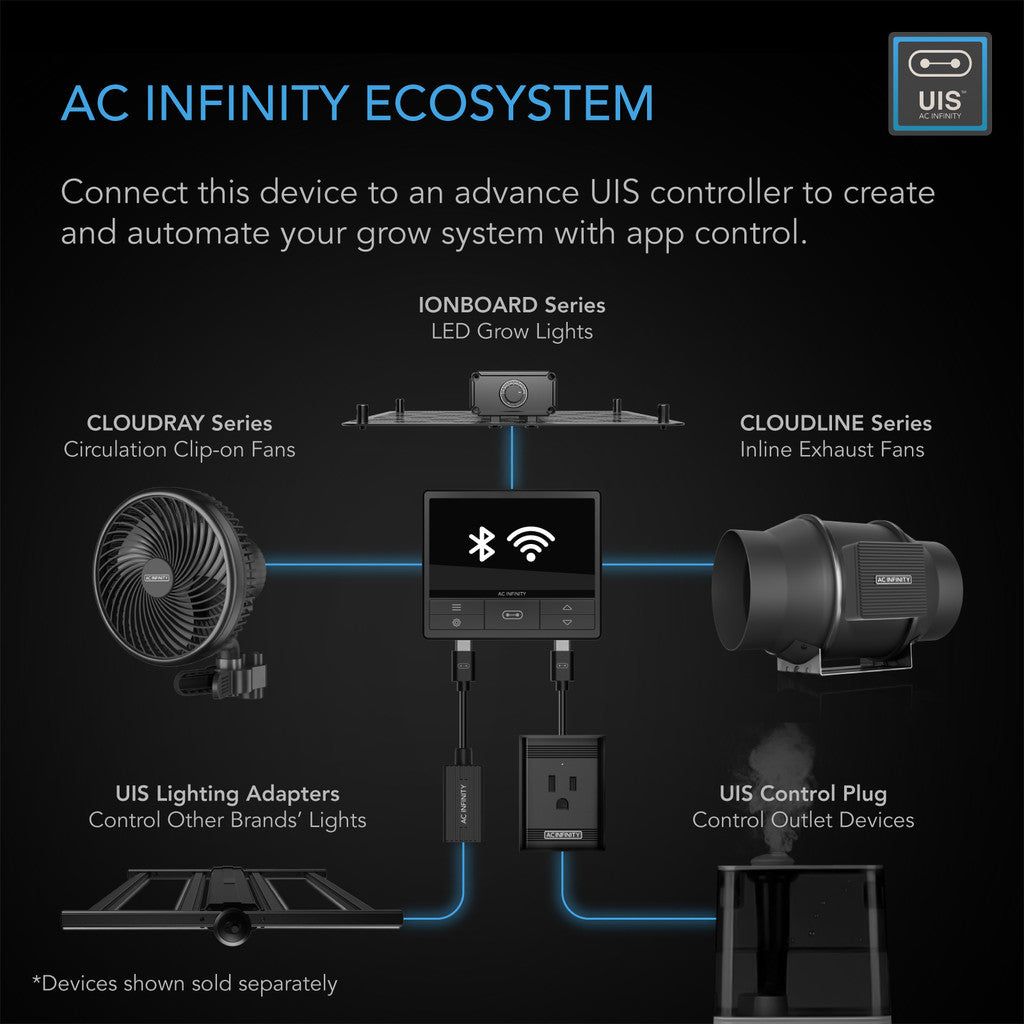

AC Infinity grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential components, this package is designed to facilitate the swift initiation of your grow build while eliminating the uncertainty associated with individual purchases. This inline fan kit includes the CLOUDLINE PRO Series fan, which provides a robust yet quieter performance. It is complemented by a rust-resistant carbon filter featuring a gunmetal finish, utilizing Australian virgin charcoal to effectively prevent odors from escaping your grow tent. The two components are interconnected through a set of flexible ducting that comprises four layers of protection, ensuring proper airflow direction. Included accessories encompass duct clamps, prefilter cloth, rope clip hangers, and hanging straps to ensure a seamless installation process. This product is part of the UIS™ platform of grow devices and smart controllers, which are designed to integrate with one another to create your optimal environment.

Intelligent Programming

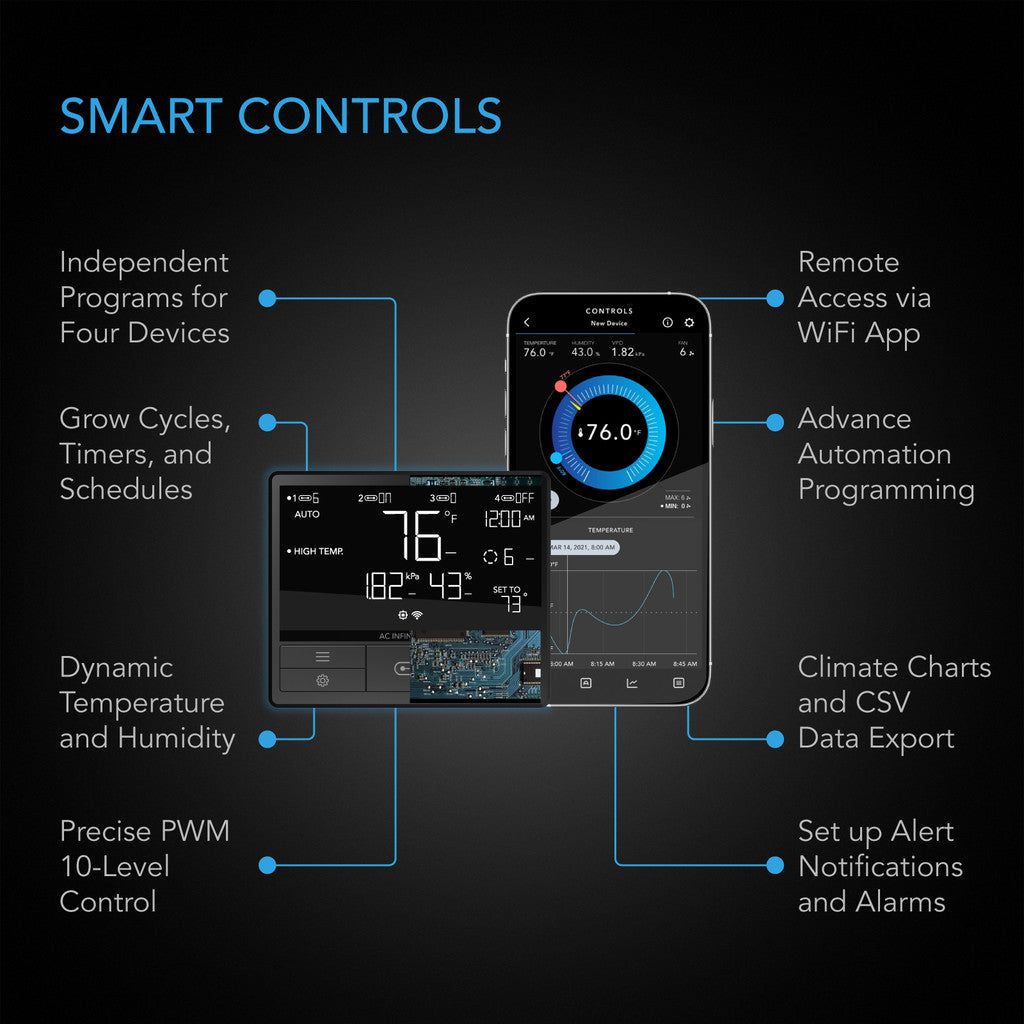

CONTROLLER 69 PRO distributes smart programming to the quiet inline fan to keep temperature, humidity, and VPD in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

Quiet and Energy-Efficient Design

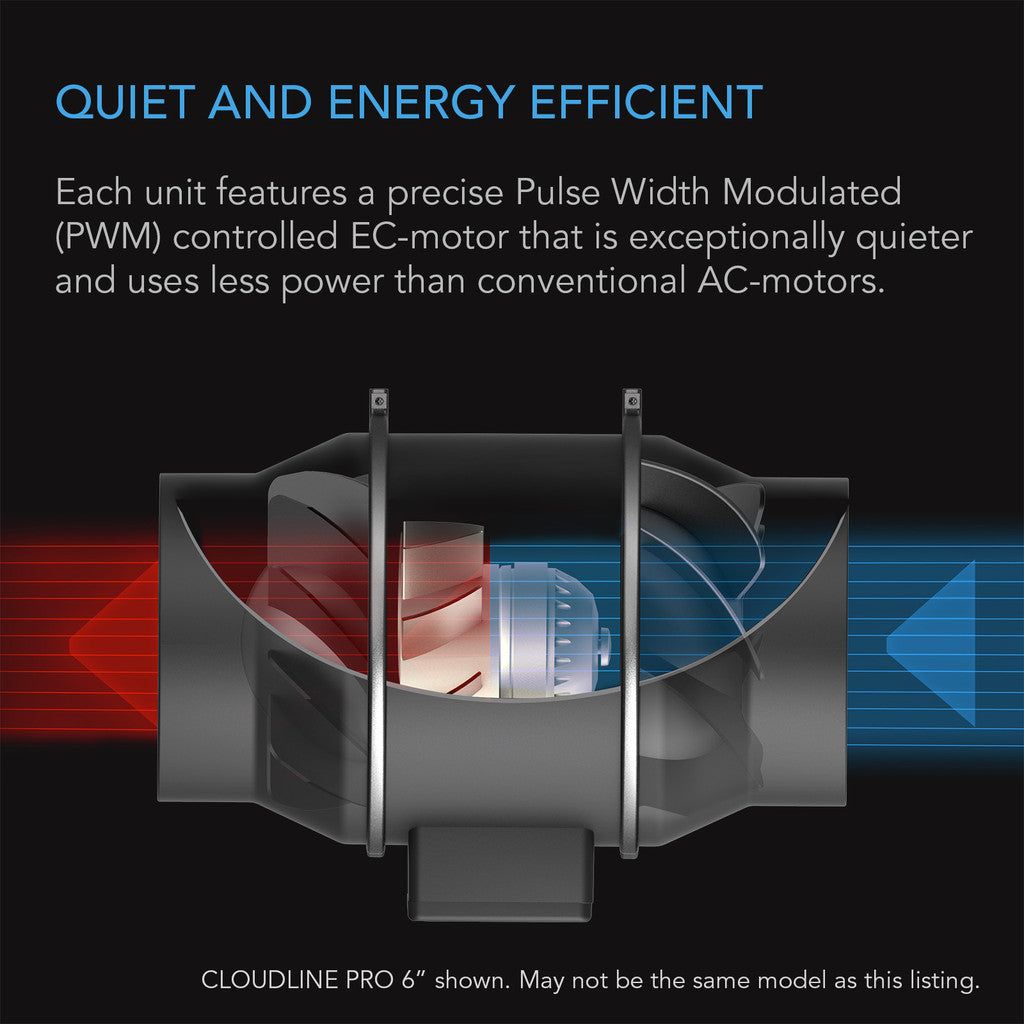

The included CLOUDLINE PRO Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this AC Infinity inline fan a 67,000-hour lifespan which is backed by its IP-44 sealing that resists dust and splashing liquids.

Premium Grade Carbon

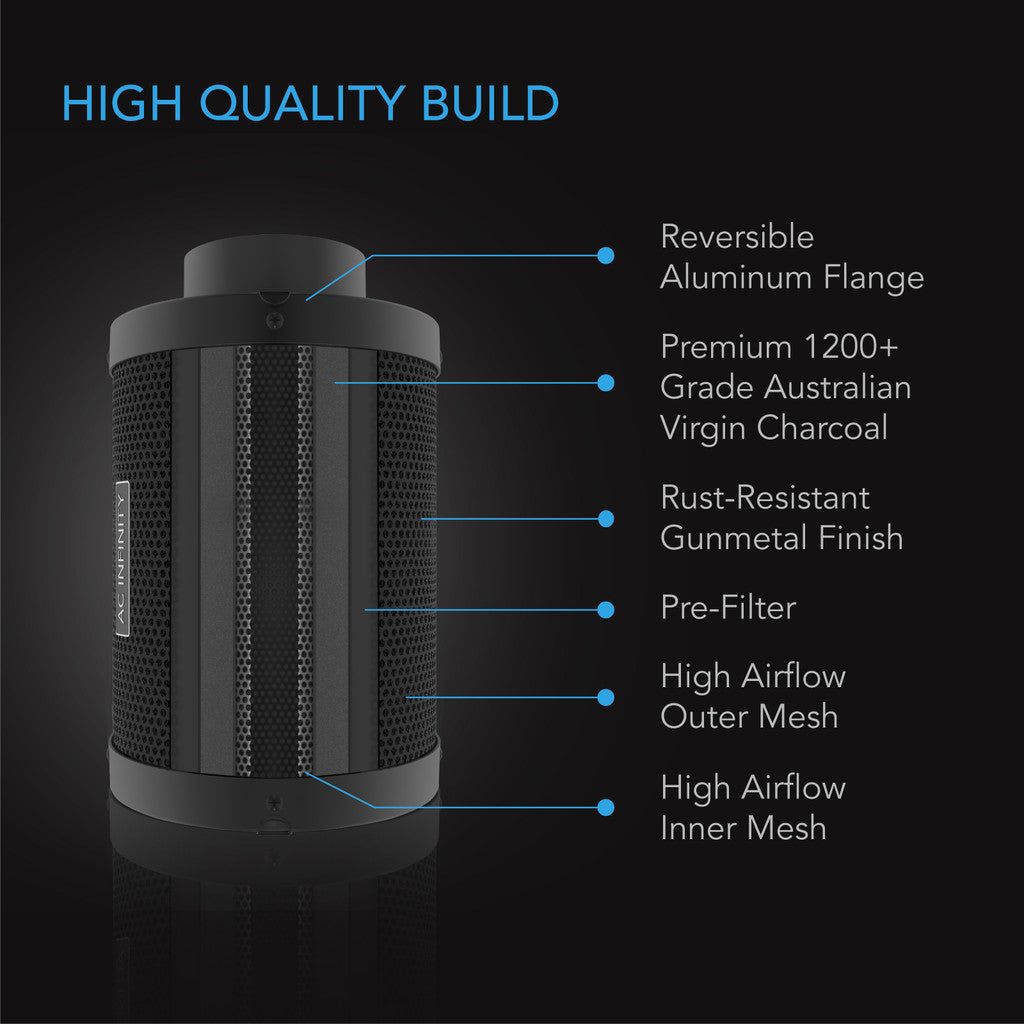

The duct carbon filter effectively blocks out unwanted odors and chemicals using its bed of premium Australian charcoal. Featuring a 1200+ IAV rating, the activated carbon supports clean airflow more efficiently thanks to its increased adsorption rate and extended life rating. The filter’s durable steel mesh body is protected by a powder-coated gunmetal finish to better defend against rust and corrosion in high-humidity growing environments.

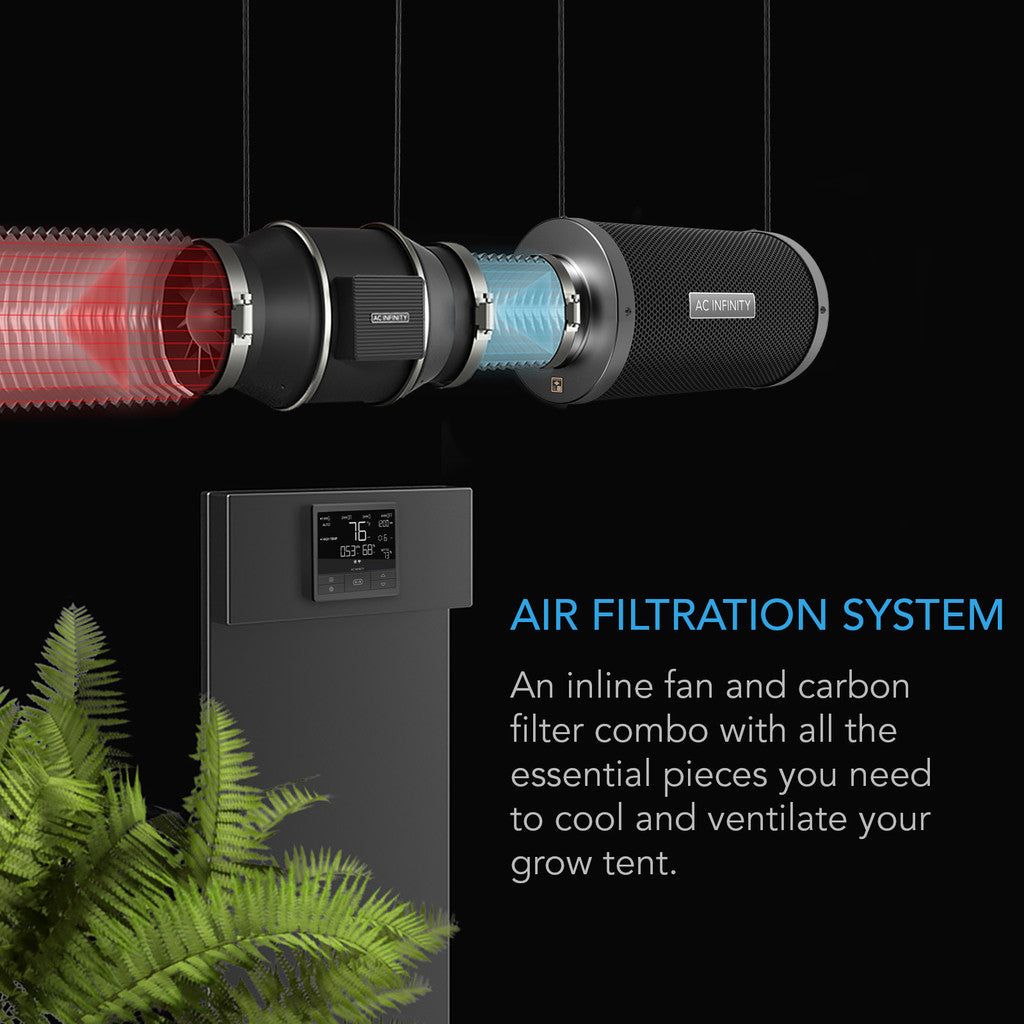

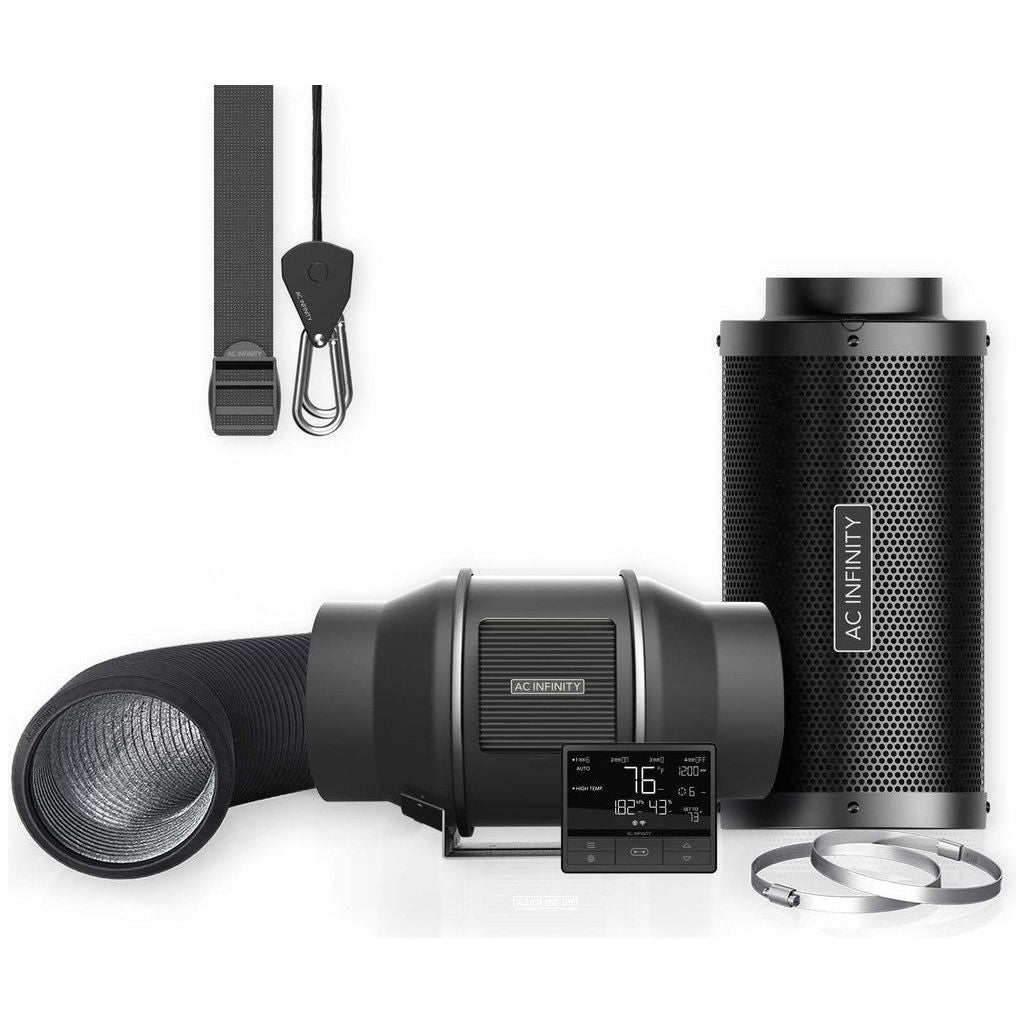

An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
Features the CLOUDLINE PRO inline fan with a PWM-controlled EC motor for quiet and energy efficient ventilation.
Smart controller sets triggers, schedules, and grow cycles. Remotely access via WiFi app to enable automation.
Australian carbon filter with flexible ducting traps odors while routing stale air away from your grow tent.
Kit Duct Size: 6” | Fan Airflow: 402 CFM | Noise 32 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	Air Filtration Kit PRO 6"
Product Model	AC-FKT6
UPC Code	819137022928
Product Manual
Product Manual	PDF

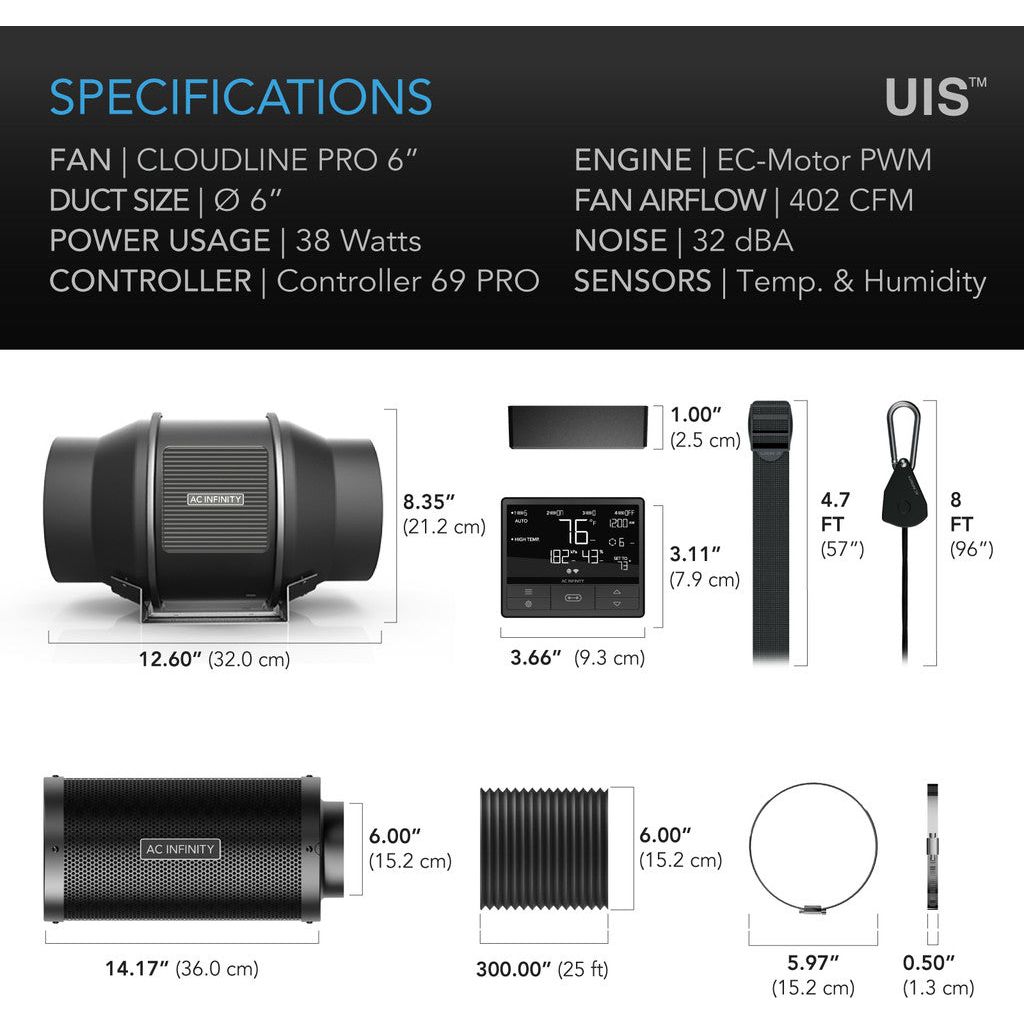

Product and Mounting Dimensions - Fan Unit
Duct Size	6"
Total Dimensions	7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
Mounting Hole-To-Hole Distance	3.15 x 2.36 in. (8.0 x 6.0 cm)
Screw Hole Size	Ø 0.236 in. (Ø 0.6 cm)
Cord Length to Controller	72 in. (6 feet)
Cord Length to Plug	72 in. (6 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Product Performance and Technical Specs - Fan Unit
Total Airflow	402 CFM
Total Noise	34 dBA
Max Speed	2800 RPM
Static Pressure	394 Pa
Voltage	100-240V AC
Frequency	50/60Hz
Max Power Draw	70 W
Average Power Usage	38 W
Current	0.94 A
Power Connector Type	US Plug (NEMA 1-15 Type-A)
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	CE, RoHS
CE Certification (Fan Only)	PDF
ETL Cert. (Fan Only)	PDF
RoHS Cert. (Fan Only)	PDF
SAA Cert. (Fan Only)	PDF
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size	6"
Total Dimensions	15.94 x 8.93 in. (40.5 x 22.7 cm)
Flange Length	1.57 in. (4.0 cm)
Product Performance and Technical Specs - Carbon Filter
Flange Material	Aluminum
Flange Design	Reversible
Mesh Material	Galvanized Steel
Carbon Type	Australian Virgin RC412
Carbon Grade	1200+ IAV
Carbon Thickness	60mm
Maximum Airflow	410 CFM
Product Dimensions - Ducting
Ducting Size	6 in. (10.2 cm)
Length	300 in. (25 ft)
Product Performance and Technical Specs - Ducting
Outer Layer	PVC Thermoplastic
Inner Material	Aluminum Foil
Internal Structure	Spiral Steel-Wire
