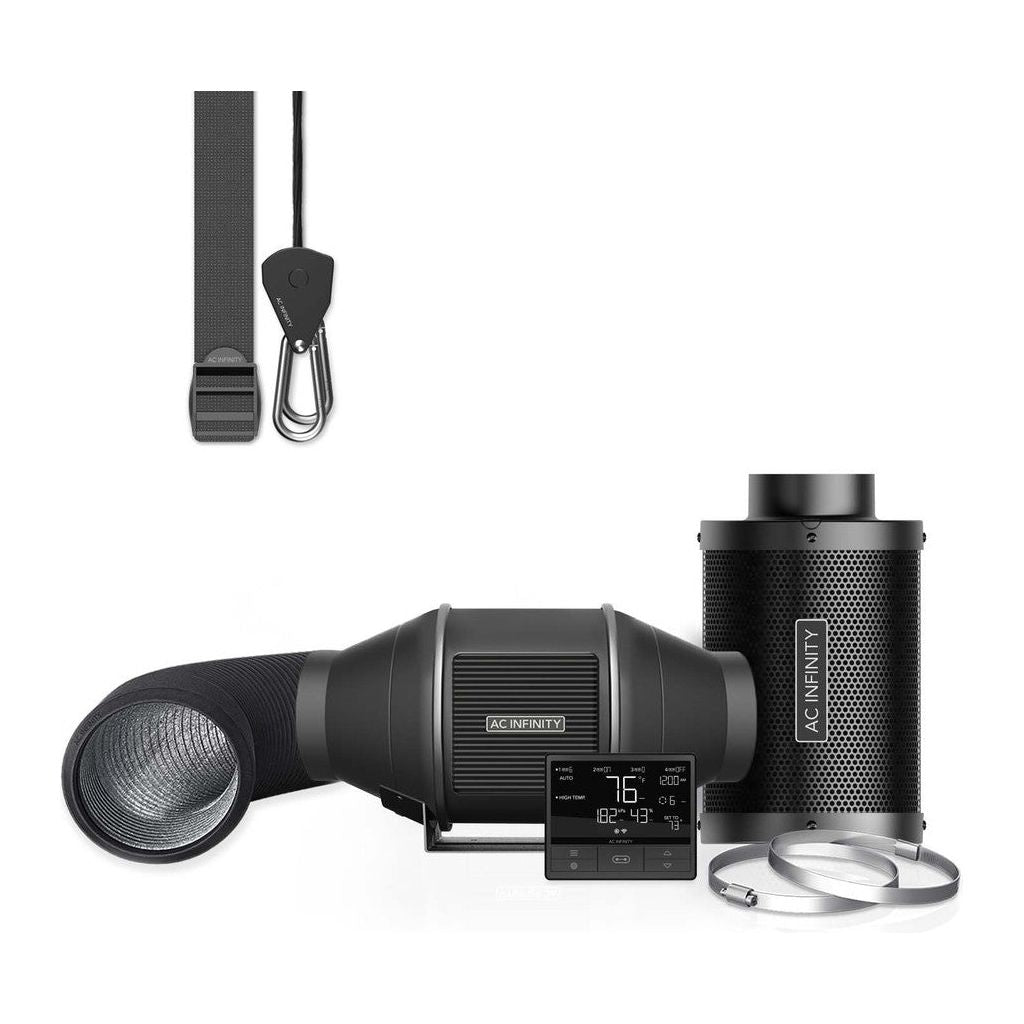

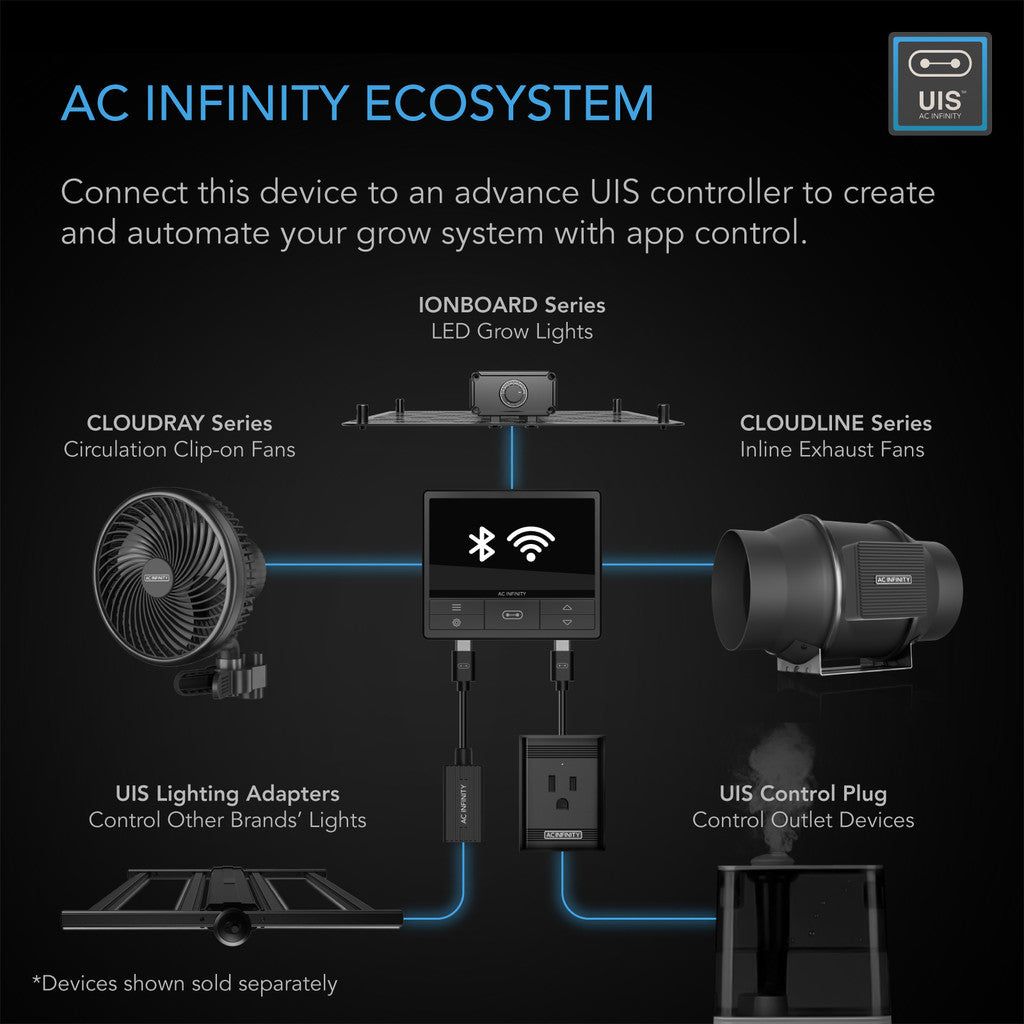

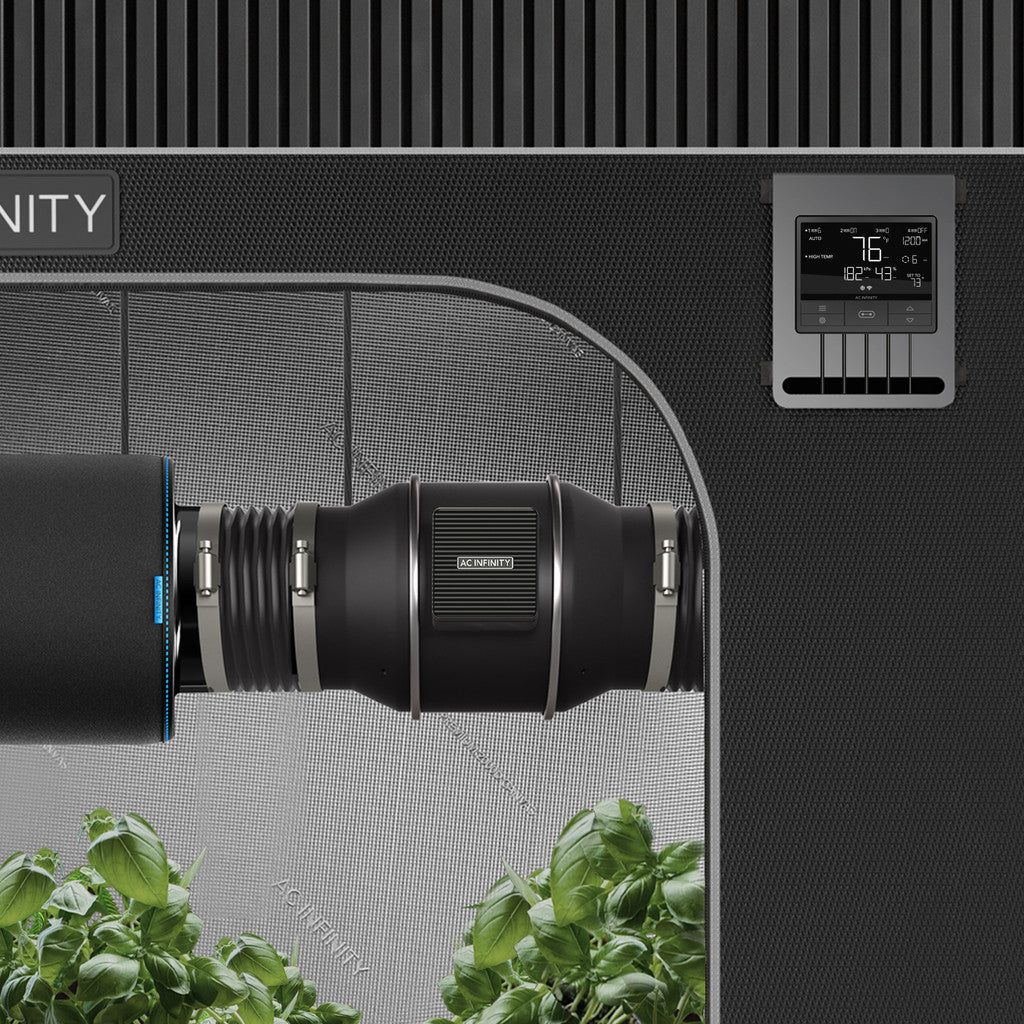

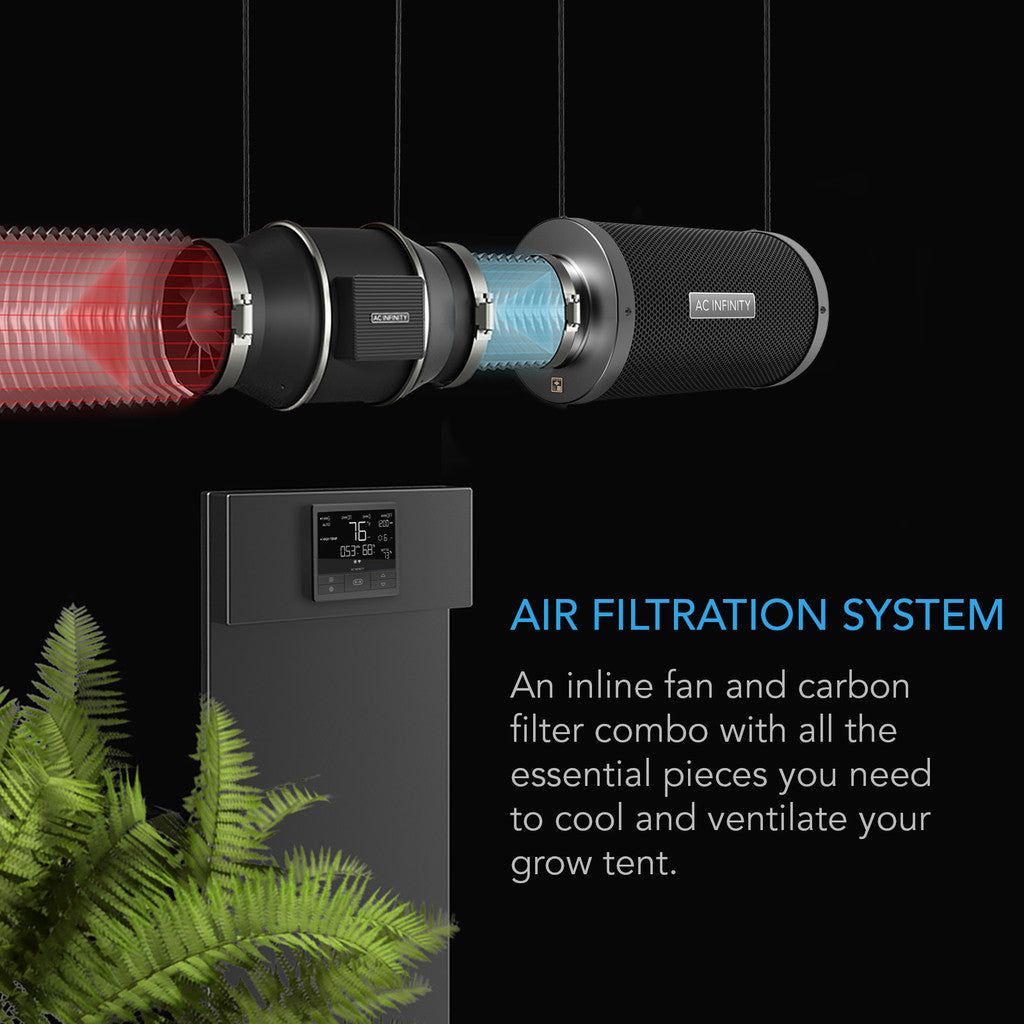

AC Infinity air filtration system with all the necessary inline components you need to ventilate your grow space. This air filtration system for grow tents encompasses all the essential inline components required for effective ventilation of your cultivation area. By assembling these vital components, this package facilitates a prompt initiation of your grow setup while eliminating the uncertainties associated with individual purchases. This inline fan kit features the CLOUDLINE PRO Series fan, known for its powerful yet quieter operation. It is coupled with a rust-resistant carbon filter, finished in gunmetal and utilizing Australian virgin charcoal to effectively prevent odors from escaping your grow tent. These two elements are interconnected through a set of flexible ducting, which includes four layers of protection to ensure proper airflow direction. Complementary accessories consist of duct clamps, prefilter cloth, rope clip hangers, and hanging straps, all contributing to the installation process. This product is a component of the UIS™ platform, which encompasses grow devices and smart controllers designed to integrate seamlessly with one another to create your optimal environment.

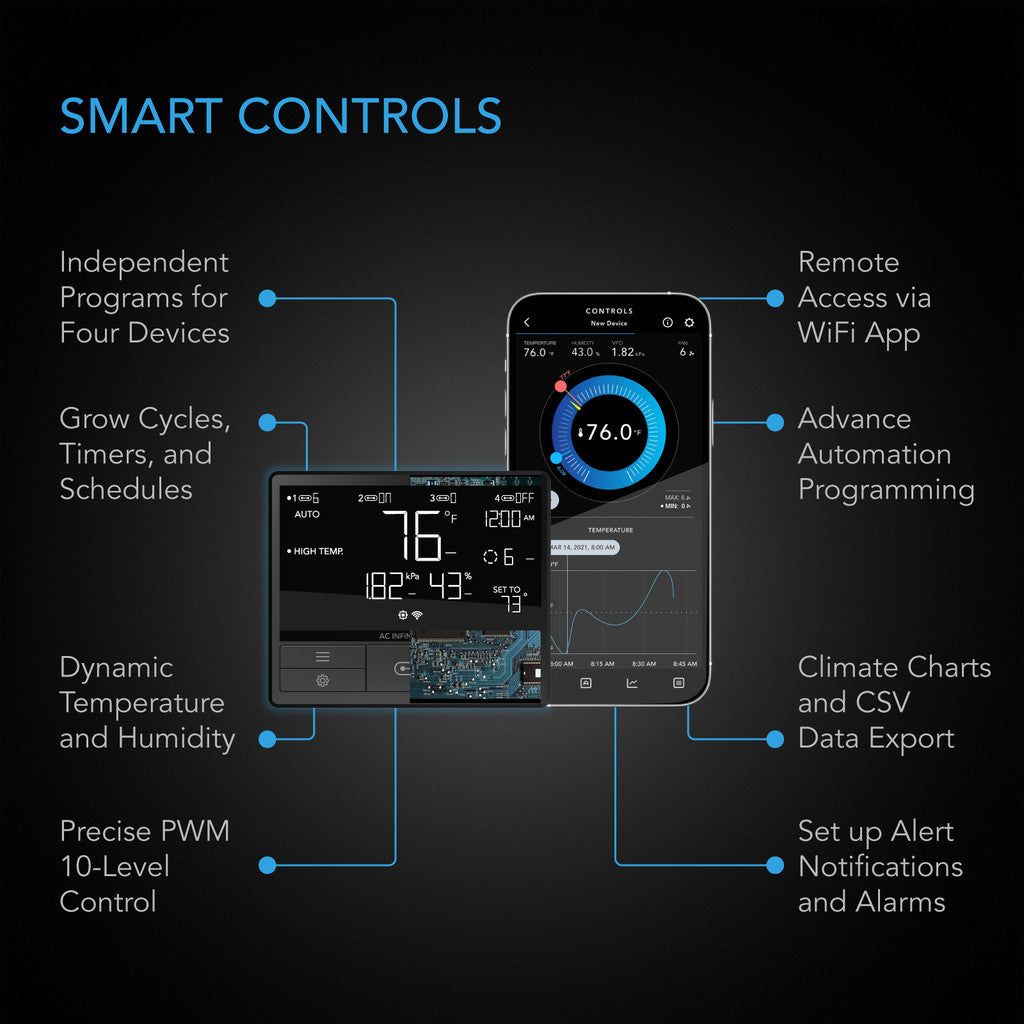

CONTROLLER 69 PRO distributes smart programming to the quiet inline fan to keep temperature, humidity, and VPD in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Remotely access your devices, unlock advance programs, set alarms, notifications, view historical charts, and export CSV data.

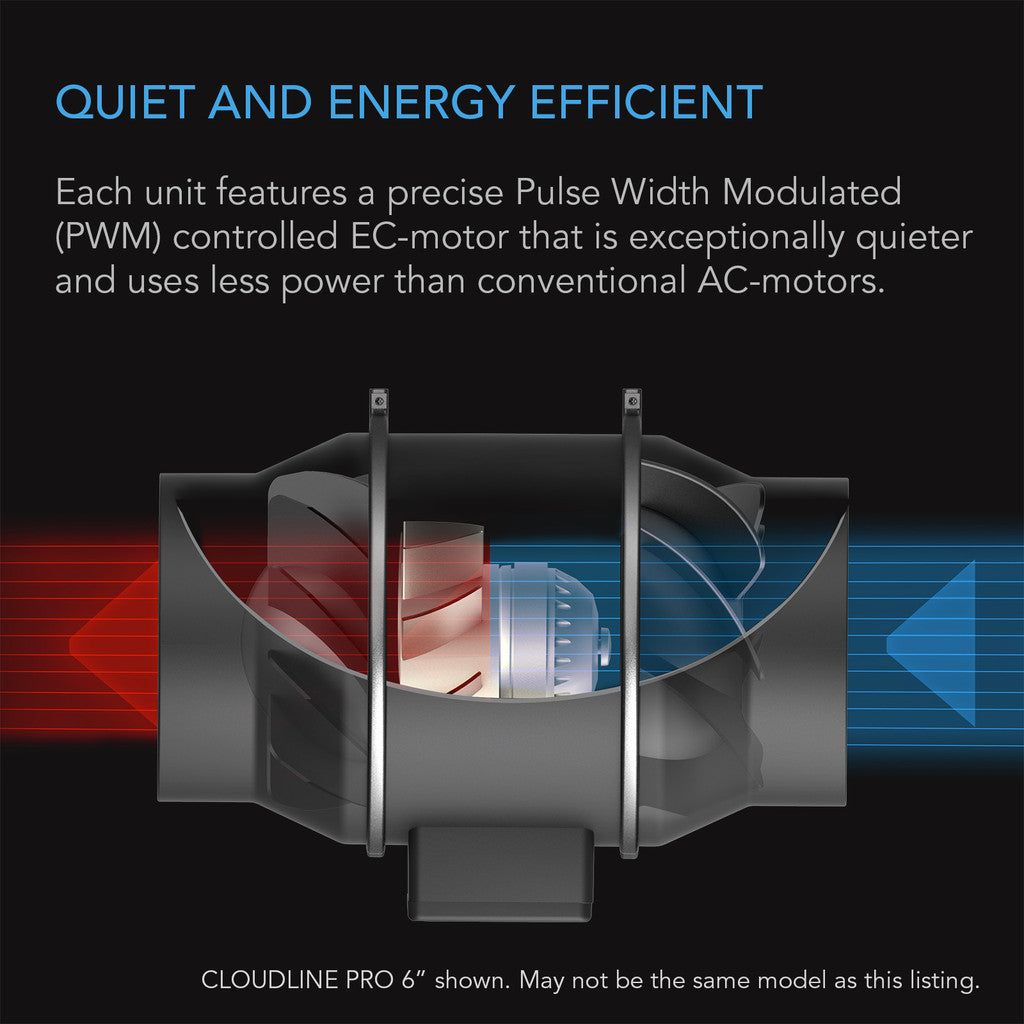

The included CLOUDLINE PRO Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 sealing that resists dust and splashing liquids.

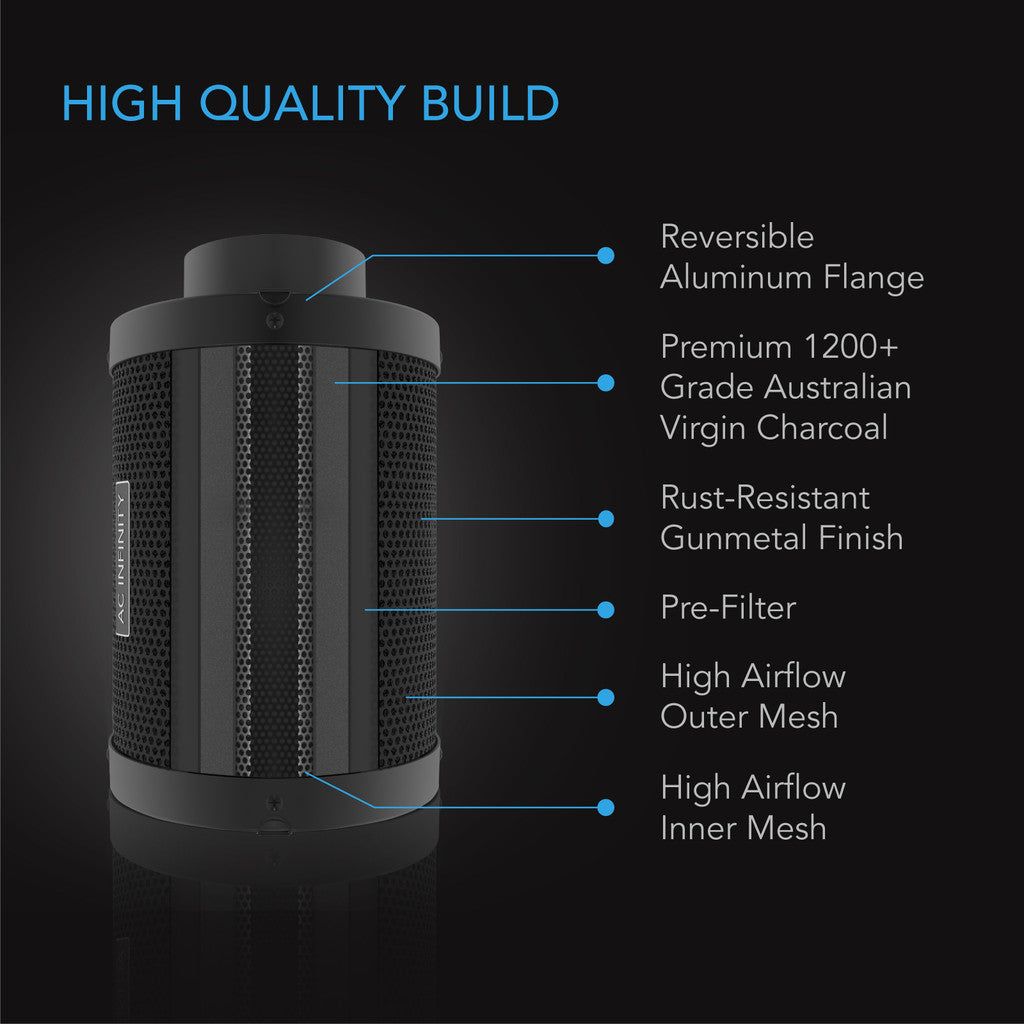

The duct carbon filter effectively blocks out unwanted odors and chemicals using its bed of premium Australian charcoal. Featuring a 1200+ IAV rating, the activated carbon supports clean airflow more efficiently thanks to its increased adsorption rate and extended life rating. The AC Infinity filter’s durable steel mesh body is protected by a powder-coated gunmetal finish to better defend against rust and corrosion in high-humidity growing environments.
Product Identification | |
Manufacturer | AC Infinity Inc. |
Product Name | Air Filtration Kit PRO 4" |
Product Model | AC-FKT4 |
UPC Code | 819137022911 |
Product Manual | |
Product Manual |
|

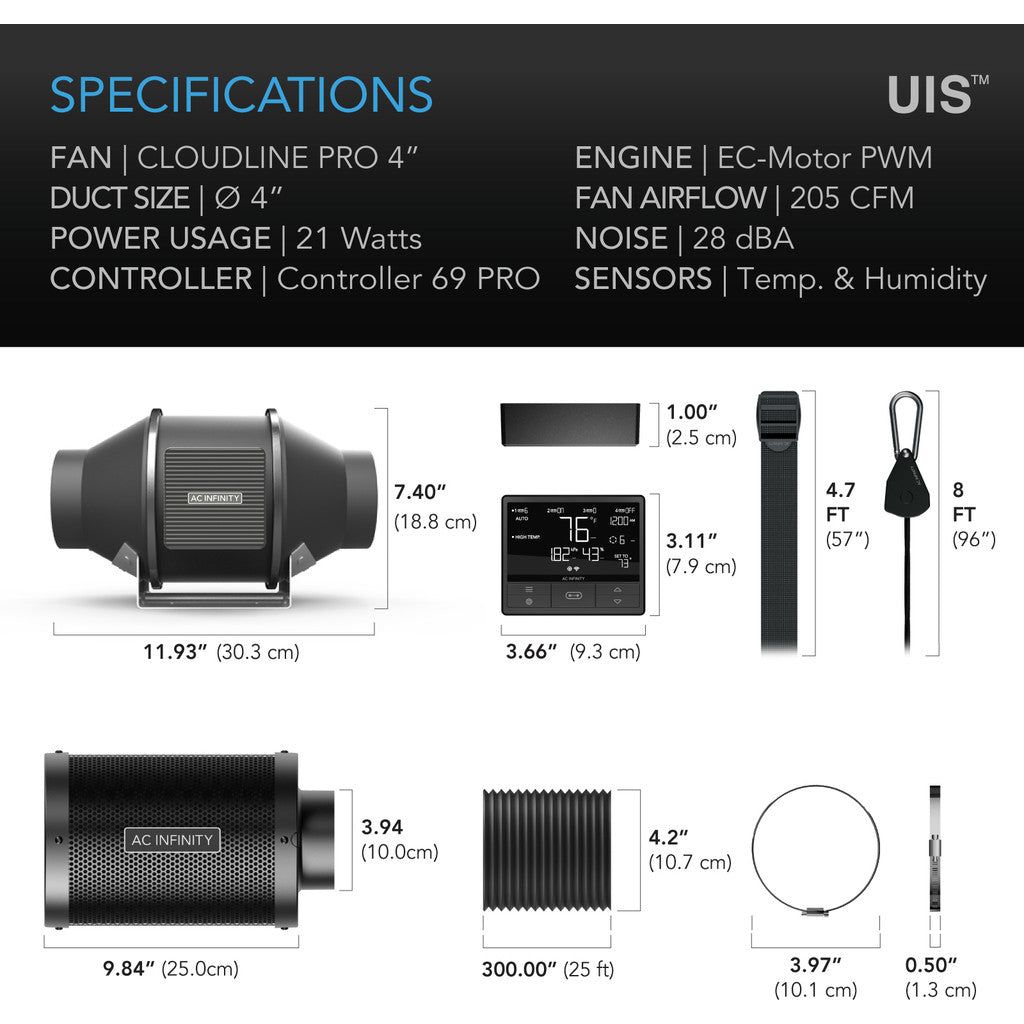

Product and Mounting Dimensions - Fan Unit | |
Duct Size | 4" |
Total Dimensions | 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm) |
Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
Screw Hole Size | Ø 0.197 in. (Ø 0.5 cm) |
Cord Length to Controller | 72 in. (6 feet) |
Cord Length to Plug | 72 in. (6 feet) |
Product and Mounting Dimensions - Controller | |
Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
Product Performance and Technical Specs - Fan Unit | |
Total Airflow | 205 CFM |
Total Noise | 29 dBA |
Max Speed | 2800 RPM |
Static Pressure | 324 Pa |
Voltage | 100-240V AC |
Frequency | 50/60Hz |
Max Power Draw | 28 W |
Average Power Usage | 21 W |
Current | 0.4 A |
Power Connector Type | US Plug (NEMA 1-15 Type-A) |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 0 to 140°F |
Ingress Protection | IP 44 |
Fan Bearings | Dual Ball |
Mounting Positions | Horizontal or Vertical |
L10 Life Expectancy | 67,000 Hours |
Fan Quality Approvals | CE, RoHS |
CE Certification (Fan Only) |
|
ETL Cert. (Fan Only) |
|
RoHS Cert. (Fan Only) |
|
SAA Cert. (Fan Only) |
|
Product and Mounting Dimensions - Carbon Filter | |
Duct Opening Size | 4" |
Total Dimensions | 13.35 x 6.97 in. (33.3 x 17.7 cm) |
Flange Length | 1.46 in. (3.7 cm) |
Product Performance and Technical Specs - Carbon Filter | |
Flange Material | Aluminum |
Flange Design | Reversible |
Mesh Material | Galvanized Steel |
Carbon Type | Australian Virgin RC412 |
Carbon Grade | 1200+ IAV |
Carbon Thickness | 38mm |
Maximum Airflow | 210 CFM |
Product Dimensions - Ducting | |
Ducting Size | 4 in. (10.2 cm) |
Length | 300 in. (25 ft) |
Product Performance and Technical Specs - Ducting | |
Outer Layer | PVC Thermoplastic |
Inner Material | Aluminum Foil |
Internal Structure | Spiral Steel-Wire |
