AC Infinity Air Filtration Kit 8”, Inline Fan with Speed Controller, Carbon Filter & Ducting Combo

Product Description

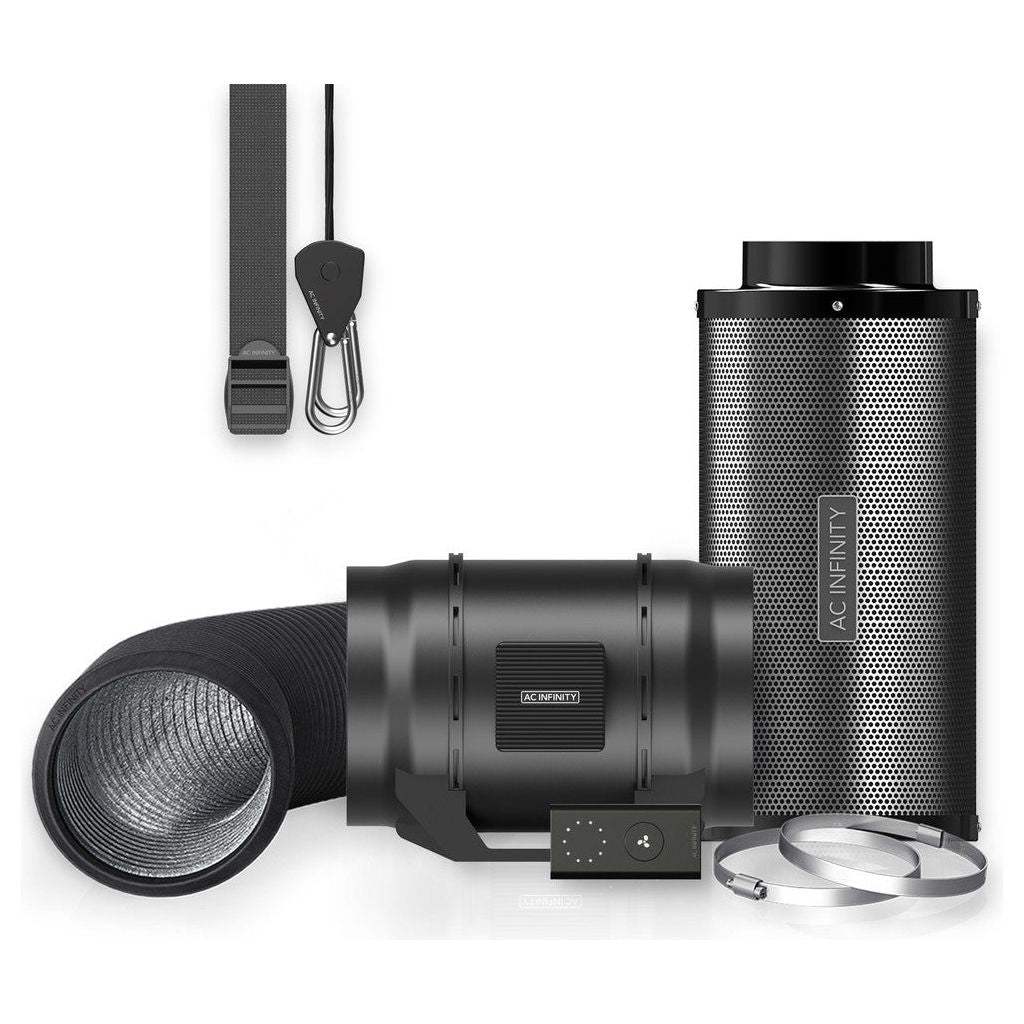

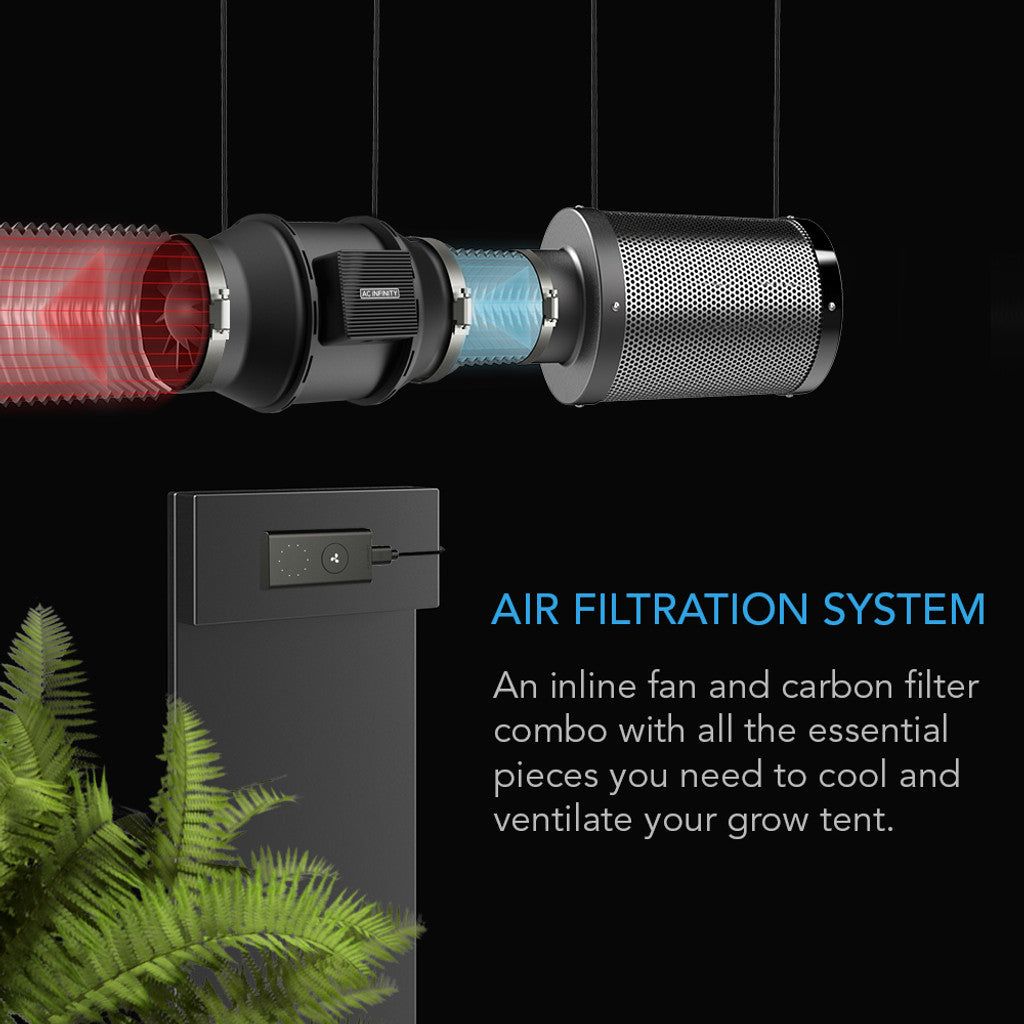

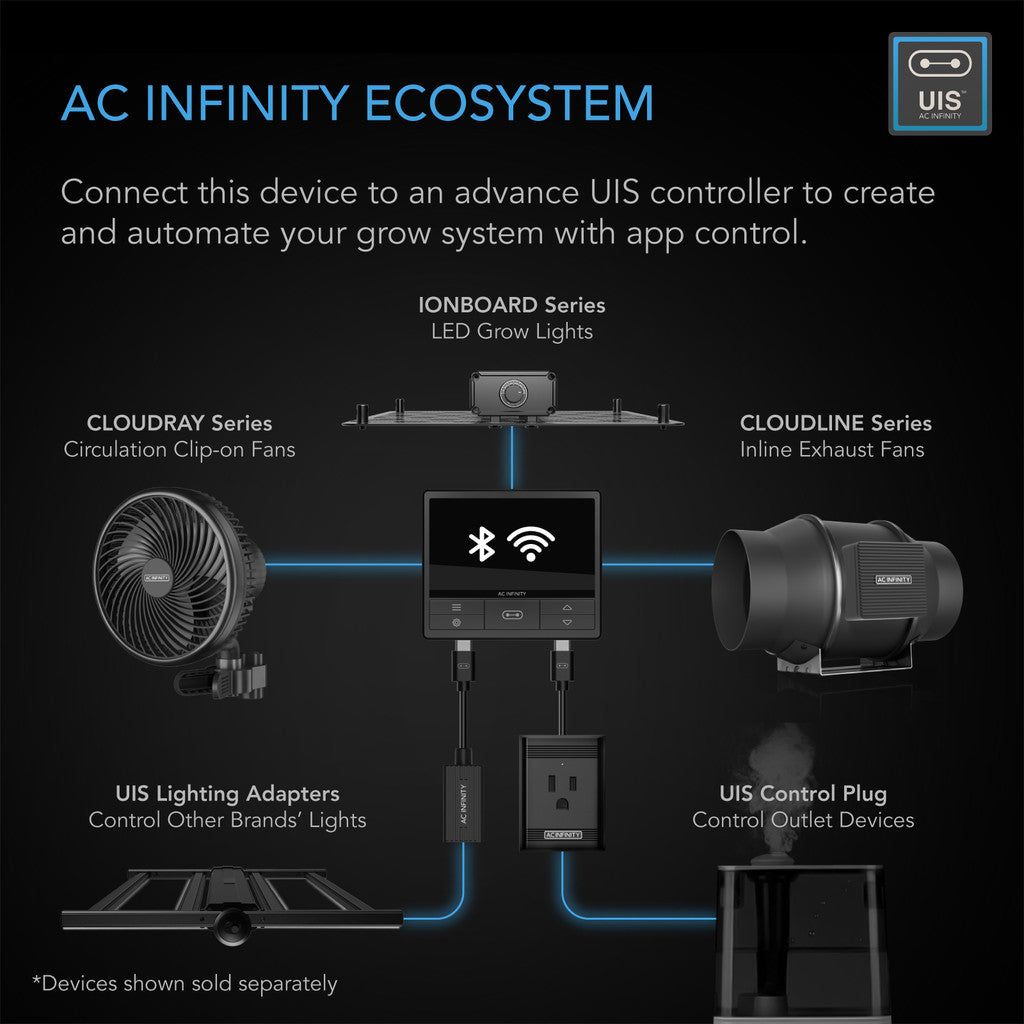

A grow tent air filtration system from AC Infinity is equipped with all the essential inline components necessary for ventilating your growing space. By assembling these critical pieces, this package will facilitate the prompt initiation of your grow setup while eliminating the uncertainty associated with purchasing items individually. This inline fan kit includes the CLOUDLINE Series fan, which features a 10-speed controller and is capable of delivering robust yet quieter performance. It is complemented by a carbon filter utilizing Australian virgin charcoal to effectively prevent odors from escaping your grow tent. These two components are interconnected by a set of flexible ducting that comprises four layers of protection to ensure proper airflow direction. Accessories provided include duct clamps, pre-filter cloth, rope clip hangers, and hanging straps to complete the installation process. This product is a component of the UIS™ platform of grow devices and smart controllers, designed for seamless integration with one another to achieve your ideal growing environment.

Inline Fan

The grow tent ventilation kit is headlined by the CLOUDLINE Series of inline duct fans, featuring a 10-speed fan controller. Using stator blades and dual hydrodynamic wind circles, the CLOUDLINE achieves high-performance airflow in most restrictive applications thanks to its mixed-flow design. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. This AC Infinity frame is crafted with a plastic mounting base to diminish noise due to fan vibration and can be mounted in any direction. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 rating, resisting dust and splashing liquids.

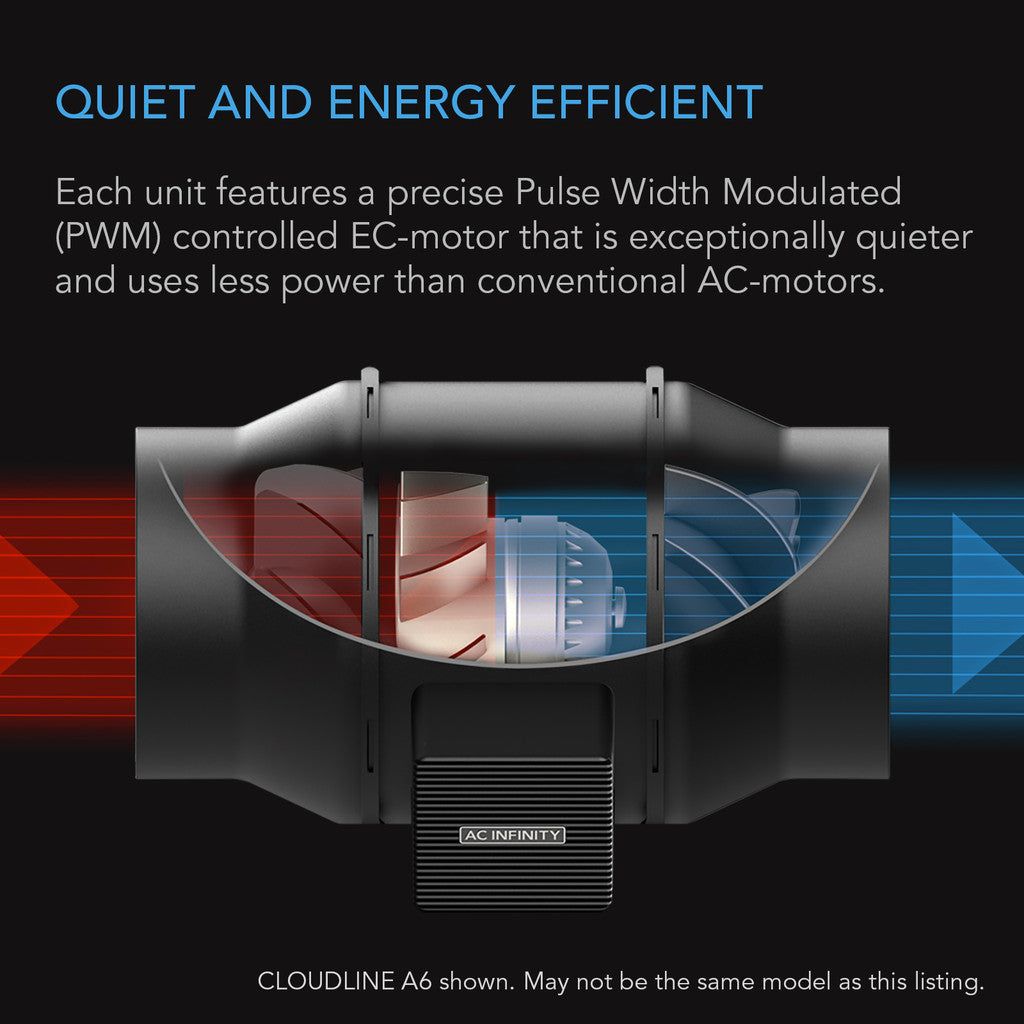

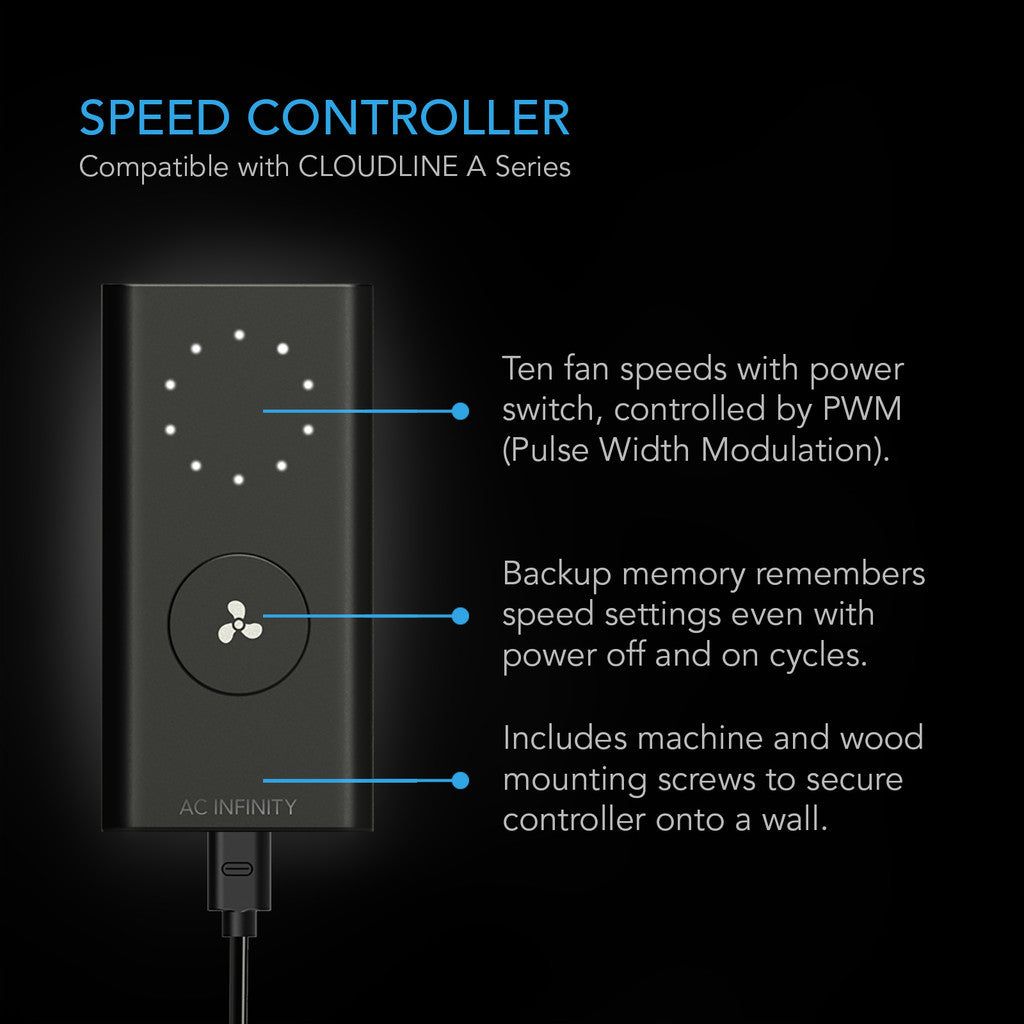

A 10-speed fan controller is paired with this inline fan to optimize airflow levels and noise in many applications. The fan’s PWM controls enable it to smoothly set fan speeds and operate at extremely low RPMs with no motor noise. Along with this wired speed controller, the CLOUDLINE is also compatible with the following controllers:

B-Series Temperature Controller
CONTROLLER UNC529
CONTROLLER 69
CONTROLLER 67
CONTROLLER 63

Carbon Filter

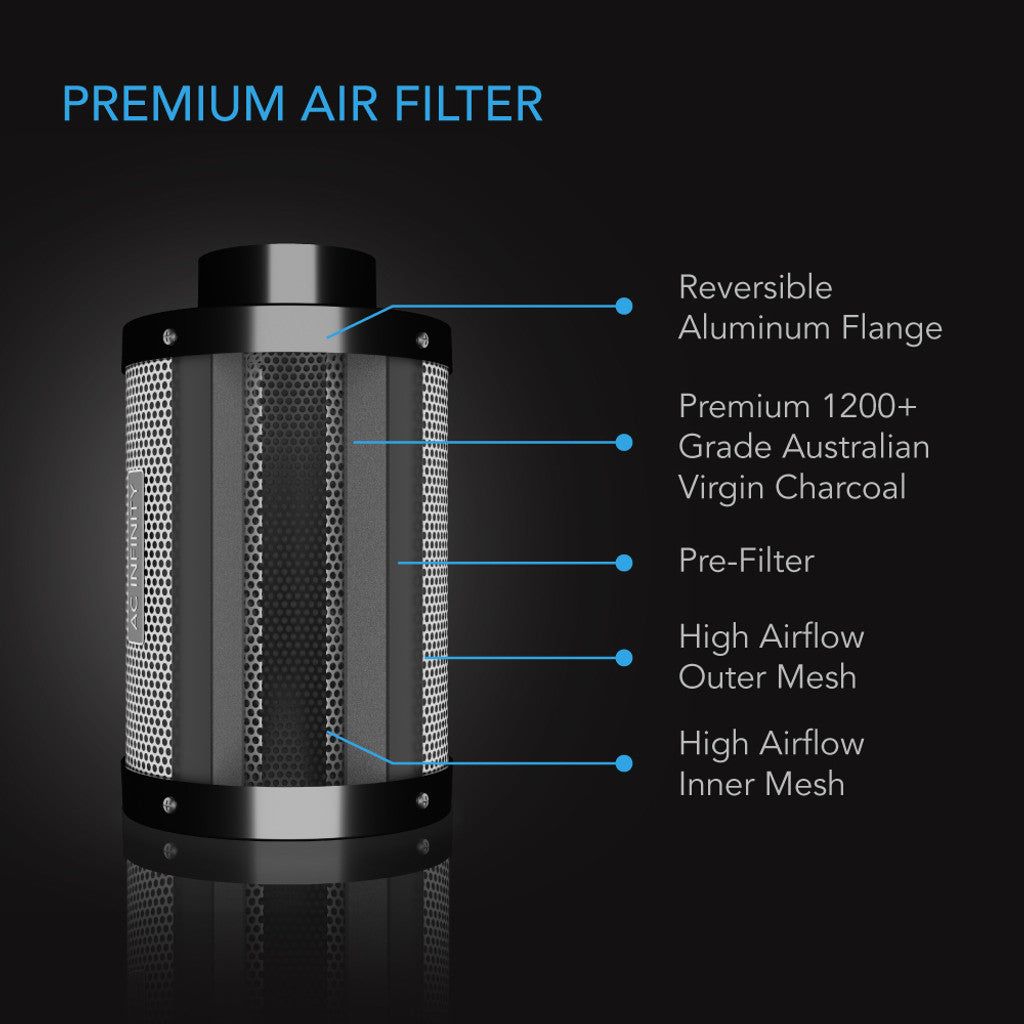

Pair the CLOUDLINE inline fan with a carbon filter to effectively block odors from seeping out of your grow tent. Its 38mm thick carbon bed is made up of premium Australian activated charcoal with a 1200+ IAV rating and RC412 microporosity. This enables the carbon filter to adsorb the most odor molecules for up to 33% longer than other inline filters. Use with the included prefilter and reversible flanges (to flip the carbon bed) can further extend its lifespan. The heavy-duty build of AC Infinity air filtration kit consists of aluminum flanges and a galvanized steel mesh to allow 100% air passthrough.

Ducting

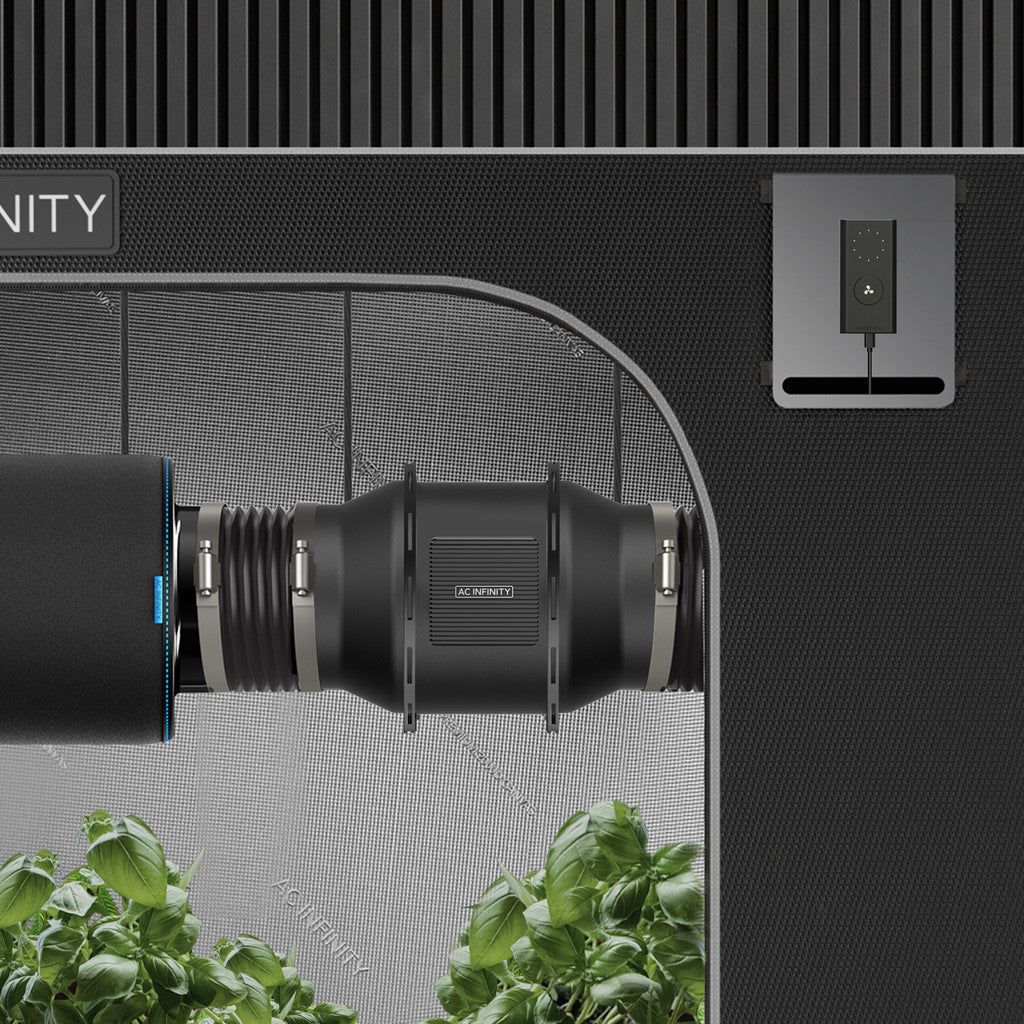

Install flexible ducting to connect your inline fan and carbon filter with your grow tent and route stale and odorous air away. Each included set features four layers of protection that resist tears and leaks, bound by internal steel wires to retain its shape. The outer layers are composed of dual PVC thermoplastic to protect the inner layers from cuts and tears and prevent air leakage. These inner layers are made up of flame-resistant aluminum to protect against wear and tear due to warmer airflow. 25 feet of ducting gives you the flexibility to customize the length of your ductwork to fit your application.

An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.
Features the CLOUDLINE inline fan with speed controller, delivering silent and efficient performance.
Carbon filter with prefilter cloth uses 1200+ IAV activated charcoal for high efficacy odor blocking.
Four-layer flexible ducting connects the inline fan and filter to your grow tent to direct airflow.
Kit Duct Size: 8” | Fan Airflow: 724 CFM | Noise 42 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	Air Filtration Kit 8"
Product Model	AC-FKS8
UPC Code	819137022072
Product Manual
Product Manual	PDF

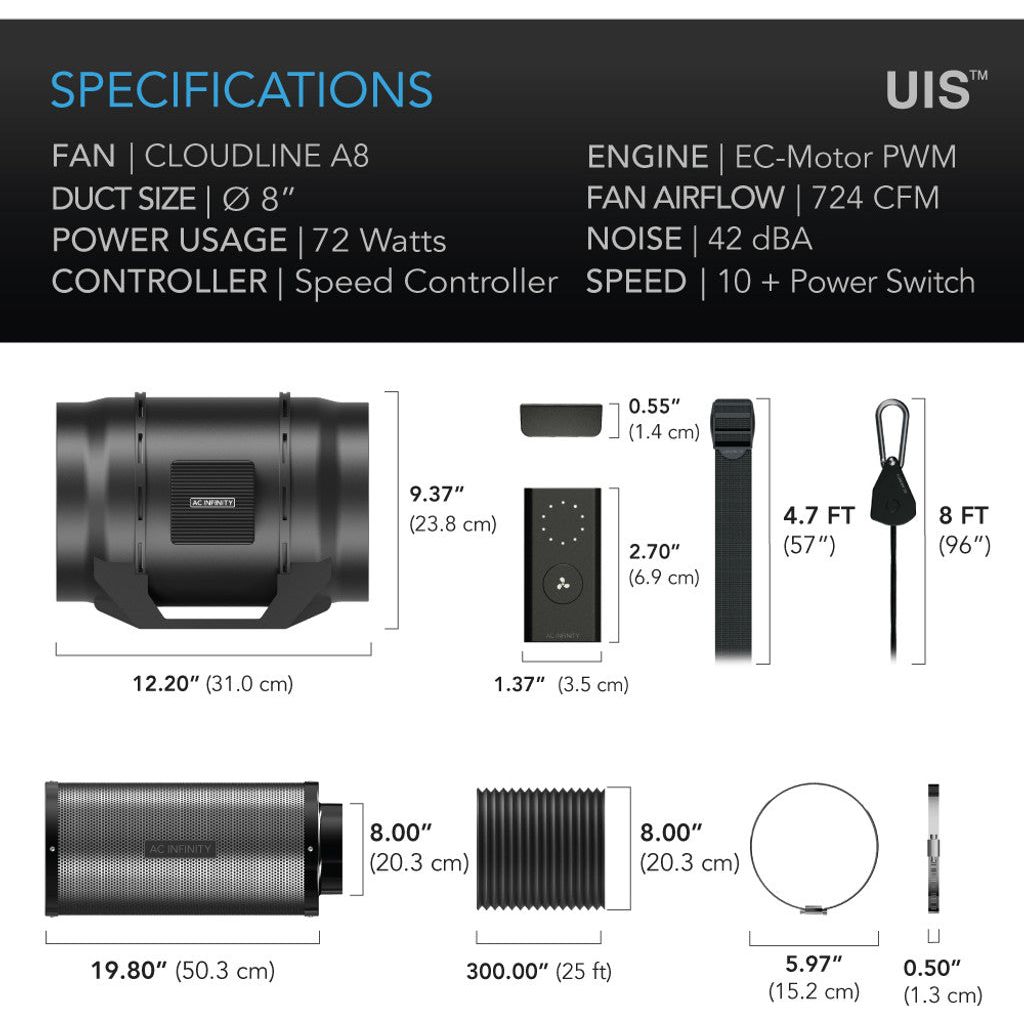

Product and Mounting Dimensions - Fan Unit
Duct Size	8"
Total Dimensions	12.20 x 10 x 9.37 in. (31 x 25.4 x 23.8 cm)
Mounting Hole-To-Hole Distance	3.54 x 1.96 in. (9.0 x 5.0 cm)
Screw Hole Size	Ø 0.217 in. (Ø 0.55 cm)
Cord Length to Controller	72 in. (6 feet)
Cord Length to Plug	72 in. (6 feet)
Product and Mounting Dimensions - Controller
Total Dimensions	2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm)
Product Performance and Technical Specs - Fan Unit
Total Airflow (Fan Only)	724 CFM
Total Noise	42 dBA
Static Pressure	746 Pa
Voltage	100-240V AC
Frequency	50/60Hz
Max Power Draw	190 W
Average Power Usage	72 W
Current	2.80 A
Power Connector Type	US Plug (NEMA 1-15 Type-A)
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	CE, RoHS
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size	8"
Total Dimensions	19.8 x 10.94 in. (50.3 x 27.8 cm)
Flange Length	3.39 in. (8.6 cm)
Product Performance and Technical Specs - Carbon Filter
Flange Material	Aluminum
Flange Design	Reversible
Mesh Material	Galvanized Steel
Carbon Type	Australian Virgin RC412
Carbon Grade	1200+ IAV
Carbon Thickness	38mm
Maximum Airflow	770 CFM
Product Dimensions - Ducting
Ducting Size	8 in. (15.2 cm)
Length	300 in. (25 ft)
Product Performance and Technical Specs - Ducting
Outer Layer	PVC Thermoplastic
Inner Material	Aluminum Foil
Internal Structure	Spiral Steel-Wire

AC Infinity Air Filtration Kit 8”, Inline Fan with Speed Controller, Carbon Filter & Ducting Combo

Name: AC Infinity Air Filtration Kit 8”, Inline Fan with Speed Controller, Carbon Filter & Ducting Combo
Brand: ac infinity
SKU: AC-FKS8
Price: 279.0 USD
Availability: OutOfStock

by ac infinity

SKU AC-FKS8

In stock | Shipping ETA: to

Sold out

$279.00

Availability: Out of stock

Quantity
