AC Infinity Air Filtration Kit 4”, Inline Fan with Speed Controller, Carbon Filter & Ducting Combo
![](https://cdn.shopify.com/s/files/1/0771/7932/2665/files/8_dc7cb9a0-8eb8-4fb8-bc73-890ae51f5af9.jpg?v=1724986932)
Product Description

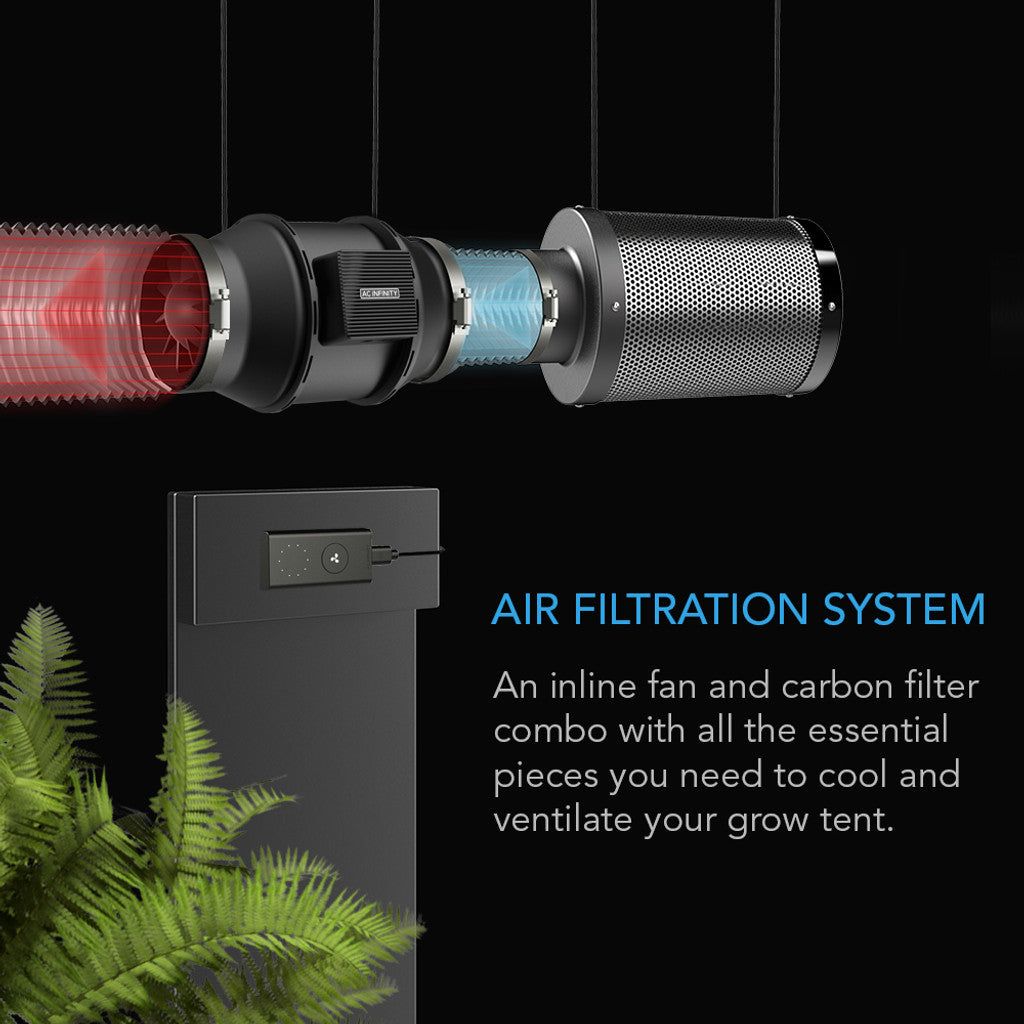

Easily ventilate your grow space with this AC Infinity Air Filtration Kit 4”, featuring the CLOUDLINE Series

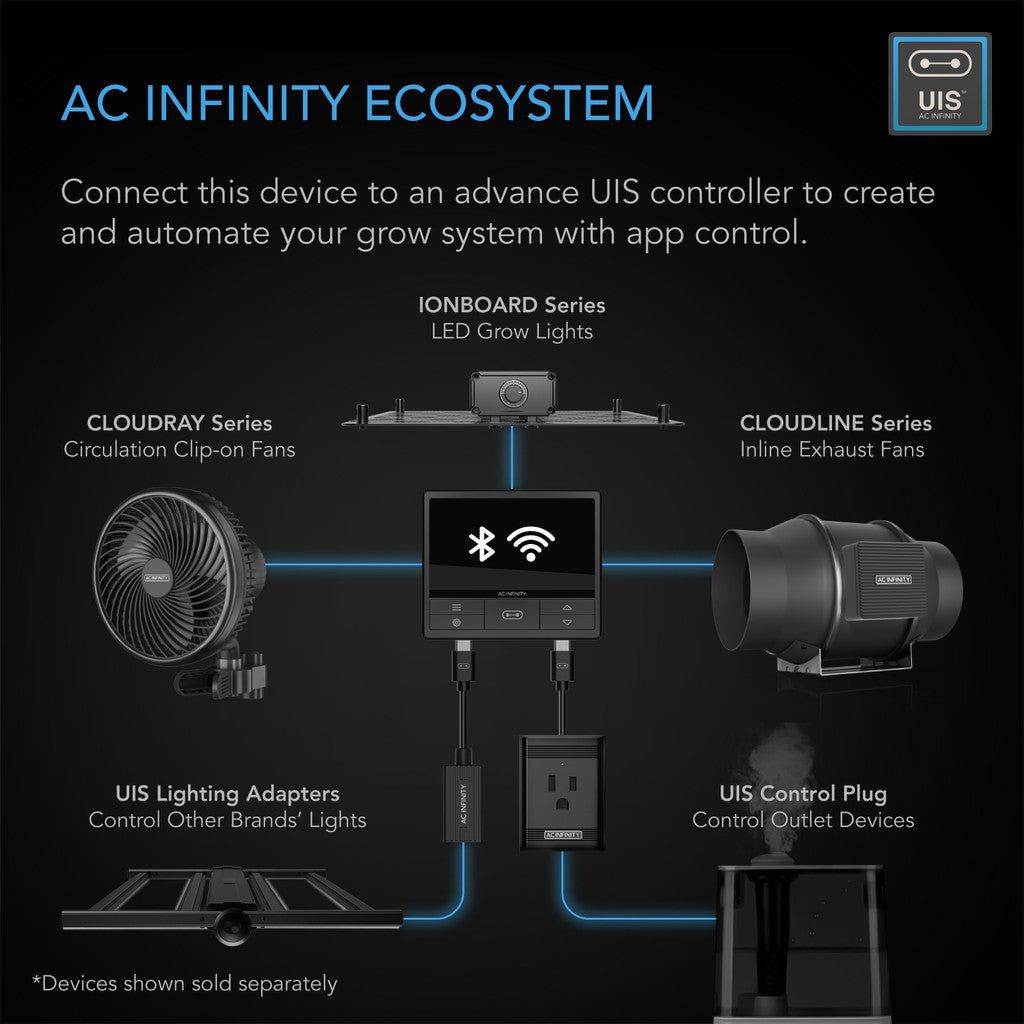

fan and carbon filter with Australian virgin charcoal, along with essential components like flexible ducting and accessories. Designed to work with other UIS™ platform grow devices and smart controllers for hassle-free setup and an ideal environment.
Inline Fan

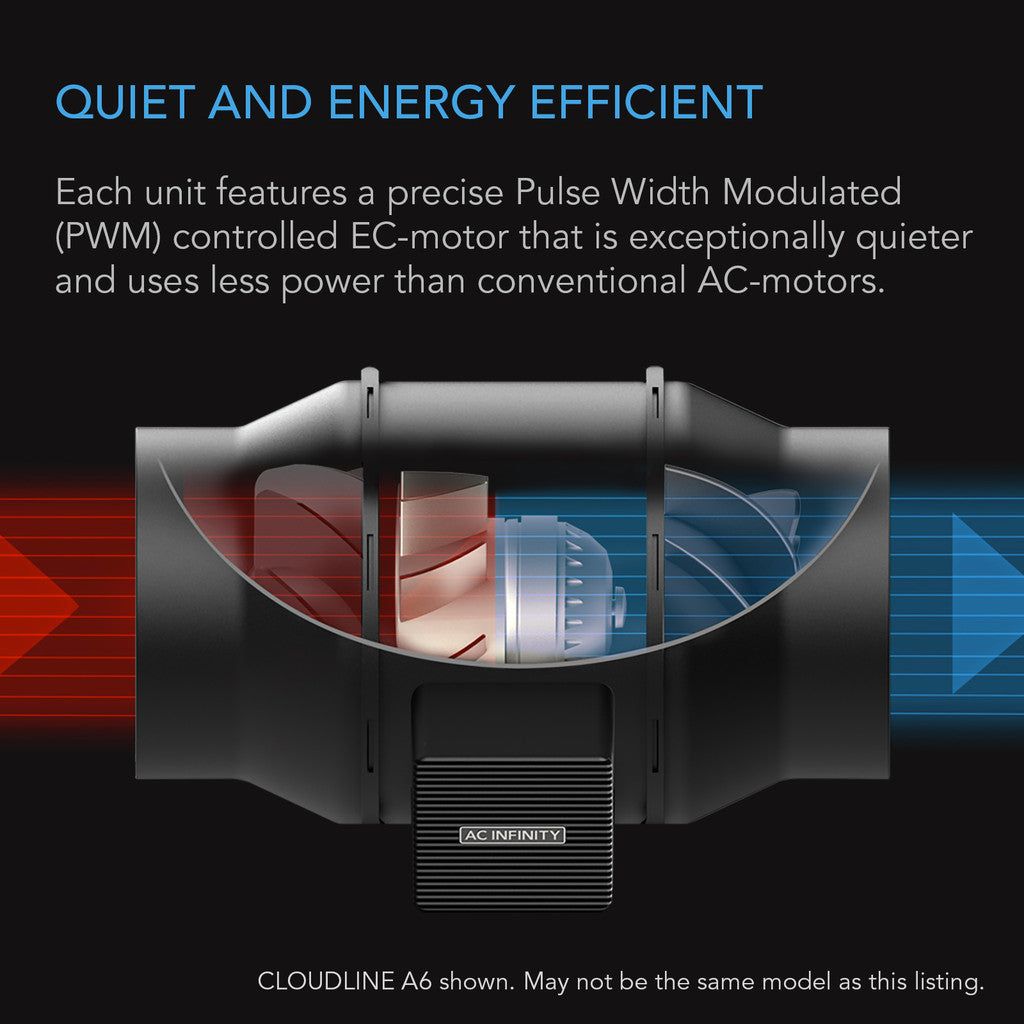

Headlining the grow tent ventilation kit is the CLOUDLINE Series of inline duct fans, which includes a 10-speed fan controller. With stator blades and dual hydrodynamic wind circles, the CLOUDLINE achieves high-performance airflow in restrictive applications thanks to its mixed-flow design. The motor box, containing the fan's impeller and blades, can easily be detached from the mounted frame for effortless cleaning and maintenance. The sturdy plastic mounting base of the frame helps reduce noise from fan vibrations and allows for mounting in any direction. Featuring dual ball bearings, this inline fan has a 67,000-hour lifespan and is backed by an IP-44 rating, making it resistant to dust and splashing liquids.

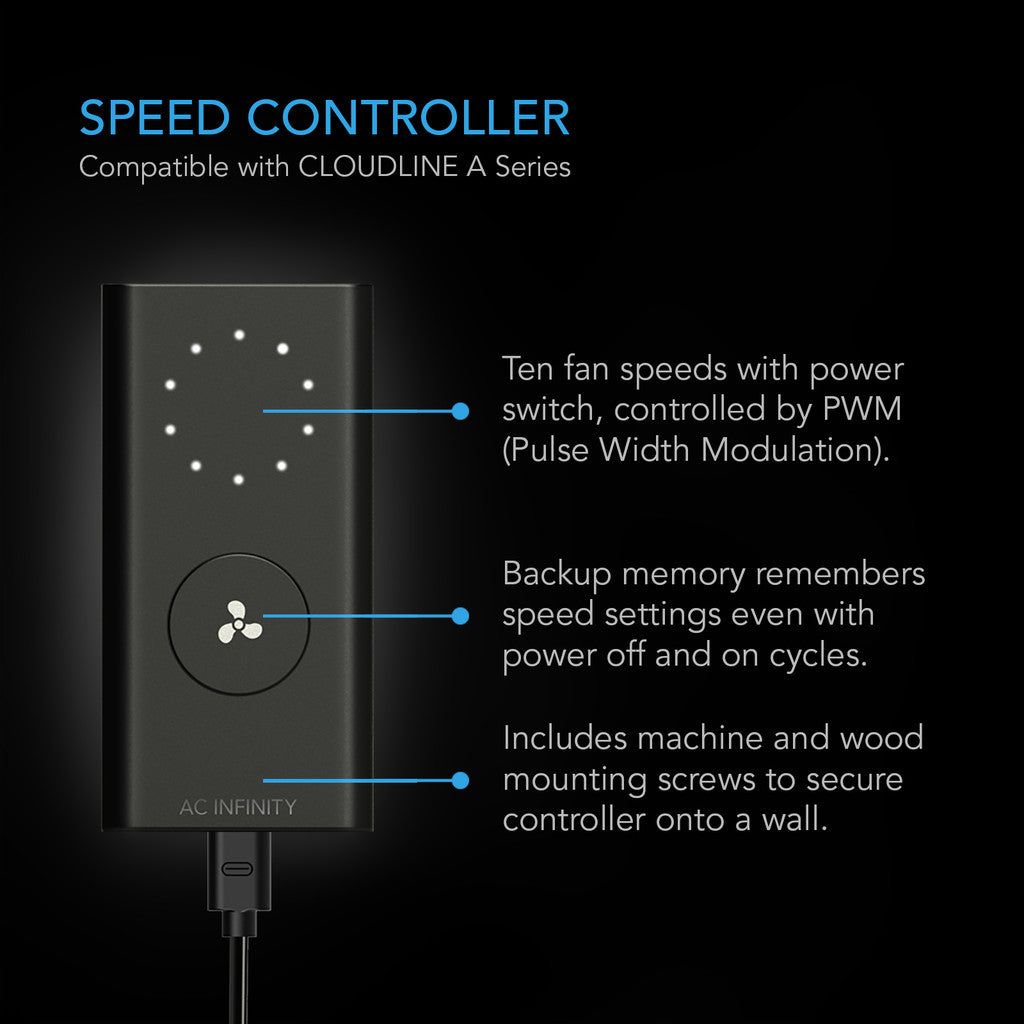

A 10-speed fan controller is paired with this inline fan to optimize airflow levels and noise in many applications. The fan’s PWM controls enable it to smoothly set fan speeds and operate at extremely low RPMs with no motor noise. Along with this wired speed controller, the CLOUDLINE is also compatible with the following controllers:
- B-Series Temperature Controller
- CONTROLLER UNC529
- CONTROLLER 69
- CONTROLLER 67
- CONTROLLER 63
Carbon Filter

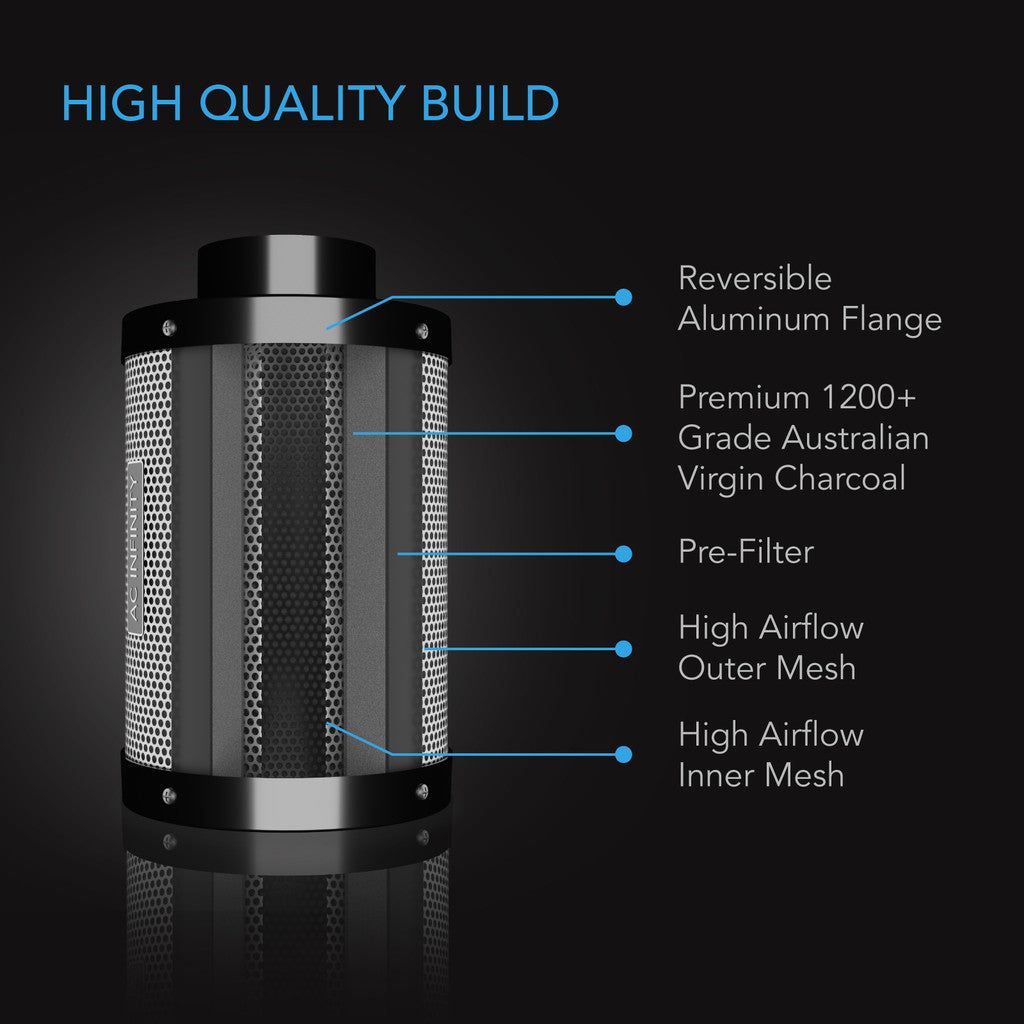

Maximize odor control in your grow tent by pairing the CLOUDLINE inline fan with a high-quality Australian activated charcoal carbon filter. With a 38mm thick carbon bed and a 1200+ IAV rating, this filter is designed to effectively adsorb more odor molecules and last up to 33% longer than other inline filters. The included prefilter and reversible flanges can further extend its lifespan, while its heavy-duty construction with aluminum flanges and galvanized steel mesh ensures optimal air flow.
Ducting

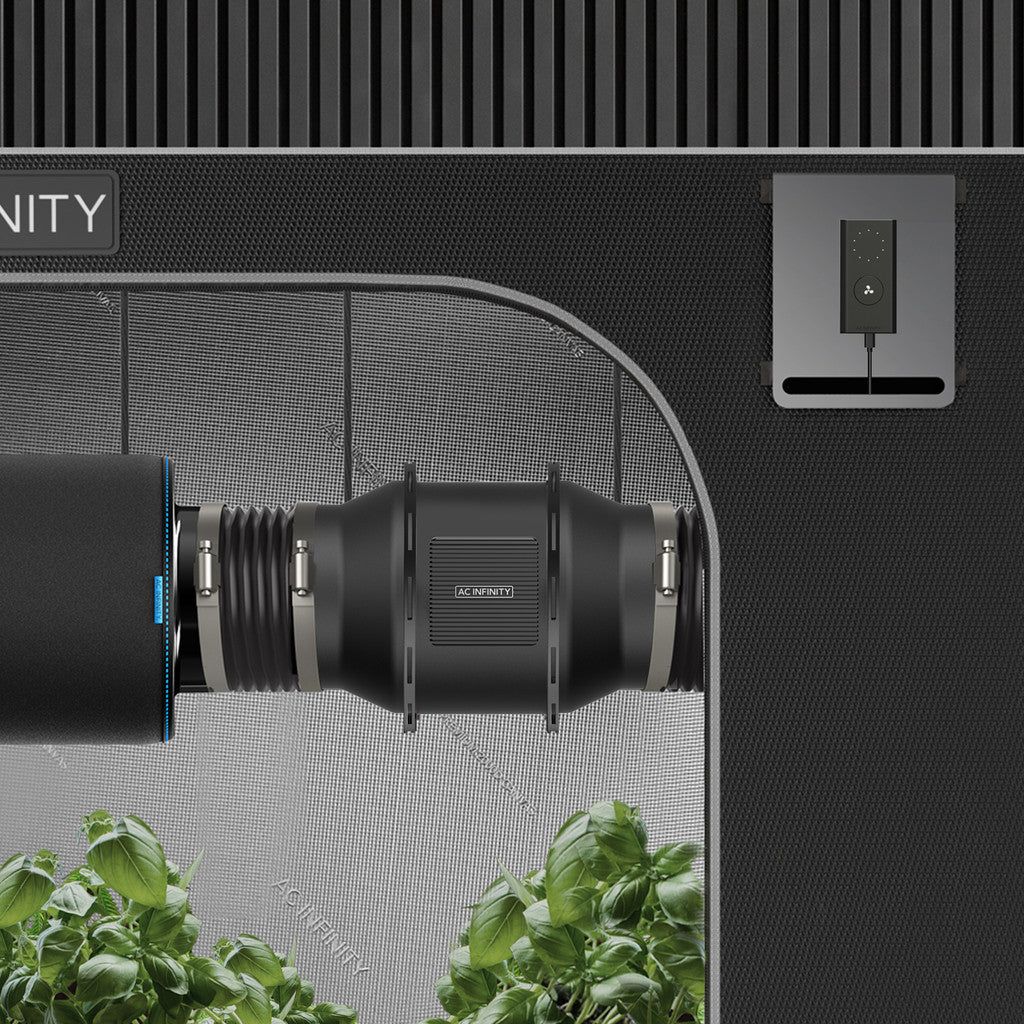

Connect your inline fan and carbon filter to your grow tent by using flexible ducting, directing unpleasant & stagnant air out. Each included set has four layers of protection, reinforced with steel wires to maintain its shape & prevent tearing & leakage. The outer layers are composed of dual PVC thermoplastic, protecting the inner layers from damage while preventing air from escaping. The inner layers consist of flame-resistant aluminum, safeguarding against wear and tear from hot airflow. With 25 feet of ducting, you can customize the length to suit your specific needs.

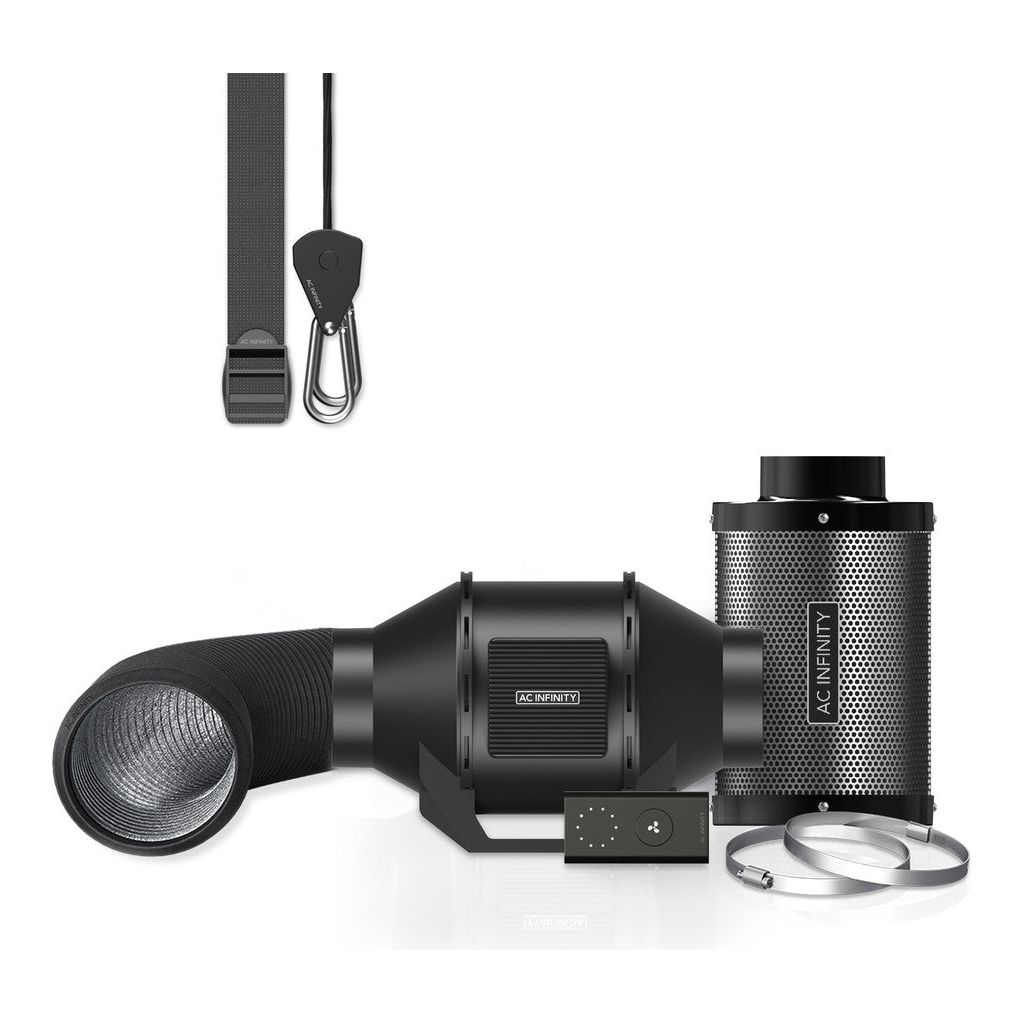

- An air filtration kit with everything you need to cool, ventilate, and control odors in your grow
space.
- Features the CLOUDLINE inline fan with speed controller, delivering silent and efficient performance.
- Carbon filter with prefilter cloth uses 1200+ IAV activated charcoal for high efficacy odor blocking.
- Four-layer flexible ducting connects the inline fan and filter to your grow tent to direct airflow.

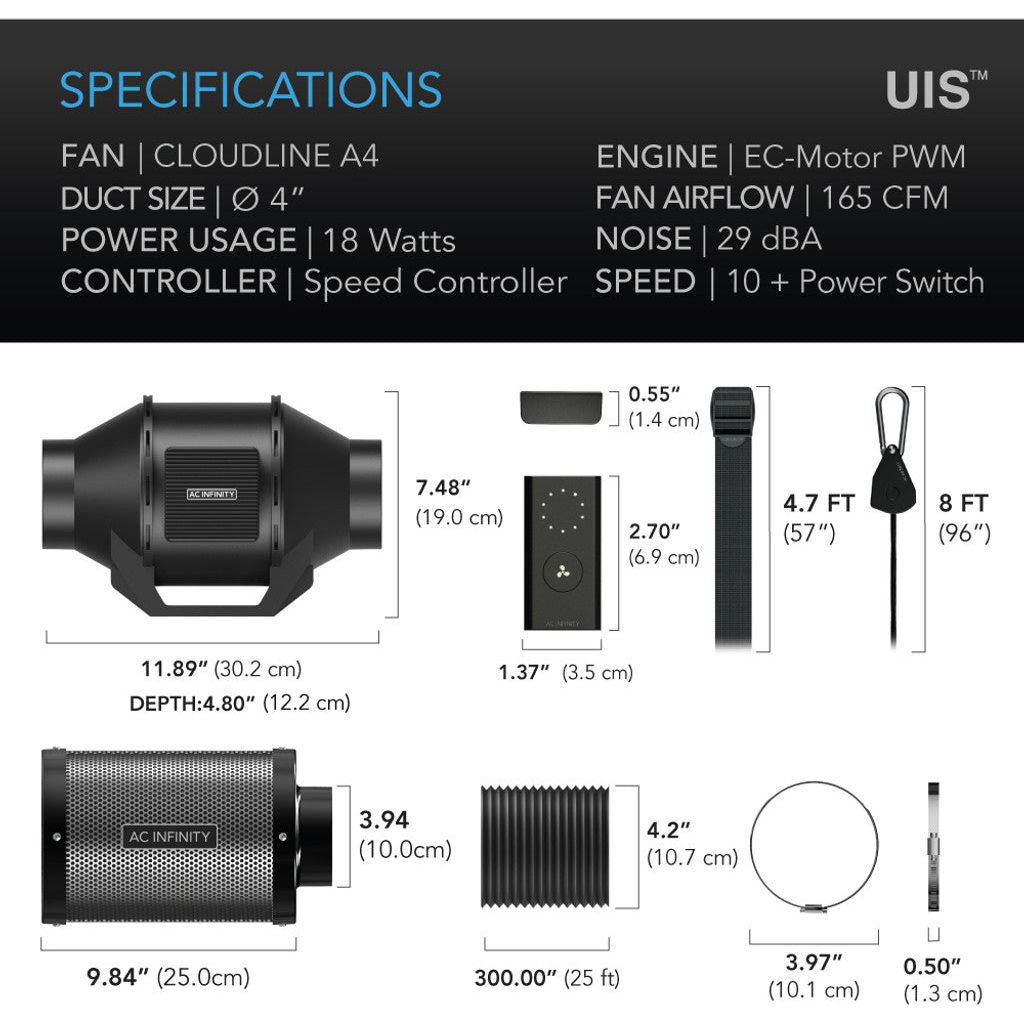

- Kit Duct Size: 4” | Fan Airflow: 165 CFM | Noise 29 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.
Product Identification |
Manufacturer |
AC Infinity Inc. |
Product Name |
Air Filtration Kit 4" |
Product Model |
AC-FKS4 |
UPC Code |
819137022065 |
Product Manual |
Product Manual
|
PDF |
Product and Mounting Dimensions - Fan Unit |
Duct Size |
4" |
Total Dimensions |
7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm) |
Mounting Hole-To-Hole Distance |
3.15 x 2.36 in. (8.0 x 6.0 cm) |
Screw Hole Size |
Ø 0.197 in. (Ø 0.5 cm) |
Cord Length to Controller |
72 in. (6 feet) |
Cord Length to Plug |
72 in. (6 feet) |
Product and Mounting Dimensions - Controller |
Total Dimensions |
2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm) |
Product Performance and Technical Specs - Fan Unit |
Total Airflow (Fan Only) |
165 CFM |
Total Noise |
29 dBA |
Max Speed |
2800 RPM |
Static Pressure |
324 Pa |
Voltage |
100-240V AC |
Frequency |
50/60Hz |
Max Power Draw |
35 W |
Average Power Usage |
18 W |
Current |
0.55 A |
Power Connector Type |
US Plug (NEMA 1-15 Type-A) |
Operating Humidity |
35 to 85% RH |
Operating Temperature |
0 to 140°F |
Ingress Protection |
IP 44 |
Fan Bearings |
Dual Ball |
Mounting Positions |
Horizontal or Vertical |
L10 Life Expectancy |
67,000 Hours |
Fan Quality Approvals |
CE, RoHS |
CE Certification (Whole Product)
|
PDF |
RoHS Cert. (Whole Product)
|
PDF |
Product and Mounting Dimensions - Carbon Filter |
Duct Opening Size |
4" |
Total Dimensions |
13.35 x 6.97 in. (33.3 x 17.7 cm) |
Flange Length |
1.46 in. (3.7 cm) |
Product Performance and Technical Specs - Carbon Filter |
Flange Material |
Aluminum |
Flange Design |
Reversible |
Mesh Material |
Galvanized Steel |
Carbon Type |
Australian Virgin RC412 |
Carbon Grade |
1200+ IAV |
Carbon Thickness |
38mm |
Maximum Airflow |
210 CFM |
Product Dimensions - Ducting |
Ducting Size |
4 in. (10.2 cm) |
Length |
300 in. (25 ft) |
Product Performance and Technical Specs - Ducting |
Outer Layer |
PVC Thermoplastic |
Inner Material |
Aluminum Foil |
Internal Structure |
Spiral Steel-Wire |
