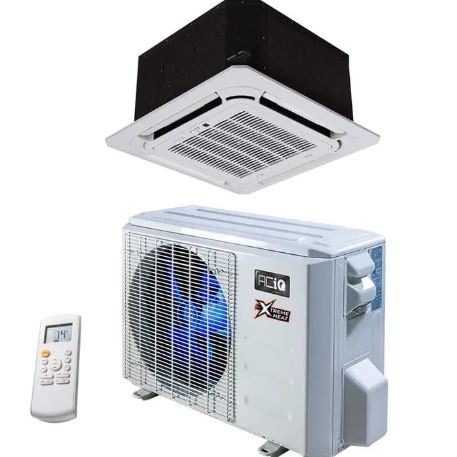

The ACiQ Platinum series offers ultra-high efficiency heating and cooling at an affordable price point. With SEER ratings reaching up to 25 and HSPF ratings up to 13, you can enjoy exceptional performance and maximum efficiency typically found in higher-cost systems.

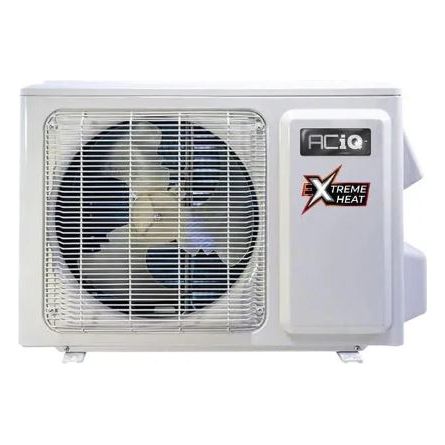

12,000 BTU ACiQ Platinum Series Single Zone Condenser w/ Extreme HeatThe ACiQ Platinum series incorporates Extreme Heat technology, allowing for continuous heating even in temperatures as low as -22 degrees outside. With high SEER and HSPF ratings, this system ensures maximum efficiency for both cooling and heating your space.
The ACIQ-12ZPL-HP230B Condenser, when paired with a compatible 12,000 BTU air handler, offers sufficient capacity for small to medium-sized rooms. Equipped with a dual rotary compressor and variable inverter technology, this system achieves exceptionally high efficiency ratings.
It's important to note that this equipment model does not feature quick connect line set connectors and is not intended for DIY installation. Additional installation materials such as line sets, control wire, drain hose, whip, and disconnect are available for purchase in the Accessories section. Professional assistance is required for refrigerant replenishment and line vacuuming as needed. While the automated cleaning function helps maintain the system, it's advisable to manually clean the unit's filters periodically.
Each ACiQ condenser is equipped with integrated Extreme Heat technology to optimize heat performance in extremely cold weather. The extended heat pump performance (HyperHeat) utilizes the power of inverter condenser with outdoor temperature sensing, variable refrigerant flow, and variable condenser fan speed to maximize heat extraction even in temperatures as low as -22 degrees. Additionally, every Extreme Heat ACiQ condenser features a base pan heater to prevent ice accumulation on the condenser coil during heat pump operation. Notably, ACiQ includes these technologies with every multizone condenser, whereas the competition requires additional payment for these features.
Every ACiQ product is manufactured using state-of-the-art technology, ensuring quiet and effective operation throughout its long service life. Many models feature low ambient heating and cooling capabilities, and base pan heaters are included as standard on every multi-zone condenser.
ACiQ not only provides upfront cost savings but also reduces long-term energy expenses. Each ACiQ condenser is equipped with a variable inverter twin rotary compressor, which reduces wear and enhances performance. When comparing specifications with other brands in the same price category, it becomes evident that ACiQ offers the best value.
Every aspect of ACiQ's manufacturing undergoes intelligent design to guarantee flawless performance for years. The low friction, variable inverter twin rotary compressors provide bulletproof reliability. By registering the equipment at ACiQ.com, the warranty protection can be extended to 7 years for parts and 12 years for the compressor.

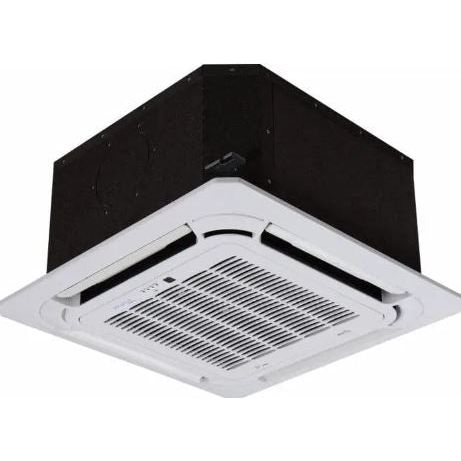

12,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler
Mini Split systems are a popular choice, but some customers may prefer not to have the air handler on their wall. ACiQ addresses this with the ACIQ-12CC-HH-MB ceiling cassette air handler, offering a more discreet appearance and centralized air distribution. These ceiling cassette air handlers deliver high-efficiency heating and cooling similar to a standard wall-mounted unit and come with a hand-held remote control. Once installed in the ceiling, only the grille is visible, providing a subtle and understated appearance.
Ceiling cassettes are designed to be flush-mounted, requiring the removal of sufficient ceiling material to create a cavity for the unit. These units are suitable for fitting between 24-inch on-center joists, but may require structural modifications to fit between 16-inch on-center joists. Additionally, ceiling cassettes come with factory-installed onboard pumps to lift the condensation produced during cooling, with the capability to lift the condensation up to 14 feet. A PVC drain system will need to be constructed to route the condensation to a suitable wastewater location. Refrigerant and wiring connections are the same as those for wall-mounted units.
Flush-mounted Ceiling Cassettes give you a sleek, low-profile look for any ductless setup. You can mount them right in the center of the room to blow conditioned air in four directions, with return air pulled in through the middle. Plus, they come with a built-in condensation pump straight from the factory.
Every ACiQ system is built to hit your set temperature fast and keep it there, regardless of the weather outside. Both indoor and outdoor units run whisper quiet, so ACiQ won't disturb your peace and quiet.
12,000 BTU ACiQ Platinum Series Single Zone Condenser w/ Extreme Heat | |
---|---|
SKU | ACIQ-12ZPL-HP230B |
Weight (in lbs) | 79.370000 |
AHRI Certificate Number | 210857316 |
Brand/Manufacturer | ACiQ |
HSPF | 8-10.4 |
HSPF2 | 10.4 |
Cooling BTU | 12,000 BTU |
Heating BTU | 12,000 BTU |
Maximum CFM | 1324 |
Decibel Level (dBA) | 56 |
Electric Heat | Heat Pump |
Energy Star | Yes |
Refrigerant | R410A |
SEER1 (Efficiency) | 25 |
SEER2 (Efficiency) | 22 |
EER | 14 |
Electrical | 208/230V | 1 Phase | 60 Hz |
Max Breaker Size | 15 |
Min. Breaker Size | 15 |
Tonnage | 1.0 Ton |
BTU/Tonnage | 12,000 BTU/1 Ton |
Min/Max Outdoor Temp for Heating | -22~75 F / -30~24 C |
Min/Max Outdoor Temp for Cooling | -22~122 F / -30~50 C |
Zone Compatibility | Single Zone |
Certification | Energy Star, NEEP, UL AHRI |
Height | 21.81" |
Width | 31.69" |
Depth | 12.99" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources |
|
Safety Information | PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. |
12,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler | |
SKU | ACIQ-12CC-HH-MB / ACIQ-CC-GRILLE |
Weight (in lbs) | 41.010000 |
Brand/Manufacturer | ACiQ |
Controller | Wireless Included |
Cooling BTU | 12,000 BTU |
Heating BTU | 12,000 BTU |
Maximum CFM | 335.29 |
Decibel Level (dBA) | As low as 31.5 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.45 gal/hr |
SEER2 (Efficiency) | 22.3 |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Max Breaker Size | 15 |
Min. Breaker Size | 15 |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini-Split Type | Ceiling Cassette |
Zone Compatibility | Multi Zone |
Height | 10.25" |
Width | 22.5" |
Depth | 22.5" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources | |
