MRCOOL Advantage 3rd Gen 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump, A-09-HP-230B

by MRCOOL
SKU A-09-HP-230B
In stock | ETA: to
Save $205.00
Original Price $983.00
Current Price $778.00

Notify me when back in stock

FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

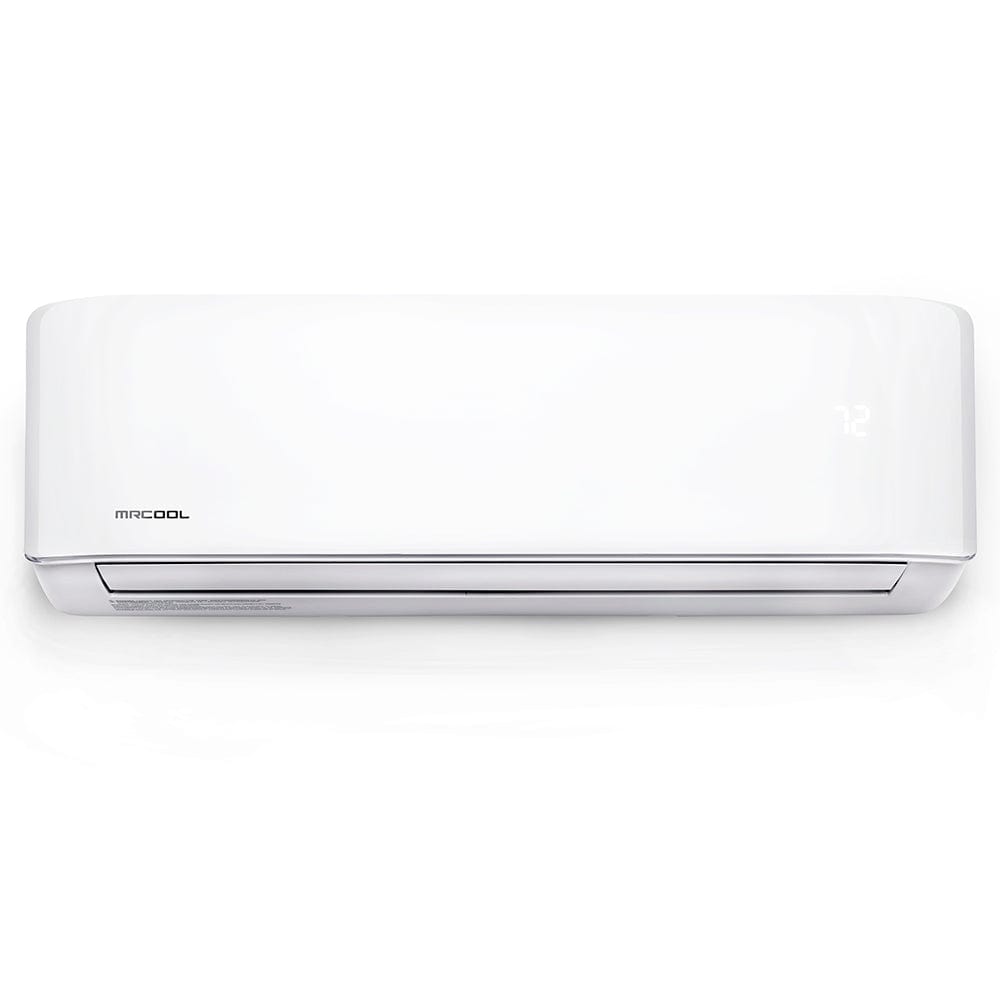

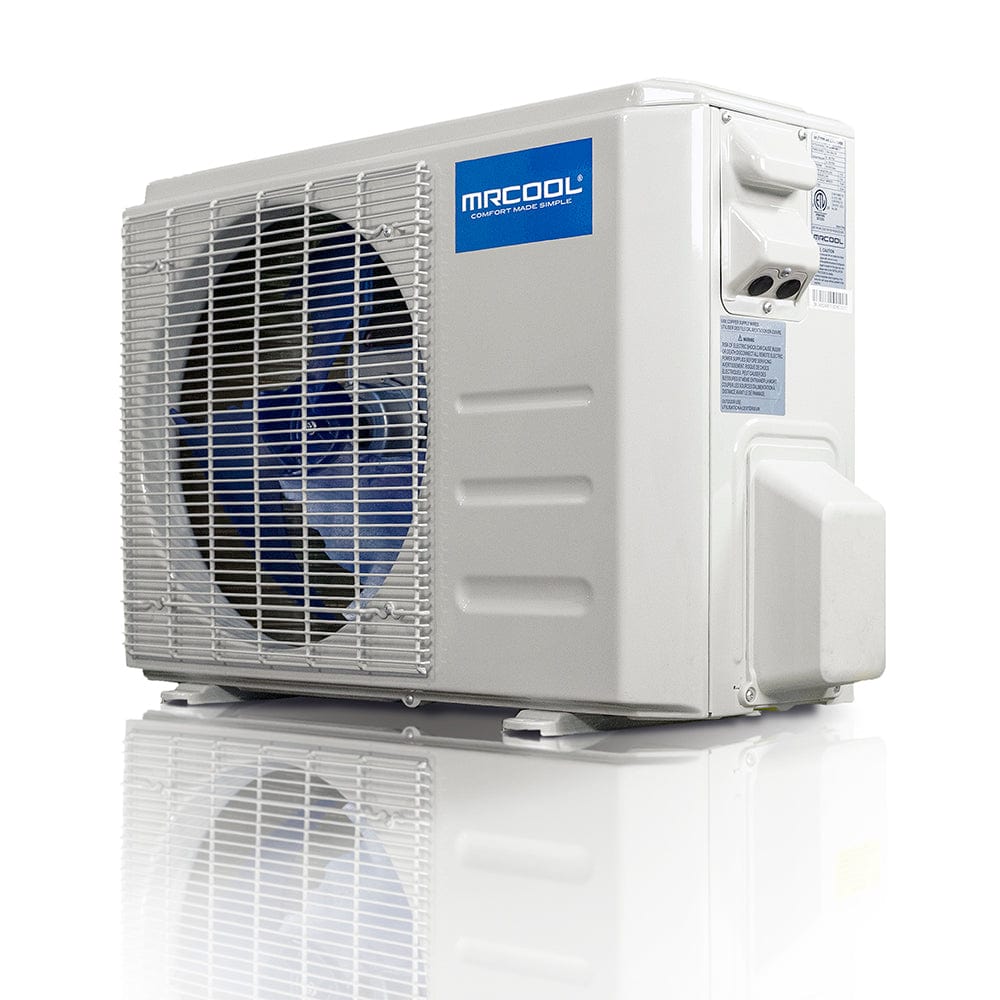

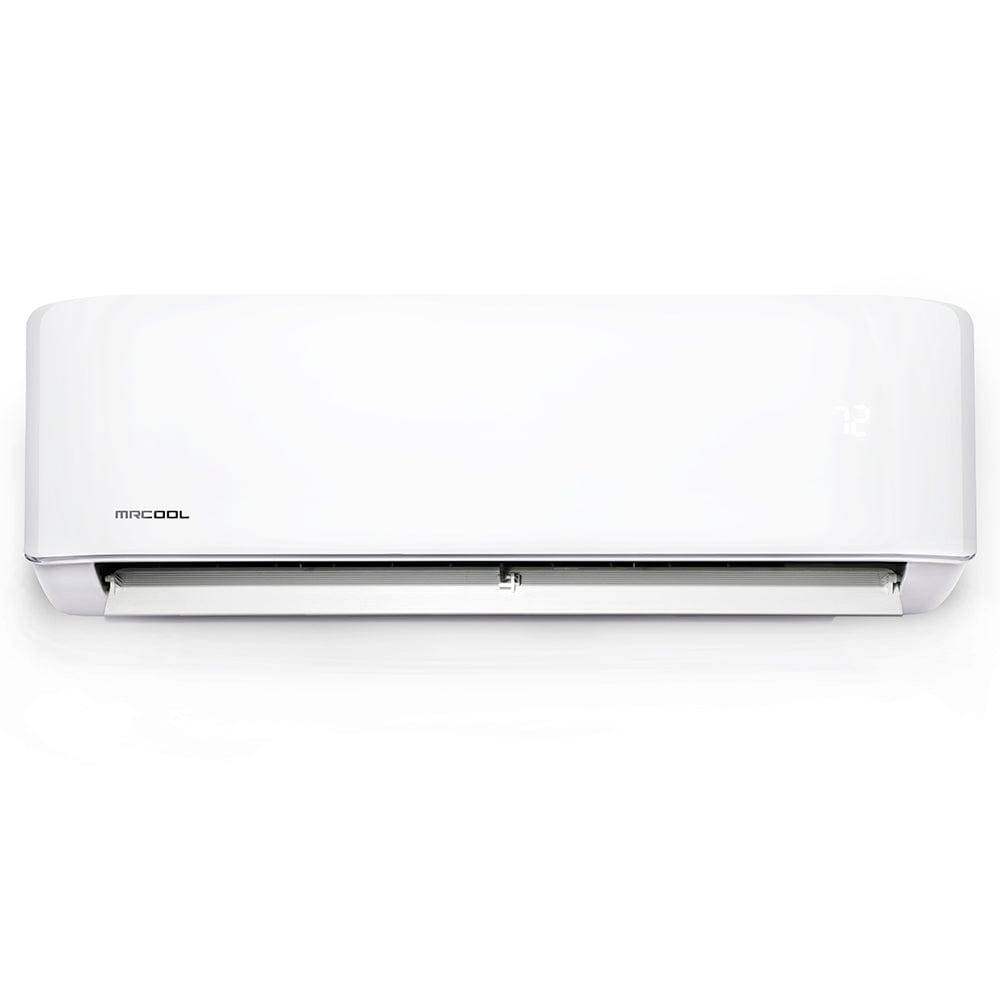

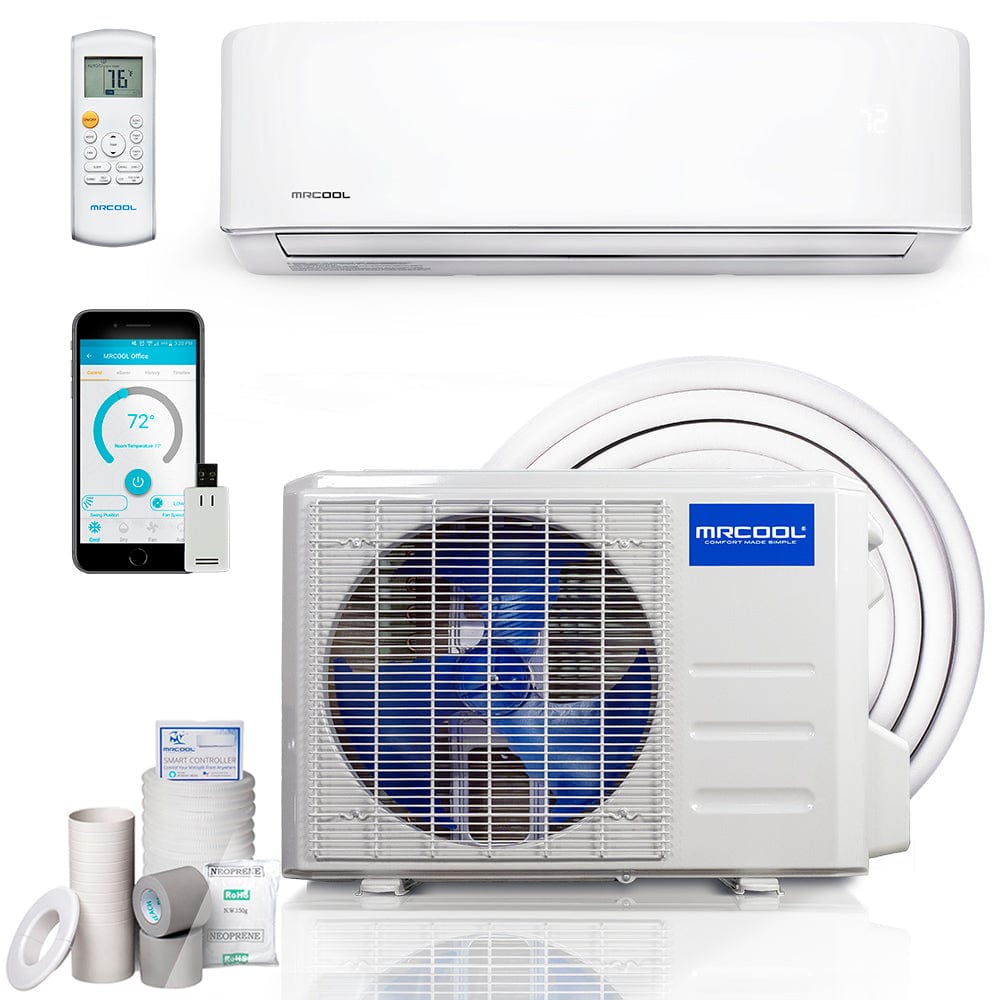

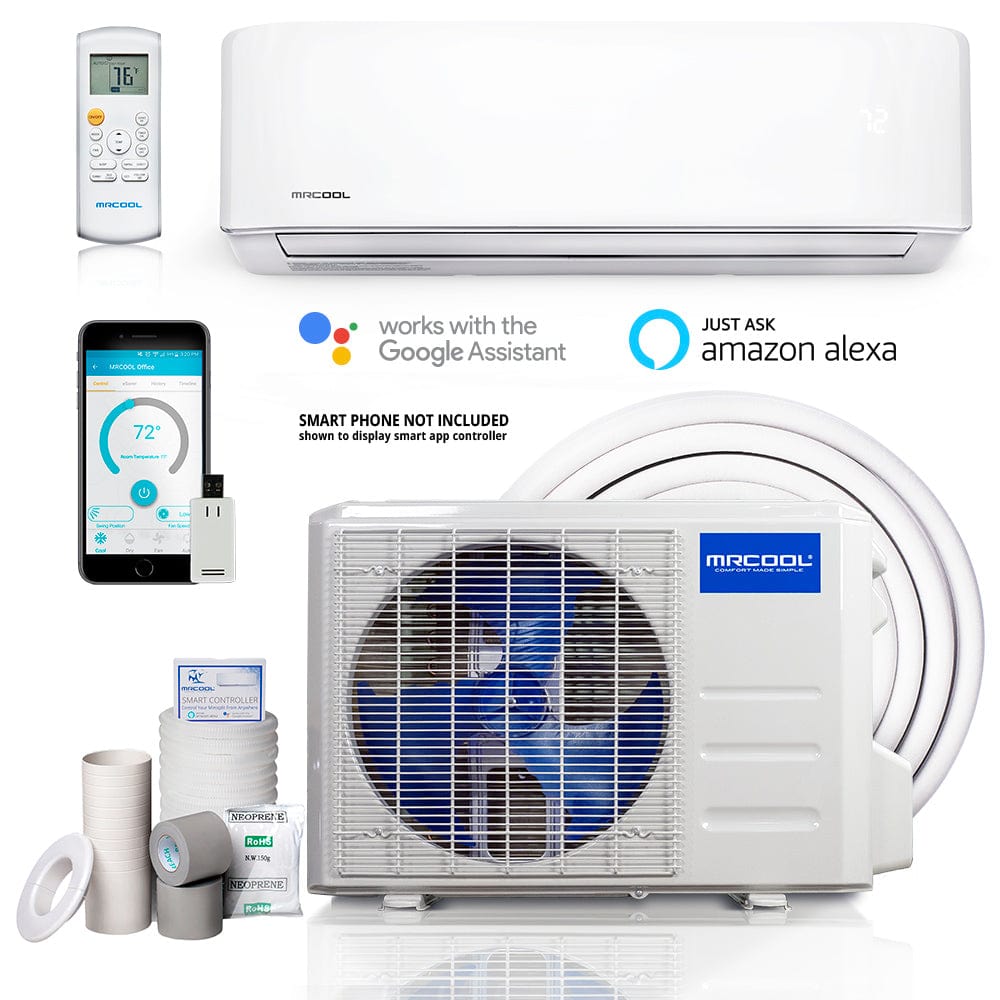

MRCOOL Advantage 3rd Gen 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump


This system is meant to be installed by a HVAC technician. The newly designed 3rd generation Advantage Series, with improved efficiency ratings up to 18 SEER, delivers high performance comfort from the moment it's activated. And its competitive price makes it a consumer favorite that's tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.

Key Features

  • Installation kit included
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Installation by a licensed professional required where applicable
  • 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, and auto restart functions
  • Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

PRODUCT SPECIFICATIONS:

Product Dimensions 58.74"W x 19.17"D x 33.27"H
Product Weight 83.8 lbs
Condenser Dimensions 30.31"W x 11.81"D x 21.85"H
Condenser Weight 66.8  lbs
Air Handler Dimensions 28.43"W x 7.36"D x 11.42"H
Air Handler Weight 17 lbs
Freight Class 300
Mount Type Wall
Unit Type Mini-Split
SEER 18
EER 11
HSPF 9.5
CFM 309/285/187
Tonnage 3/4
Cooling Capacity 9000 BTU
Heating Capacity 9800 BTU
Voltage Requires a minimum of 208V-230V/60HZ/10-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Color White
Phase 1
Max Fuse Breaker 15 A
Min Circuit Ampacity 10 A
Max Coverage Area 375 sq ft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 28.2 oz
Decibel Rating 23/-/36 dBA
Decibel Rating Low 23 dBA
Decibel Rating High 36 dBA
Air Flow Direction 4-Way
Speed 4
Oscillation Yes
Inverter Yes
Min Ambient Heat 5 Degrees F
Line Set Length 16ft
Liquid Line Fitting 3/8 Inches
Liquid Line Size 1/4 Inches
Suction Line Fitting 1/2 Inches
Suction Line Size 3/8 Inches
Control Type LED
Filter Type Washable
Overload Protection Yes
Adjustable Thermostat Yes
Modes Quiet Mode
Fan Only
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with: iOS
Android
Includes Remote Control
Batteries
Certifications UL
CSA
ETL
Registered Warranty 1-Year Compressor, 2-Year Parts and 1-Year Remote
Contains Electronics Yes
Contains Chemicals Yes
Contains Aerosol Yes
Contains Compressed Gas Yes
Restricted States GU, PR, VI
